Schneider PC-E984-275 Modicon CPU Module for Reliable Automation Control

Product Introduction

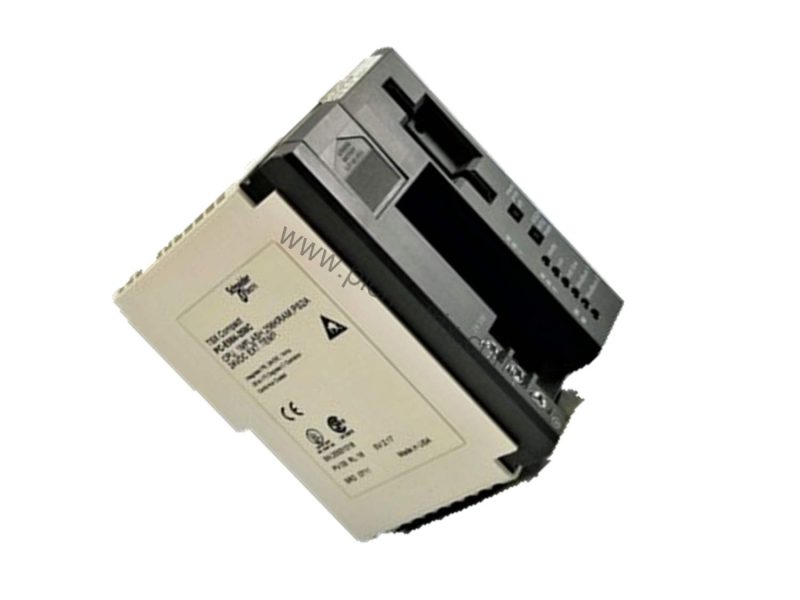

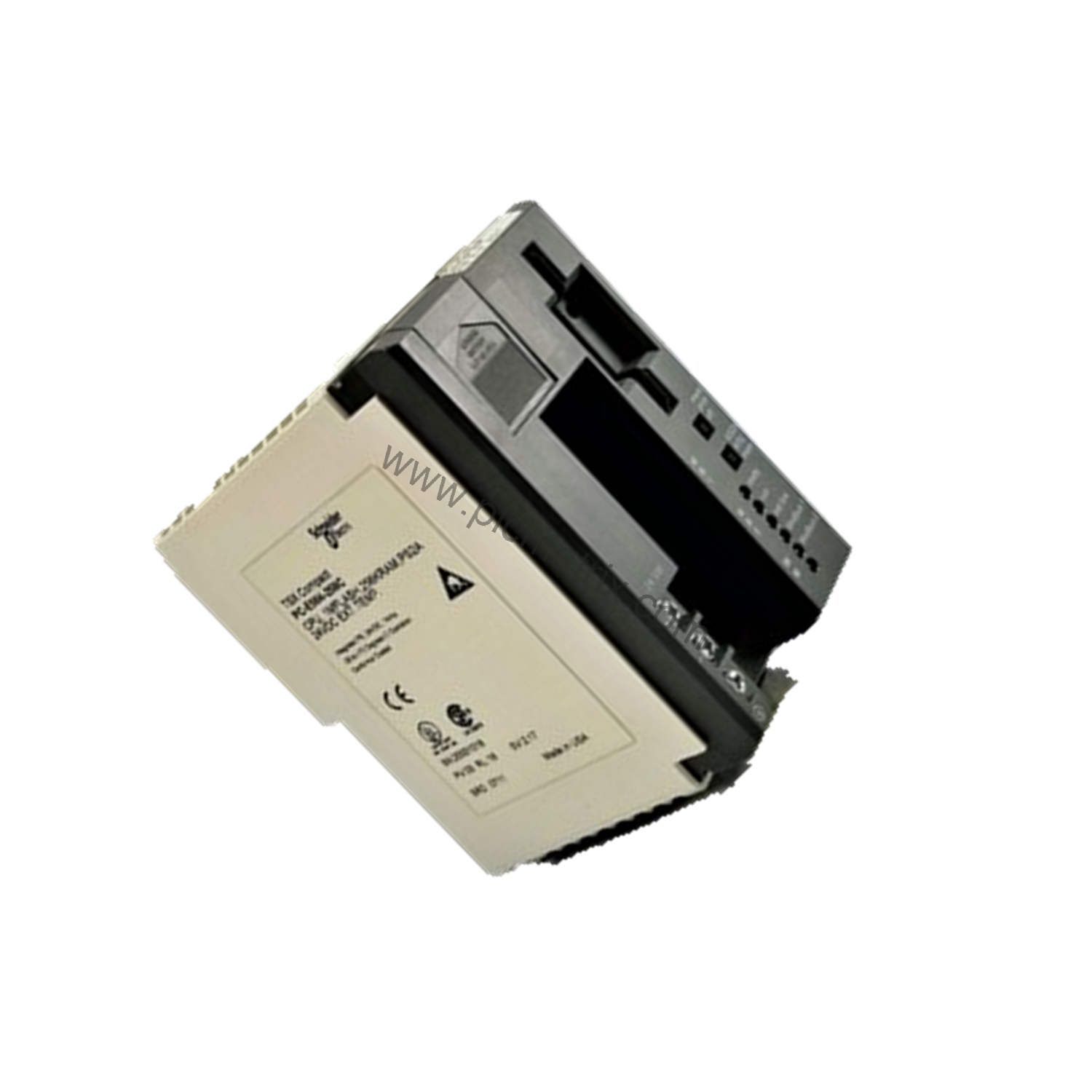

When your automation system demands a dependable central processing unit, the Schneider PC-E984-275 delivers proven performance. This CPU module belongs to the Modicon product line, a trusted name in industrial control. It operates on 24V DC and handles a current of 1 Amp, making it suitable for a wide range of factory and process applications. With 512 KB of memory and 1920 registers, the PC-E984-275 manages extensive data and logic tasks efficiently. Its design supports up to 4 racks and one I/O drop, providing a solid foundation for scalable system architectures.

Technical Specifications Breakdown

The PC-E984-275 offers several key specifications that define its capabilities. The scan time is 2.5 ms/k, which means the module processes logic and I/O updates at a consistent rate, ensuring responsive control. Local I/O totals 256 points, and the total I/O capacity reaches 512 input and 512 output points, giving you flexibility for medium-sized applications. Communication is handled through 2 Modbus ports and 1 Modbus+ port, enabling integration with various devices and networks. The module supports a maximum of 4 racks and one I/O drop, simplifying system layout. These specs make the PC-E984-275 a balanced choice for applications requiring reliable data handling and connectivity.

Industry Applications

In manufacturing environments, the PC-E984-275 excels at controlling conveyor systems, packaging lines, and material handling equipment. Its 512 KB memory and 1920 registers allow it to store complex programs and manage numerous I/O points. For example, in a bottling plant, the CPU coordinates sensors, actuators, and motor drives across multiple stations, using the Modbus ports for device communication. In water treatment facilities, the module handles monitoring and control of pumps, valves, and flow meters, with the Modbus+ port enabling high-speed data exchange between controllers. The ability to support up to 4 racks makes it easy to expand as processes grow.

Installation & Setup Guidance

When installing the PC-E984-275, begin by verifying that the power supply provides stable 24V DC and can deliver at least 1 Amp. Mount the module in a compatible Modicon rack, ensuring proper seating and locking. Connect the Modbus and Modbus+ communication cables according to your network topology, using shielded twisted-pair wiring for noise immunity. Configure the I/O drops and rack addressing via the programming software, referencing the module’s 256 local I/O and total 512/512 capacity. Always follow the manufacturer’s guidelines for grounding and surge protection to maintain reliable operation.

Maintenance & Reliability

Routine maintenance for the PC-E984-275 focuses on environmental conditions and connection integrity. Keep the enclosure clean and ensure adequate ventilation to prevent overheating. Periodically inspect all communication and I/O wiring for signs of wear or loose connections. The module’s 2.5 ms/k scan time supports consistent performance, but monitoring system loads helps avoid overextending the CPU. For long-term reliability, verify that the 24V DC supply remains within tolerance and that the 1 Amp current rating is not exceeded. Following these practices extends service life and reduces unplanned downtime.

Compatibility & Integration

The PC-E984-275 integrates seamlessly with Modicon systems and supports communication via 2 Modbus ports and 1 Modbus+ port. This allows connection to a wide range of devices such as drives, HMIs, and remote I/O modules. The module’s ability to handle up to 4 racks and one I/O drop makes it compatible with both local and distributed control architectures. When planning an upgrade or new installation, confirm that your existing Modicon backplanes and power supplies match the PC-E984-275’s requirements. For assistance with compatibility or system design, BluePLC Industrial offers expert guidance and reliable supply.

Selection Guide & Purchasing Advice

Before ordering the PC-E984-275, verify that your application’s I/O count fits within the 512/512 total and 256 local limits. Ensure your power source provides 24V DC at 1 Amp. Check that your network uses Modbus or Modbus+ protocols for direct compatibility. For systems requiring more than 4 racks or additional I/O drops, consider pairing this CPU with expansion modules. BluePLC Industrial stocks the PC-E984-275 and can help confirm availability and lifecycle status. Contact their team for current pricing and delivery options to keep your project on schedule.
