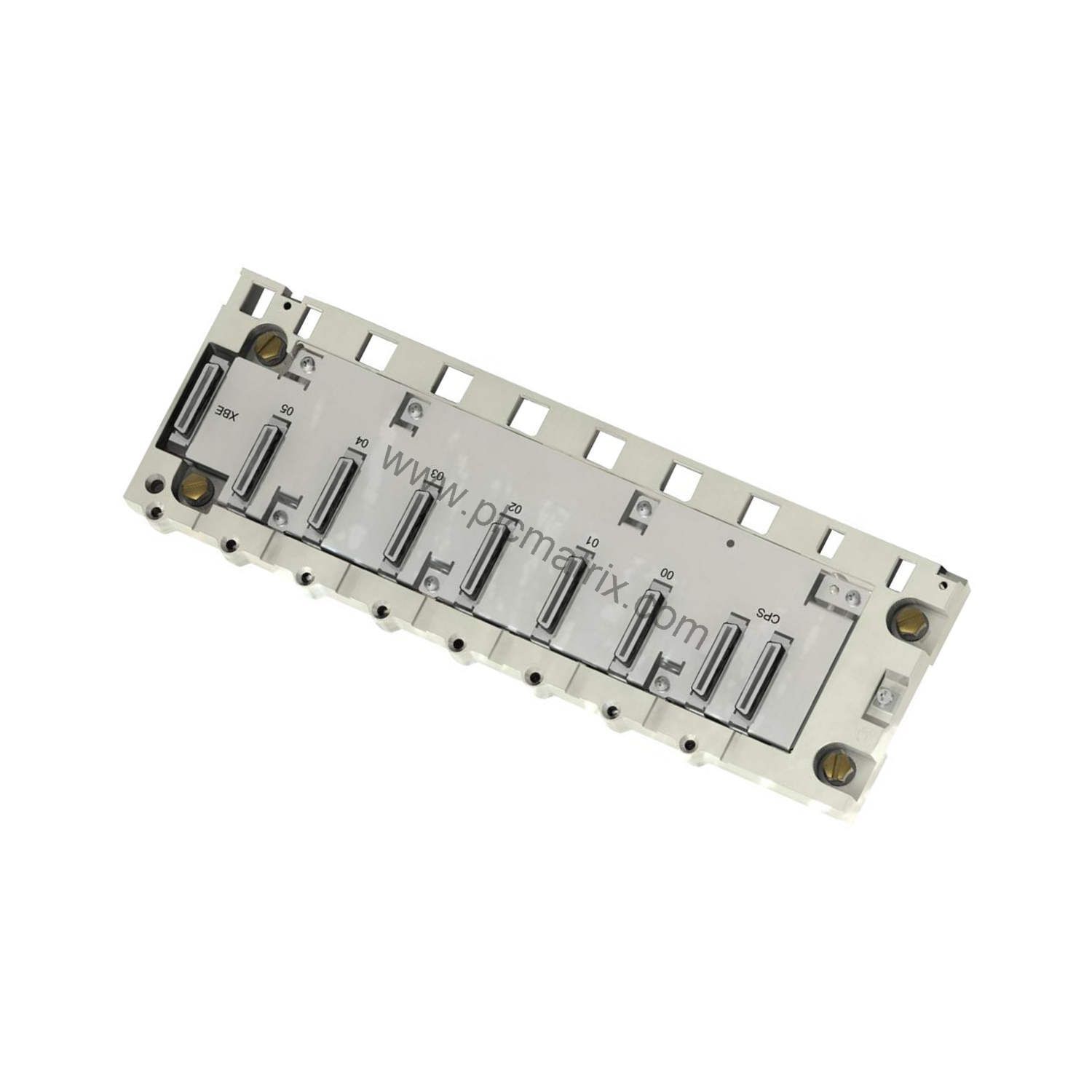

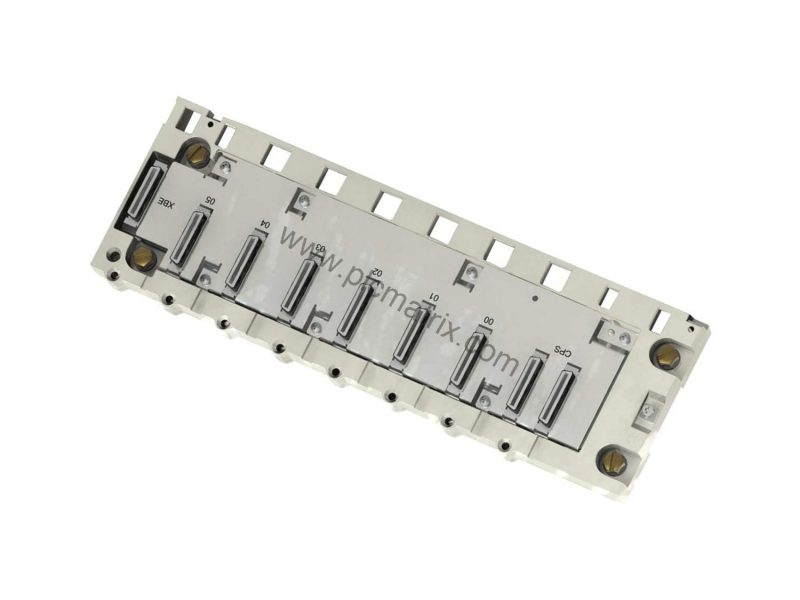

Schneider Modicon BMXXBP0600 Backplane with 6 Bus Slots for Efficient Control

Product Introduction

When building a cost-efficient Modicon control system, the BMXXBP0600 backplane from Schneider Electric provides a reliable foundation. This backplane, part of the Modicon series, features six bus X slots for connecting processors, power supplies, and I/O modules. Its low power consumption of 1.68 watts directly reduces energy costs over the system's lifespan, making it a smart choice for budget-conscious industrial projects. The BMXXBP0600 supports components like the BMXP34 processor and BMXCPS power supply, ensuring seamless integration while keeping operational expenses minimal.

Technical Specifications Breakdown

The BMXXBP0600 delivers key specifications that impact both performance and total cost of ownership. With a power consumption of only 1.68 W, this backplane minimizes electricity usage, lowering utility bills in continuous operation. The six bus X slots allow flexible module placement, reducing the need for additional backplanes and associated hardware costs. Its compact dimensions—height 103.7 mm, width 307.6 mm, and depth 0.7 in—enable space-efficient panel layouts, saving enclosure space and material expenses. The weight of 0.79 kg (2.06 lbs) simplifies handling and reduces shipping costs. Electrical connection via one expansion module connector (XBE) streamlines cabling, cutting installation time and labor costs. The backplane operates in ambient temperatures from 32 to 140 °F (0 to 60 °C) and relative humidity of 10 to 95% without condensation, ensuring reliable performance in diverse environments and reducing downtime risk.

Industry Applications

In manufacturing automation, the BMXXBP0600 backplane supports cost-effective system expansion. For example, a packaging line using a Modicon controller can add I/O modules via the six slots without purchasing a separate enclosure, lowering capital expenditure. In process control applications, such as water treatment plants, the backplane's IP20 degree of protection and adherence to standards like EN/IEC 61131-2 ensure reliable operation in clean indoor environments, minimizing maintenance costs. The backplane's compatibility with the BMXP34 processor and BMXCPS power supply allows upgrades without replacing the entire chassis, extending equipment life and improving ROI.

Installation & Setup Guidance

Mounting the BMXXBP0600 is straightforward and cost-saving. Secure the backplane to a panel using four M4, M5, or M6 screws, which are readily available and inexpensive. Ensure the mounting surface is flat and clean to maintain proper alignment. Connect the expansion module via the XBE connector to integrate additional modules without complex wiring. Position the backplane within the specified temperature range (0 to 60 °C) and avoid condensation-prone areas to prevent performance issues. This simple installation reduces labor time and associated costs, making it ideal for both new builds and retrofits.

Maintenance & Reliability

Routine maintenance of the BMXXBP0600 focuses on environmental control to maximize reliability and minimize costs. Inspect the backplane periodically for dust accumulation, which can affect thermal performance in the 0 to 60 °C operating range. Keep relative humidity between 10 and 95% without condensation to prevent corrosion. The IP20 protection level means the backplane is suitable for indoor use; avoid exposure to liquids or excessive debris. By following these simple steps, you reduce unplanned downtime and extend service life, directly improving total cost of ownership. Regular checks also help identify loose screw connections early, preventing intermittent faults.

Compatibility & Integration

The BMXXBP0600 integrates seamlessly with the Modicon ecosystem, supporting the BMXP34 processor and BMXCPS power supply as confirmed by product compatibility data. This compatibility allows you to build or expand a system using standard components, avoiding proprietary or costly alternatives. The backplane's six bus X slots accommodate I/O modules for analog or digital signals, enabling flexible configuration. The XBE expansion connector facilitates daisy-chaining additional backplanes if needed, though only one connector is provided. This modularity reduces upfront investment by allowing incremental expansion, aligning with cost-analysis goals. Certifications including CE, UL, CSA, and Merchant Navy ensure the backplane meets global standards, simplifying procurement for international projects.

Selection Guide & Purchasing Advice

Before purchasing the BMXXBP0600, verify your system's slot requirements: six bus X slots suit medium-sized applications. Confirm compatibility with your existing Modicon processor and power supply using the provided data. The backplane's weight of 0.79 kg and compact size make it easy to ship and handle. For reliable supply and competitive pricing, choose BluePLC Industrial, a trusted industrial automation parts supplier. Their inventory ensures fast delivery, reducing project delays and associated costs. Always check the latest lifecycle status with BluePLC Industrial before ordering to avoid obsolescence issues.
