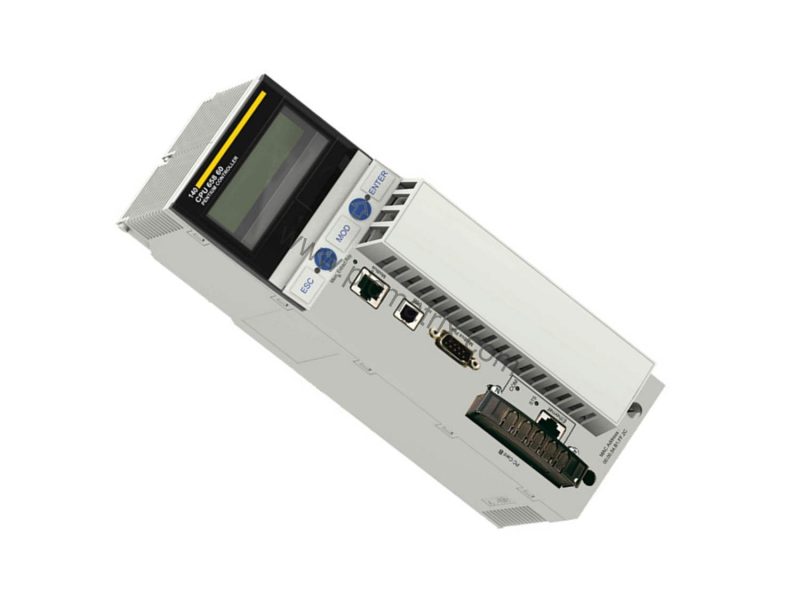

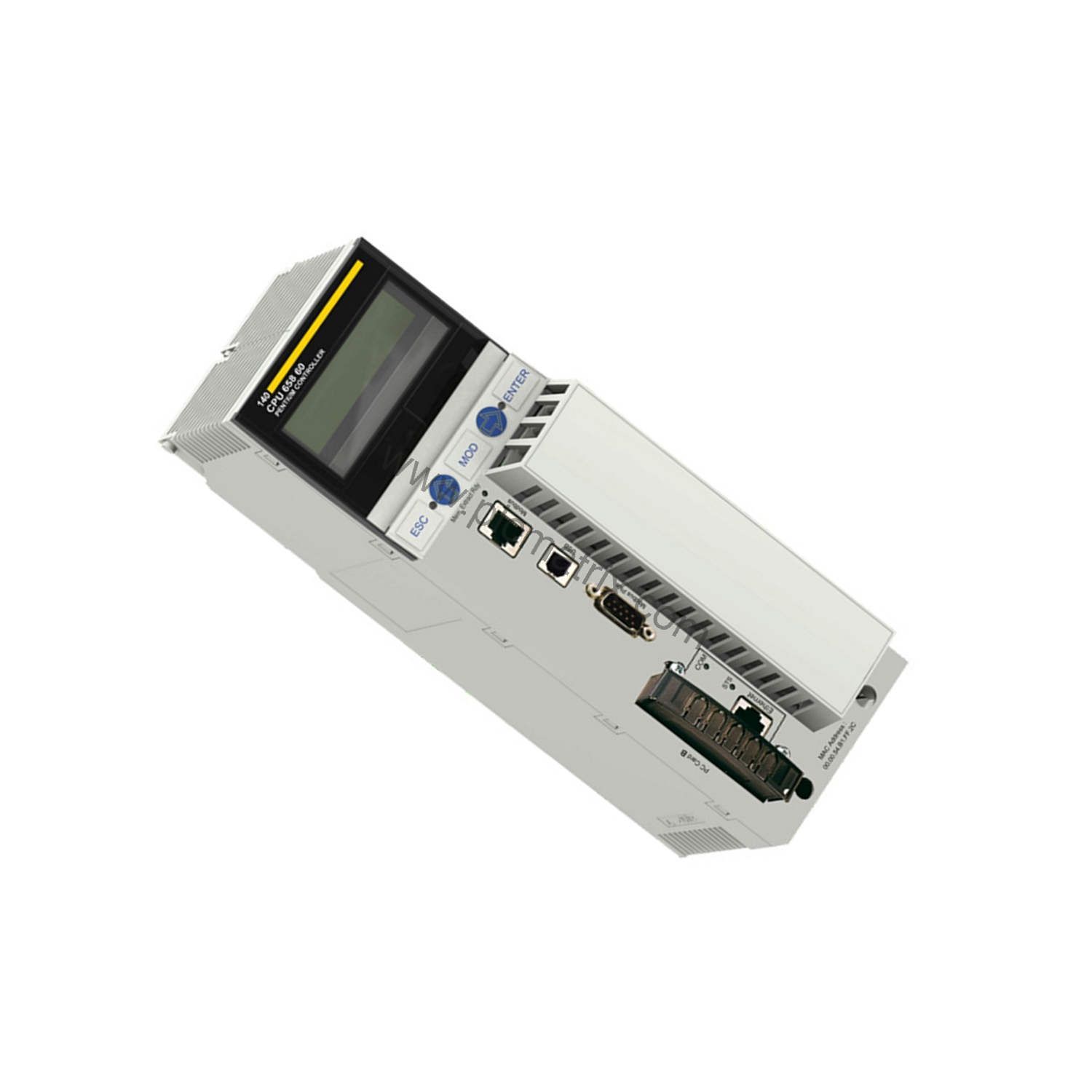

Schneider Modicon 140CPU65860 Unity Processor for Quantum Automation

Product Overview

When complex automation processes demand high performance without excessive cost, the Schneider Modicon 140CPU65860 delivers. This Unity processor, part of the Modicon Quantum automation platform, operates at a clock speed of 266 MHz and executes 30 K instructions per millisecond. With 1024 KB of built-in RAM and 704 KB of user logic memory, it handles demanding control tasks efficiently. For buyers evaluating total cost of ownership, this processor reduces programming time and accelerates throughput, directly impacting operational expenses.

Technical Specifications Breakdown

The 140CPU65860 offers a program execution speed of 30 K instructions per millisecond, which translates to faster cycle times and improved machine productivity. Its 1024 KB built-in RAM supports complex logic and data handling without external memory modules. The processor supports up to 16 slots in a rack and can manage up to 64 racks with 3,072 discrete I/O per rack, making it suitable for large-scale installations. Power consumption is only 7.2 W, supplied through the backplane at 24V DC, minimizing energy costs over the system's life. The integrated real-time clock ensures accurate time-stamping for time-sensitive processes, reducing the need for additional hardware.

Industry Applications

In manufacturing environments where uptime is critical, the 140CPU65860 provides reliable control for assembly lines, material handling, and packaging systems. Its ability to handle up to 64 racks with 3,072 discrete I/O per rack allows expansion without replacing the controller, lowering future upgrade costs. For process industries like water treatment or chemical processing, the processor's 0°C to +60°C operating temperature range and built-in self-diagnostics help avoid unplanned downtime, directly improving return on investment.

Compatibility & Integration

The 140CPU65860 integrates seamlessly into existing Modicon Quantum architectures. It features one Ethernet port (RJ45), one Modbus port (RS232), and one Modbus Plus port (DB9) for flexible networking. Supported protocols include Modbus, TCP/IP, and Modbus Plus, enabling communication with distributed I/O, remote I/O stations, and third-party devices. This compatibility reduces integration costs and preserves previous investments in automation infrastructure.

Installation & Setup Guidance

Mount the 140CPU65860 in a Quantum rack with up to 16 slots. Connect the 24V DC power supply through the backplane; ensure the bus current requirement of 2760 mA is met. Use the RJ45 connector for Ethernet, the SUB-D 9 connector for Modbus Plus, and the RJ45 for Modbus. Verify that the operating environment stays within 0°C to +60°C. For optimal performance, configure the processor using Unity Pro software, selecting the appropriate task structure (cyclic/periodic master task, fast task, or interrupt tasks).

Maintenance & Reliability

To maximize uptime and minimize lifecycle costs, perform periodic inspections of the processor's LED indicators: the green LED for Ethernet activity and the red LED for Ethernet collision. The built-in self-diagnostics and system monitoring help identify issues early, reducing repair expenses. The battery-backed SRAM retains data during power loss, preventing costly reprogramming. Store the unit between -25°C to +70°C when not in use. For current lifecycle status and availability, please verify with BluePLC Industrial before ordering.

Selection Guide & Purchasing Advice

When selecting the 140CPU65860, confirm that your application requires a 266 MHz processor with 1024 KB RAM and support for up to 16 slots. Verify compatibility with your existing Quantum rack and power supply. BluePLC Industrial offers this processor with fast shipping and expert support to help you achieve the best cost-benefit ratio for your automation project.
