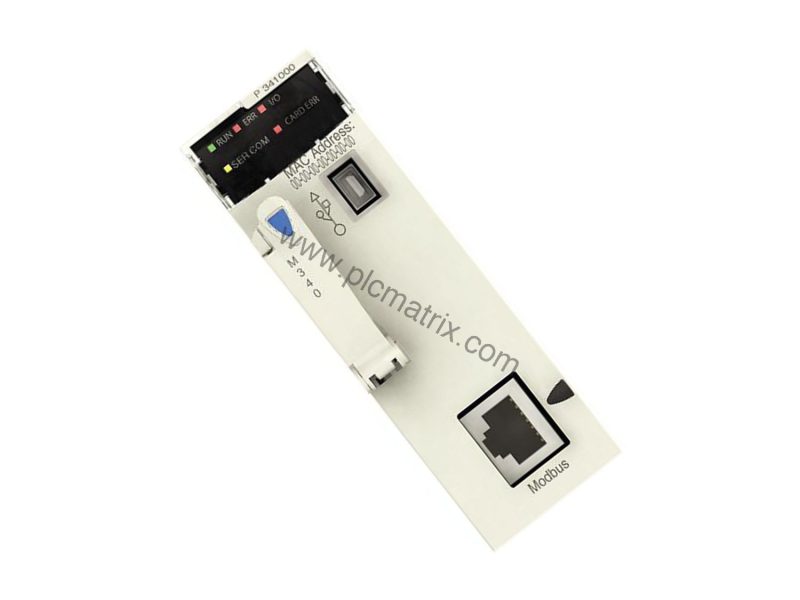

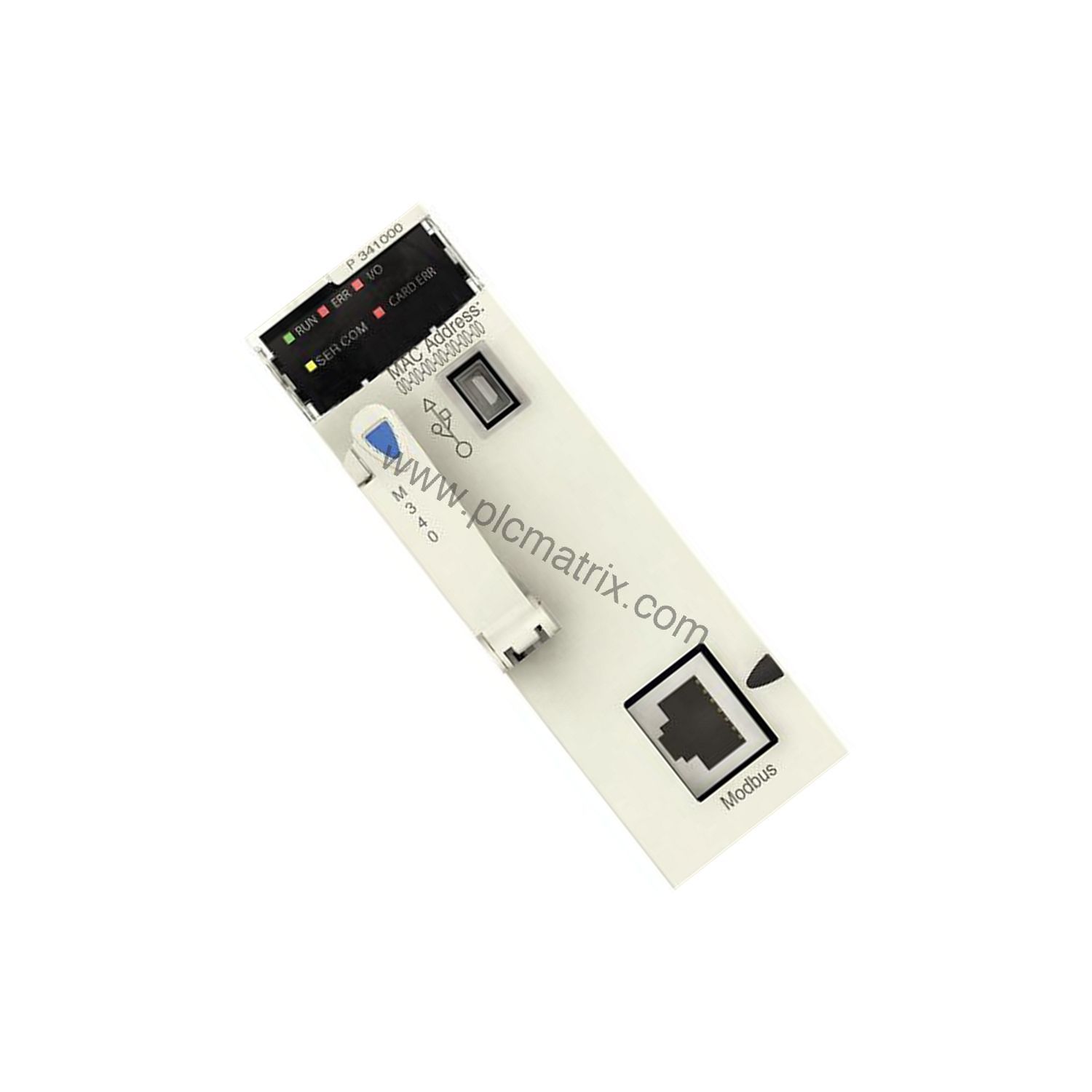

Schneider BMXP341000H Modicon M340 Processor Module for Severe Environments

Product Overview

When harsh industrial conditions demand reliable control, the Schneider BMXP341000H Modicon M340 processor module delivers robust performance. Designed for severe environments, this processor handles up to 512 discrete I/O in a single rack and 128 analog I/O in multi-rack configurations. Its conformal coating protects against moisture and contaminants, reducing costly downtime in demanding applications. By choosing the BMXP341000H, you invest in long-term operational efficiency and lower total cost of ownership.

Technical Specifications Breakdown

The BMXP341000H offers a balanced set of specs that directly impact your system's cost-effectiveness. With 2 MB internal RAM (128 kB data, 1792 kB program/constants/symbols), it supports complex logic without expensive external memory. Execution speeds of 0.18 µs for Boolean and 1.74 µs for floating-point operations ensure fast cycle times, maximizing machine throughput. The module consumes only 72 mA at 24 V DC, keeping energy costs low. Its operating temperature range of -25 to 70 °C (-13 to 158 °F) means fewer failures in extreme conditions, reducing replacement expenses.

Industry Applications

In oil and gas facilities, the BMXP341000H's ATEX Zone 2/22 and IECEx certifications allow safe operation in hazardous areas, avoiding costly safety shutdowns. For water treatment plants, its Modbus serial links enable seamless integration with existing SCADA systems, minimizing retrofit costs. In manufacturing lines requiring high reliability, the processor's diagnostic and event counters help predict failures before they cause production losses, directly improving ROI.

Installation & Setup Guidance

Mount the BMXP341000H on a Modicon M340 rack (up to 2 racks, 11 slots total). Connect the internal power supply via the rack. Use the USB port (12 Mbit/s) for local programming or the RJ45 serial links for Modbus/ASCII communication. For severe environments, ensure the enclosure maintains IP20 protection and proper ventilation. Verify the supplied memory card (BMXRMS008MP) is inserted for program backup.

Maintenance & Reliability

The conformal coating and wide temperature tolerance reduce maintenance frequency. Monitor the five status LEDs (RUN, I/O, CARD ERR, ERR, SER COM) for quick diagnostics. Periodic inspection of connections and environmental conditions helps prevent unplanned downtime, extending service life and lowering lifecycle costs.

Compatibility & Integration

The BMXP341000H integrates with Modicon M340 racks and supports up to two Ethernet communication modules and two AS-Interface modules. Its non-isolated serial links (RS232C/RS485) handle Modbus RTU/ASCII at 0.3–19.2 kbit/s, making it compatible with a wide range of field devices. This flexibility reduces integration complexity and associated engineering costs.

Selection Guide & Purchasing Advice

Before ordering, verify your I/O count (max 512 discrete, 128 analog) and rack configuration. The BMXP341000H is ideal for severe environments requiring ATEX/IECEx certifications. BluePLC Industrial offers this module with fast shipping and expert support to help you select the right components for your application.
