Schneider BMEP586040C Modicon M580 Processor Module for High-Performance Automation

What Is the BMEP586040C?

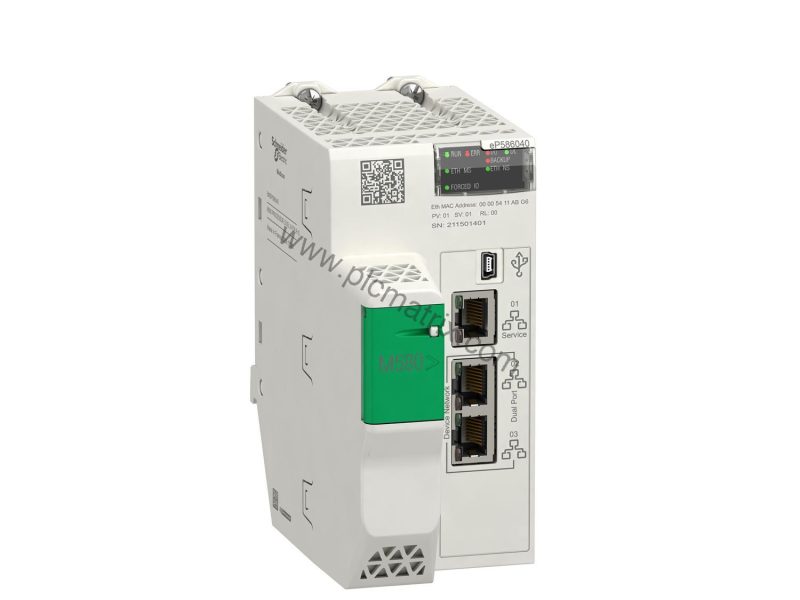

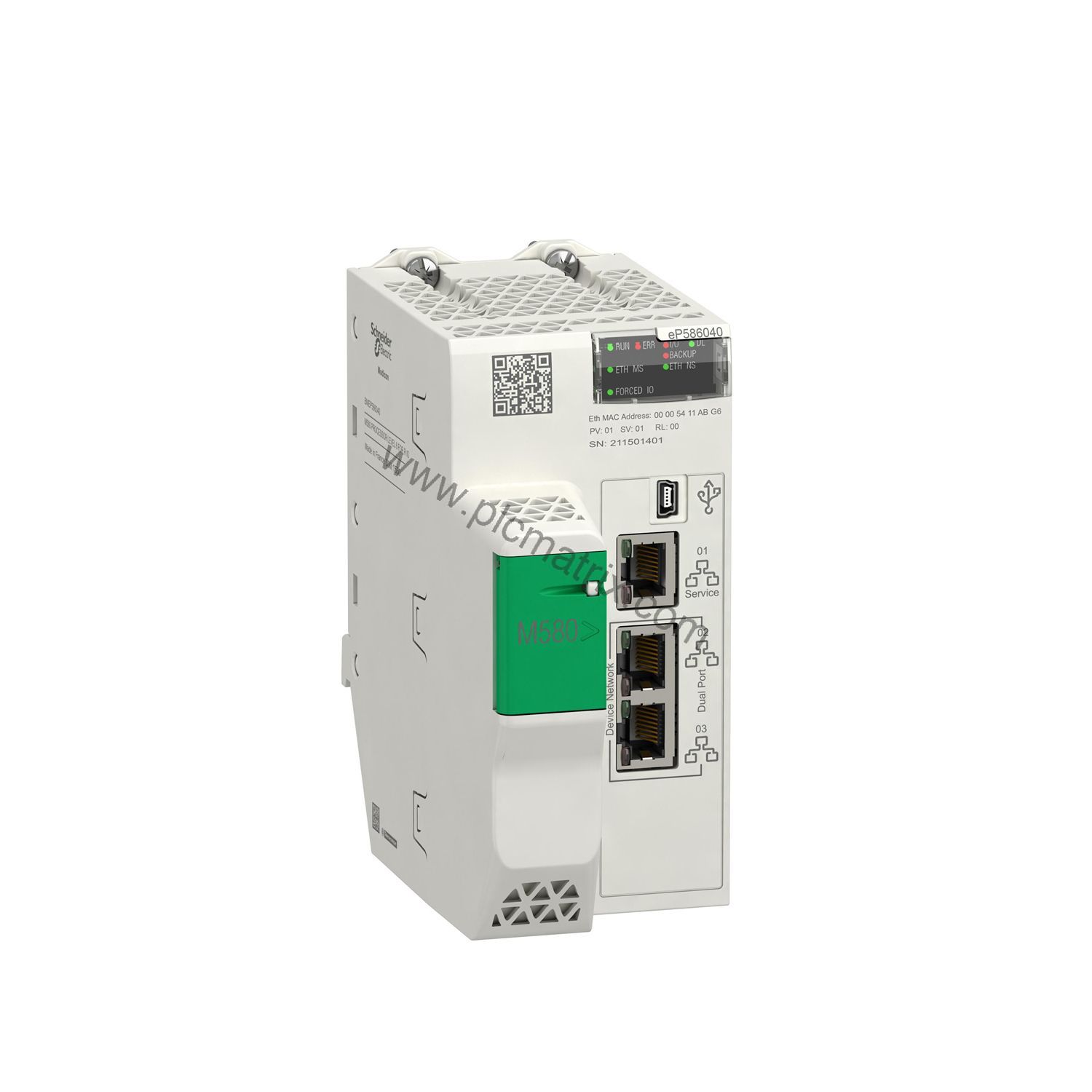

When your automation system demands reliable processing power and extensive I/O capacity, the Schneider BMEP586040C processor module delivers. Part of the Modicon M580 range, this module supports up to 8 racks and handles 6144 discrete I/O points along with 1536 analog I/O points. It features conformal coating for protection against harsh environments and includes integrated Ethernet TCP/IP ports for seamless communication.

Technical Specifications Breakdown

The BMEP586040C offers a robust set of specifications. It consumes 300 mA at 24 V DC and provides 10 kB system memory plus 64 MB program and data memory. With an MTBF of 775,000 hours, this module ensures long-term reliability. It supports 40 Kinst/ms for 65% Boolean and 35% fixed arithmetic operations, and 50 Kinst/ms for 100% Boolean logic. The module operates in temperatures from -13 to 140 °F (-25 to 60 °C) and withstands vibration up to 3 gn and shock up to 30 gn.

Industry Applications

In process control and discrete manufacturing, the BMEP586040C excels. Its HART support and motion control capabilities make it ideal for applications requiring precise time stamping and SSI encoder integration. The module's 64 distributed equipment capacity enables large-scale distributed control systems, while its 31 remote I/O stations support extensive plant-wide automation.

Installation & Setup Guidance

Install the BMEP586040C in a Modicon M580 rack using the internal power supply. Ensure proper grounding and follow the IEC 61131-2 standards for installation. The module includes status LEDs for RUN, ERR, I/O, DL, BACKUP, ETH MS, ETH NS, and FORCED IO to simplify diagnostics during setup.

Maintenance & Reliability

With conformal coating and gas, dust, sand, salt, mold, and fungal spore resistance, the BMEP586040C is built for demanding environments. Its IP20 protection and compliance with ATEX zone 2/22 and IECEx zone 2/22 make it suitable for hazardous locations. Regular inspection of the Ethernet connections and memory card ensures optimal performance.

Compatibility & Integration

The BMEP586040C integrates with Modicon M580 systems via Ethernet TCP/IP and USB mini B. It supports up to 6 Ethernet communication modules and 16 AS-Interface modules. The module communicates using RIO and DIO scanner services, and its 4 GB expandable flash memory stores extensive data.

Selection Guide & Purchasing Advice

Before purchasing, verify your system's rack configuration and I/O requirements. The BMEP586040C requires a compatible Modicon M580 rack and power supply. BluePLC Industrial stocks this module and can assist with availability and replacement options if needed. Always confirm lifecycle status before ordering.
