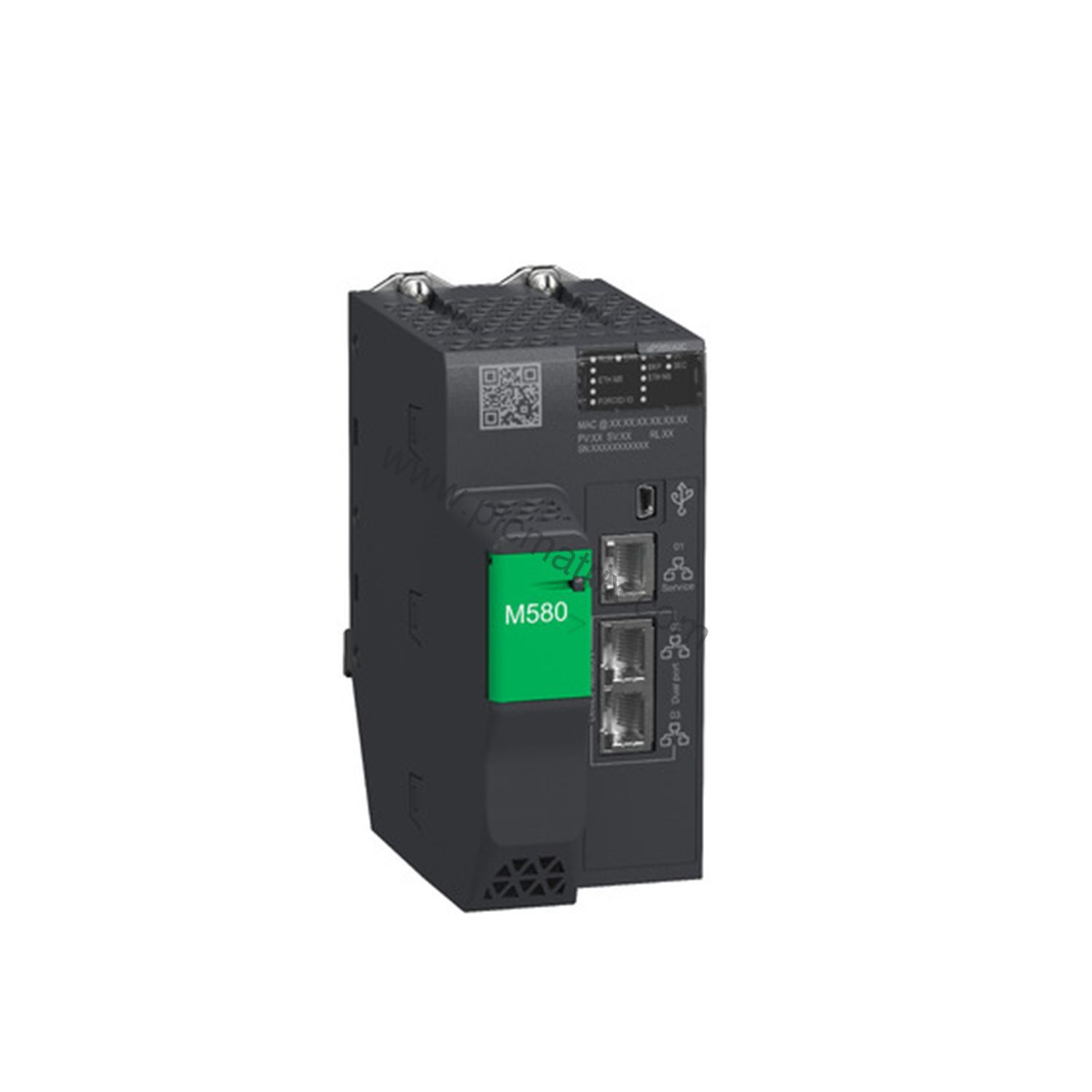

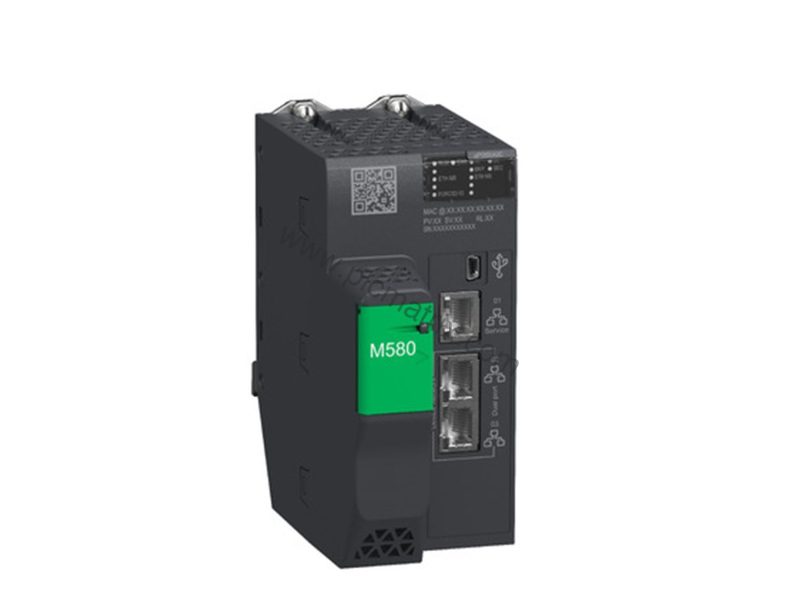

Schneider BMEP585040C Modicon M580 Processor Module for High-Availability Control

Product Introduction

When industrial automation systems face the challenge of coordinating multiple remote stations and distributed equipment under harsh conditions, the Schneider BMEP585040C processor module delivers a robust solution. Part of the Modicon M580 range, this main processor module supports up to 8 racks, 31 remote I/O stations, and 64 distributed devices, making it ideal for large-scale process control and motion applications. Its conformal coating protects against environmental contaminants, ensuring reliable operation in demanding settings.

Technical Specifications Breakdown

The BMEP585040C offers substantial processing power with 40 Kinst/ms for 65% Boolean plus 35% fixed arithmetic operations, and 50 Kinst/ms for 100% Boolean logic. It handles up to 5120 discrete I/O and 1280 analog I/O locally, plus 180 application-specific channels for tasks like accurate time stamping, motion control, serial link, HART, SSI encoder, counter, checks, process control, and programmable loops. Memory includes 24 MB program RAM, 4096 kB data RAM, and 4 GB expandable flash storage. The module draws 300 mA at 24 V DC and features an MTBF of 775,000 hours, underscoring its reliability.

Industry Applications

In oil and gas facilities, the BMEP585040C coordinates multiple remote drops and distributed I/O, handling HART devices and analog loops for precise process control. Its ATEX Zone 2/22 and IECEx Zone 2/22 certifications make it suitable for hazardous environments. In water treatment plants, the module manages high I/O counts and supports motion control for pumps and valves, while its conformal coating resists humidity and gas exposure.

Installation & Setup Guidance

Mount the BMEP585040C on a Modicon M580 rack, ensuring internal power supply via the rack. Connect the Ethernet TCP/IP service port and device network ports for communication with remote stations and distributed equipment. Use the USB mini B port for local programming. Verify ambient temperature stays between -13°F and 140°F and altitude below 6561.68 feet (derating above 2000 m). Secure the module in an IP20 enclosure to protect against dust and accidental contact.

Maintenance & Reliability

With an MTBF of 775,000 hours, the BMEP585040C minimizes unplanned downtime. The conformal coating protects against gas, dust, sand, salt, mold, and fungal spores, reducing maintenance needs in harsh environments. Periodically inspect status LEDs for RUN, ERR, I/O fault, download progress, memory card fault, Ethernet status, and forced I/O indicators. Follow manufacturer guidelines for cleaning and avoid disassembly of safety-related components.

Compatibility & Integration

The BMEP585040C integrates seamlessly with Modicon M580 racks and supports RIO and DIO scanner communication services. It works with up to 16 AS-Interface modules and 6 Ethernet communication modules. It is certified for CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX Zone 2/22, and IECEx Zone 2/22, complying with IEC 61131-2, IEC 61010-2-201, and other standards. This ensures broad compatibility in global industrial networks.

Buying Guide & Purchasing Advice

Before ordering the BMEP585040C, verify your system's rack configuration and I/O requirements. Confirm compatibility with existing Modicon M580 components and check environmental conditions against the module's specifications. BluePLC Industrial offers this processor module with expert support to help you select the right configuration. Please verify current lifecycle status and availability with BluePLC Industrial before ordering.
