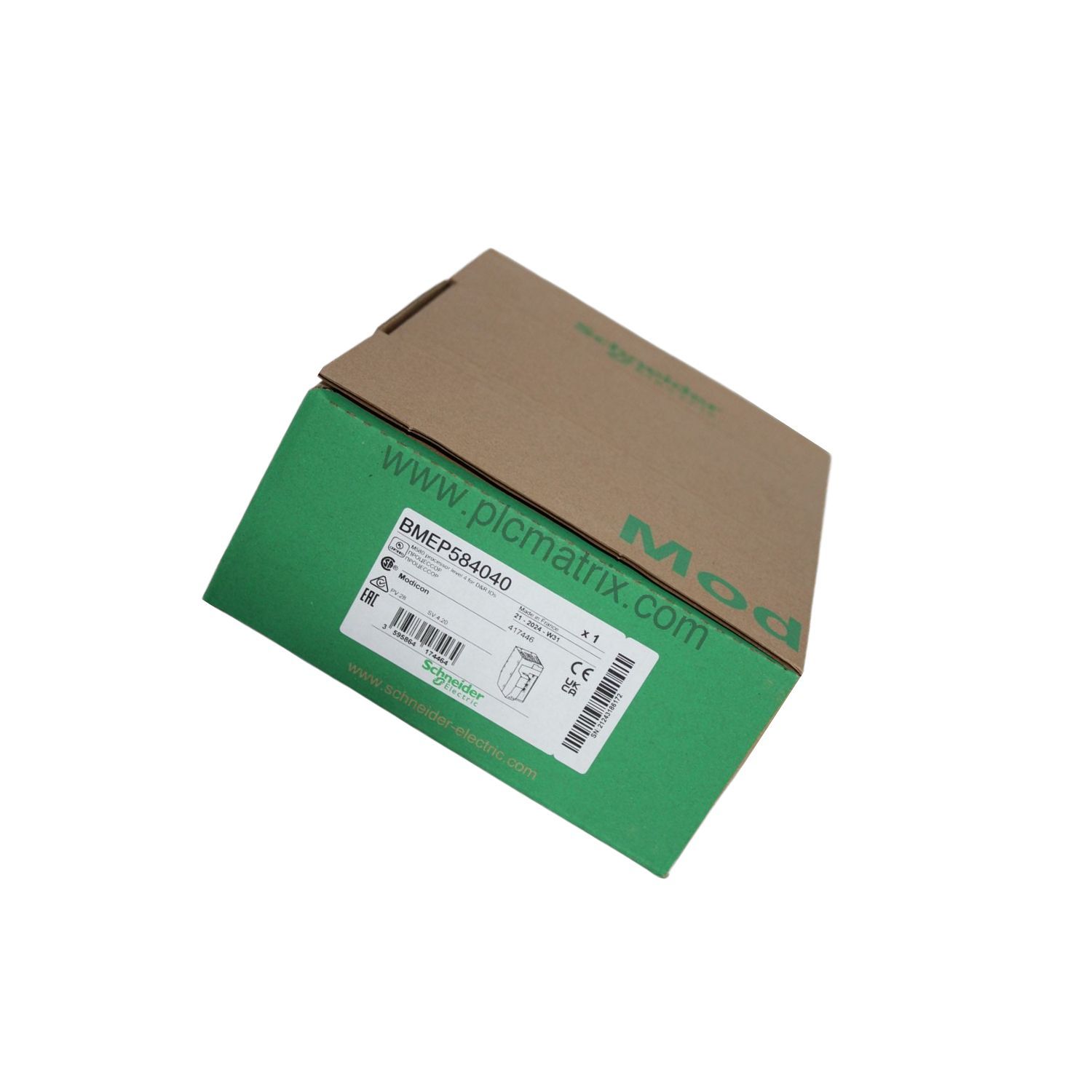

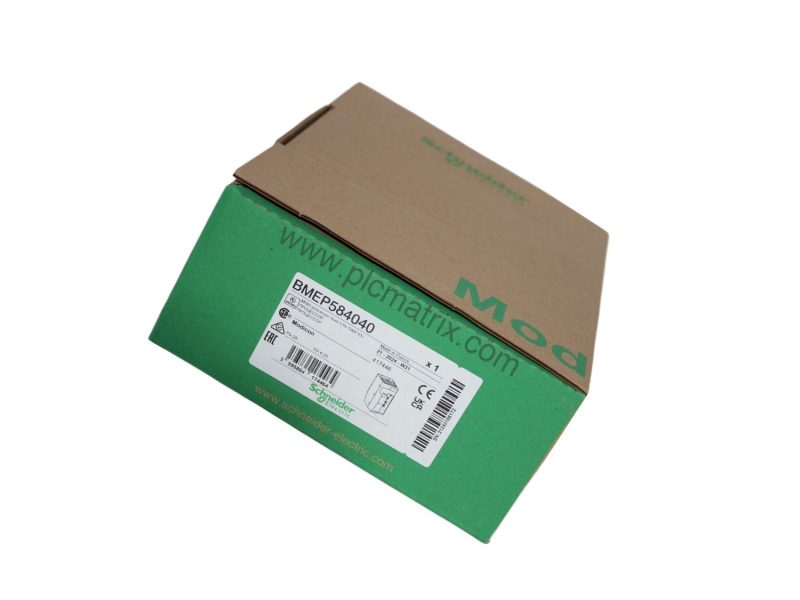

Schneider BMEP584040 Modicon M580 Standalone Processor Module

Product Overview

When your automation system demands robust processing power and seamless connectivity, the Schneider BMEP584040 standalone processor delivers. Part of the Modicon M580 family, this processor module is designed for high-performance control in complex industrial environments. It supports up to 61 Ethernet devices and 16 remote I/O racks of X80 and Quantum, making it ideal for large-scale distributed architectures.

Technical Specifications

The BMEP584040 offers 16 MB of integrated RAM for program storage and 2048 kB for data, plus an expandable 4 GB flash memory for data logging and recipes. It handles 4096 discrete I/O points and 1024 analog I/O points locally. The processor executes 40 Kinstructions/ms for 100% Boolean logic and 30 Kinst/ms for a mix of 65% Boolean and 35% arithmetic operations. Current consumption is 295 mA at 24 V DC, and the MTBF reliability is rated at 775,000 hours.

Connectivity and Cybersecurity

Integrated connection types include one Ethernet TCP/IP service port, two Ethernet TCP/IP device network ports, and a USB mini B port. The module supports RIO and DIO scanner services, plus up to 16 AS-Interface modules and 4 Ethernet communication modules. Cybersecurity features are comprehensive: Achilles certification, IPSec, SNMP logging, Syslog protocol support, transport layer security, embedded firewall, firmware signature, password protection, port hardening, secure HTTPS communication, and an audit trail.

Industry Applications

In water and wastewater treatment plants, the BMEP584040 manages distributed I/O across multiple remote racks while maintaining secure communication. For oil and gas pipeline monitoring, its ability to handle 128 event tasks and 64 distributed equipment ensures precise control and fast response. The processor also supports motion control, SSI encoder, HART, and accurate time stamping for advanced automation.

Installation and Setup

Mount the BMEP584040 on a Modicon M580 rack and connect the internal power supply via the rack backplane. Use the Ethernet service port for initial configuration with EcoStruxure Control Expert software. Ensure the ambient air temperature stays between 32 and 140 °F (0 to 60 °C) and relative humidity between 5 and 95% at 131 °F without condensation. The module is rated IP20 and withstands vibration up to 3 gn and shock up to 30 gn.

Maintenance and Reliability

With an MTBF of 775,000 hours, the BMEP584040 requires minimal maintenance. Regularly inspect the status LEDs—RUN (green), ERR (red), I/O (red), DL (green), BACKUP (red), ETH MS (green/red), and Eth NS (green/red)—to verify normal operation. Store the module in ambient temperatures from -40 to 185 °F (-40 to 85 °C) when not in use. Follow the manufacturer's guidelines for periodic system checks to maximize uptime.

Compatibility and Integration

The BMEP584040 integrates with Modicon X80 and Quantum remote I/O racks, supporting up to 16 remote stations and 2 remote drops. It communicates with up to 64 distributed devices and 61 Ethernet devices. The processor is TAA compliant and carries certifications including CE, UL, CSA, RCM, EAC, and Merchant Navy. It meets IEC 61131-2, IEC 61010-2-201, and EN/IEC 61850-3 standards.

Purchasing Advice

Before ordering the BMEP584040, verify your system's power supply requirements and rack compatibility. Contact BluePLC Industrial to confirm current lifecycle status and availability. As a trusted supplier, BluePLC Industrial offers genuine Schneider Electric modules with fast shipping and expert support.
