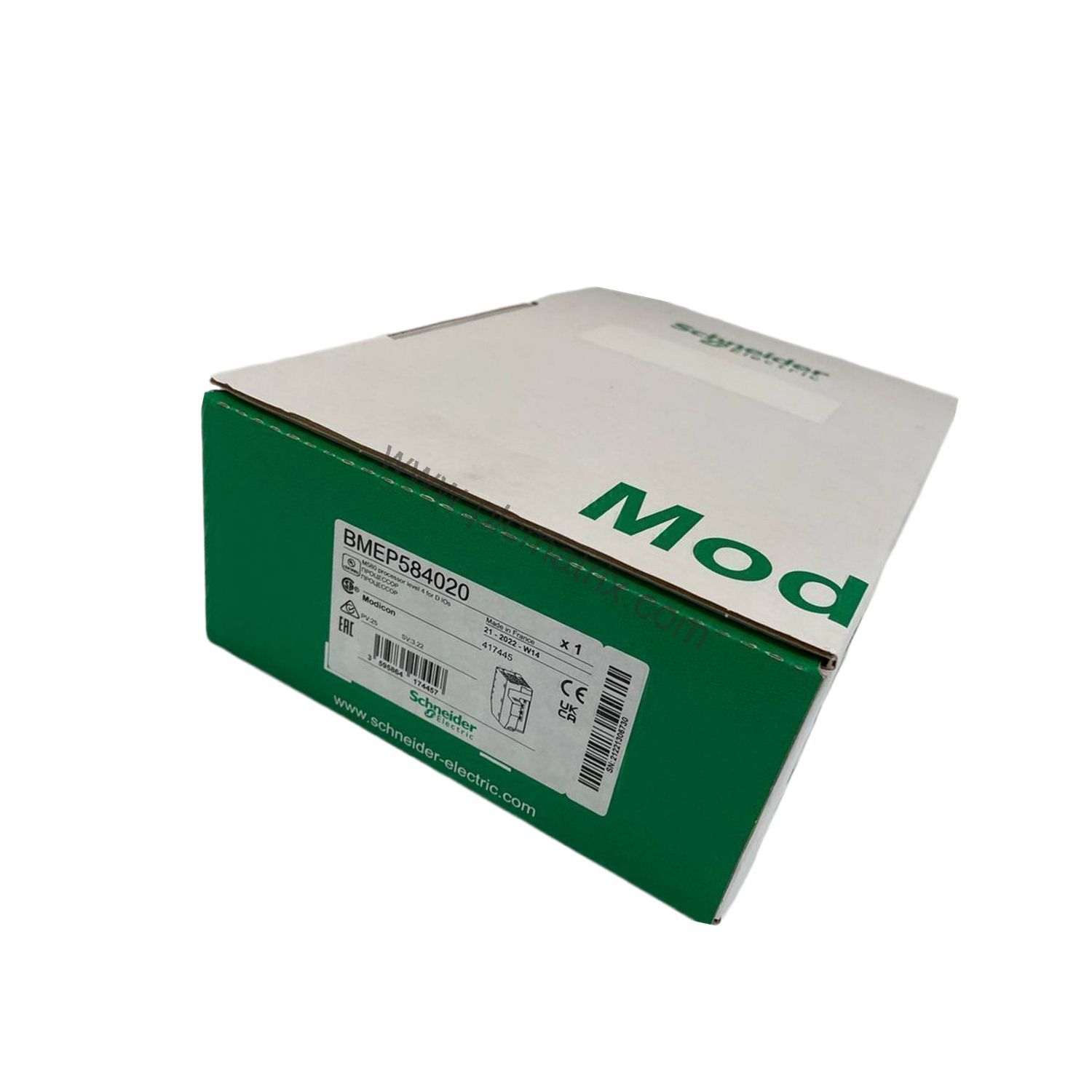

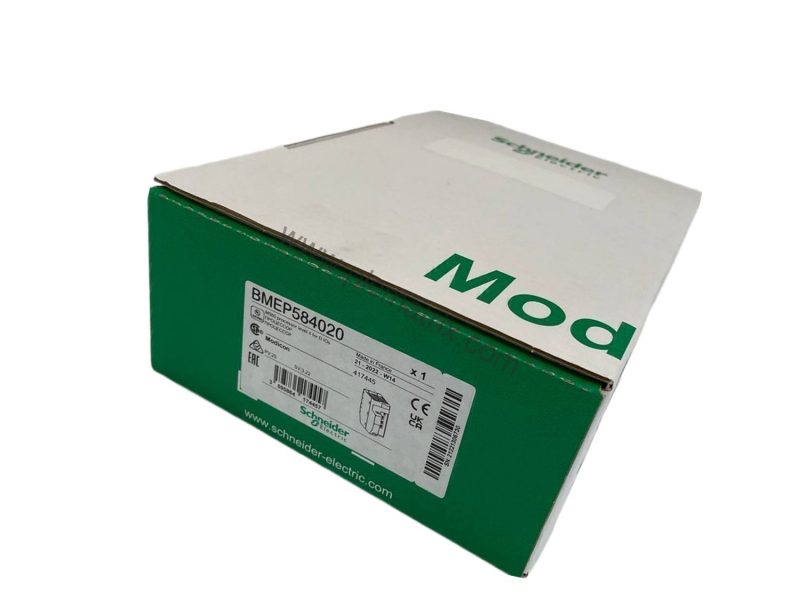

Schneider BMEP584020 Modicon M580 Standalone Processor Module

Product Overview

When your control system demands high performance and robust cybersecurity, the Schneider BMEP584020 standalone processor delivers. Part of the Modicon M580 family, this processor module is designed for demanding industrial automation applications. It handles up to 4096 discrete I/O and 1024 analog I/O across 8 local racks, making it a powerful choice for mid-to-large scale systems.

Technical Specifications Breakdown

The BMEP584020 offers 16 MB of integrated RAM for program memory and 2048 kB for data, ensuring smooth operation even with complex logic. It supports up to 125 Ethernet devices on the device network, with an additional service port for configuration. The processor executes 40 Kinstructions/ms for 100% Boolean logic and 30 Kinst/ms for a mix of 65% Boolean and 35% fixed arithmetic, providing fast scan times for critical processes. Cybersecurity is a key feature: the module is Achilles certified and includes DoS prevention, IPSec, SNMP logging, Syslog protocol support, transport layer security, an audit trail, an embedded firewall, firmware signature, password protection, port hardening, secure communication (HTTPS), and a security log. This comprehensive security suite helps protect your network from unauthorized access and cyber threats.

Industry Applications

In process control environments, the BMEP584020 excels with its support for HART, accurate time stamping, SSI encoder, serial link, motion control, counters, checks, and programmable loops. For example, in a water treatment plant, the processor can manage multiple PID loops while simultaneously handling high-speed discrete control for pumps and valves. Its ability to support 128 distributed equipment and 8 AS-Interface modules makes it ideal for distributed I/O architectures common in manufacturing lines.

Installation & Setup Guidance

Mount the BMEP584020 on a Modicon M580 rack and connect the internal power supply via the rack. Use the USB mini B port for local programming or the Ethernet TCP/IP service port for network-based configuration. The module operates in ambient temperatures from 32 to 140 °F (0 to 60 °C) and can be installed at altitudes up to 6561.68 ft (2000 m) without derating. Ensure proper ventilation to maintain reliable operation.

Maintenance & Reliability

With an MTBF of 775,000 hours, the BMEP584020 is built for long-term reliability. Routine inspection should focus on the status LEDs: the RUN (green), ERR (red), I/O (red), DL (green), BACKUP (red), ETH MS (green/red), and Eth NS (green/red) indicators provide quick visual feedback on processor and network health. Keep the IP20 enclosure free of dust and debris to maintain cooling efficiency.

Compatibility & Integration

The BMEP584020 integrates seamlessly with Modicon M580 racks and supports up to 4 Ethernet communication modules and 8 AS-Interface modules. It communicates via Ethernet TCP/IP and includes a DIO scanner service for distributed I/O. The processor is certified to IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, and EN/IEC 61850-3, ensuring compatibility with global standards.

Selection Guide & Purchasing Advice

Before ordering the BMEP584020, verify your system requirements: the processor supports 8 local racks, 4096 discrete I/O, and 1024 analog I/O. Ensure your rack and power supply are compatible. BluePLC Industrial stocks this module and can advise on current lifecycle status and availability. Contact us for pricing and lead times.
