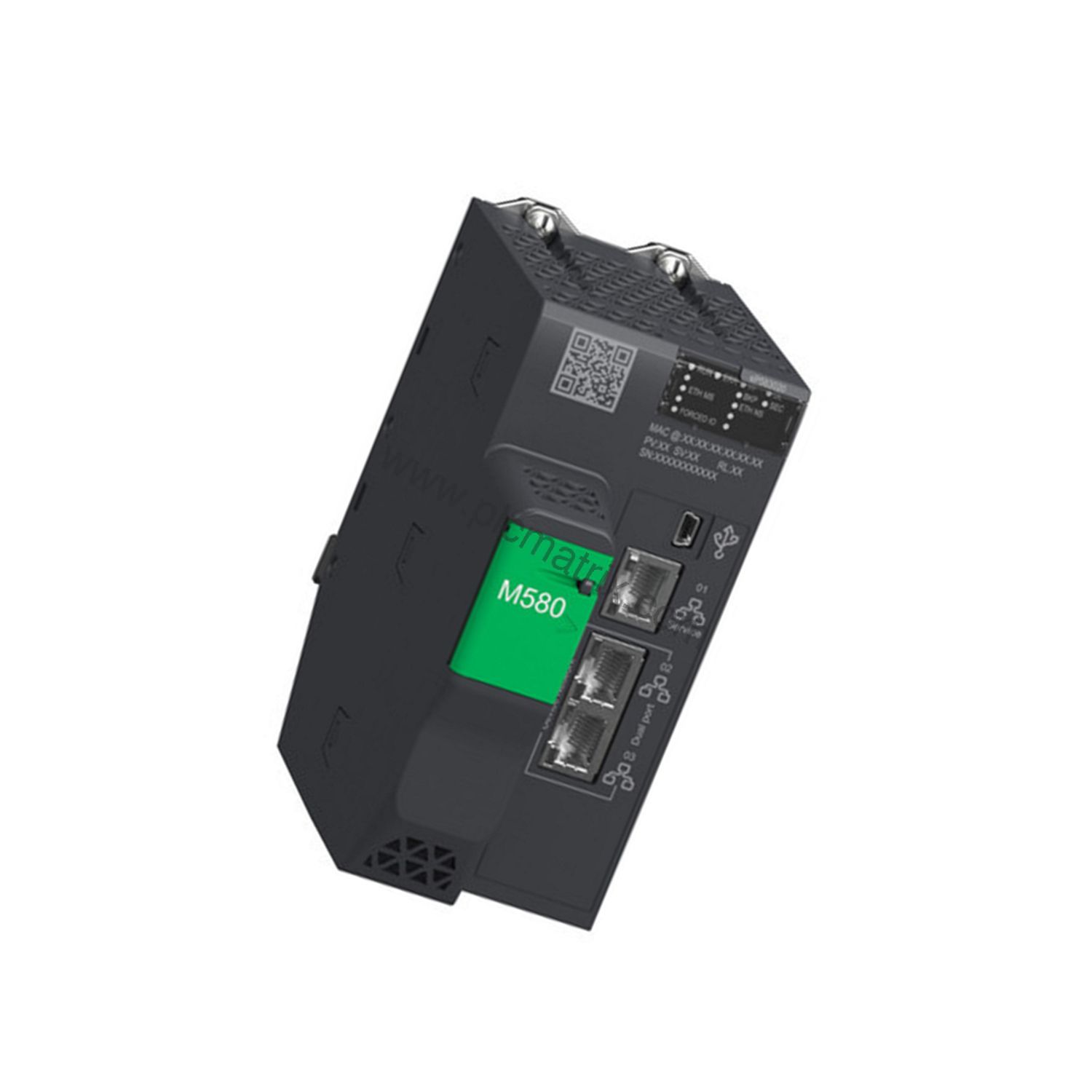

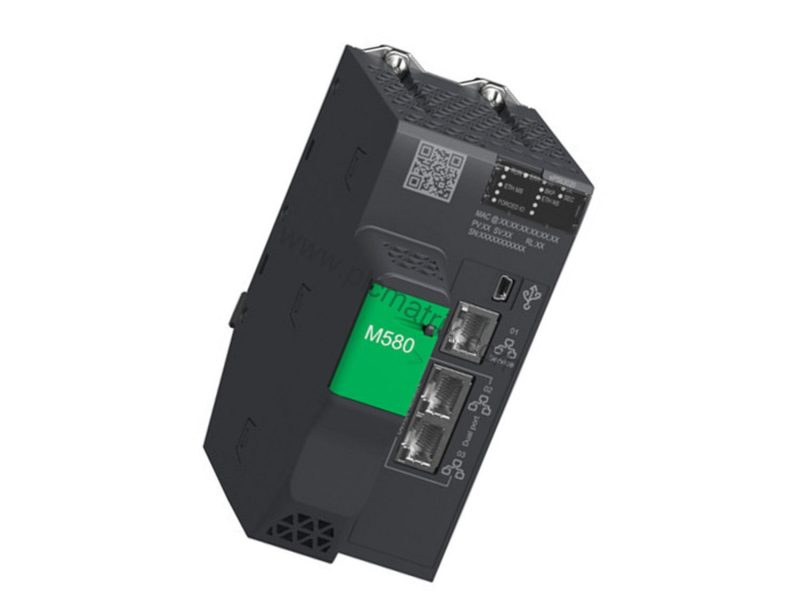

Schneider BMEP583020 Modicon M580 Standalone Processor Module

Product Overview

When you need a powerful and secure controller for your industrial automation system, the Schneider BMEP583020 standalone processor from the Modicon M580 range delivers exceptional performance. This processor module supports up to 125 Ethernet devices and 8 local I/O racks, handling 3072 digital I/O and 768 analog I/O. With 12 MB of integrated RAM for program storage and 1024 kB for data, it provides ample capacity for complex applications. The BMEP583020 is cybersecurity certified with Achilles certification, ensuring robust protection against cyber threats. It includes an embedded firewall, IPSec, and secure communication (HTTPS) to safeguard your network.

Technical Specifications Breakdown

The BMEP583020 offers a range of key specifications that make it suitable for demanding industrial environments. It supports 128 distributed equipment devices and up to 8 AS-Interface modules and 6 Ethernet communication modules. The processor executes 30 Kinstructions/ms (65% Boolean + 35% fixed arithmetic) and 40 Kinstructions/ms (100% Boolean). It consumes 295 mA at 24 V DC and has an MTBF reliability of 775,000 hours. The module operates in ambient temperatures from 32 to 140 °F (0 to 60 °C) and can be stored from -40 to 185 °F (-40 to 85 °C). It is rated IP20 and has a vibration resistance of 3 gn and shock resistance of 30 gn. The product weighs 1.872 lb (0.849 kg) and is CE, UL, CSA, RCM, EAC, and Merchant Navy certified.

Industry Applications

This processor is ideal for process control applications requiring high availability and cybersecurity. In a water treatment plant, the BMEP583020 can manage multiple remote I/O racks and Ethernet devices, ensuring reliable data acquisition and control. Its support for HART, SSI encoder, and motion control makes it suitable for manufacturing lines where precise timing and coordination are critical. The cybersecurity features, including DoS prevention and security logging, are essential for critical infrastructure sectors such as energy and transportation.

Installation & Setup Guidance

The BMEP583020 mounts directly onto the Modicon M580 rack and receives its power internally via the rack backplane. Ensure the rack is properly grounded and that the ambient temperature remains within the 0 to 60 °C operating range. Use the integrated Ethernet TCP/IP service port and device network ports for communication. The USB mini B port allows for local programming and diagnostics. Follow standard IEC 61131-2 guidelines for installation in industrial environments.

Maintenance & Reliability

With an MTBF of 775,000 hours, the BMEP583020 offers long-term reliability. Regularly inspect the processor for dust accumulation and ensure proper ventilation. The module is designed for hazardous locations (Class I Division 2) and can withstand vibration up to 3 gn. Check the status LEDs – RUN (green), ERR (red), I/O (red), DL (green), BACKUP (red), ETH MS (green/red), and Eth NS (green/red) – for quick diagnostics. For cybersecurity, keep firmware updated and review security logs periodically.

Compatibility & Integration

The BMEP583020 integrates seamlessly with the Modicon M580 ecosystem. It supports up to 8 local I/O racks and 128 distributed devices. The processor can communicate with AS-Interface modules and Ethernet communication modules. It is compatible with the DIO scanner service and supports application structures including one periodic fast task, two auxiliary tasks, 128 event tasks, and one cyclic/periodic master task. The module also supports serial link, motion control, HART, SSI encoder, counter, accurate time stamping, checks, process control, and programmable loops.

Selection Guide & Purchasing Advice

When selecting the BMEP583020, verify that your application requires the 12 MB program memory and support for up to 125 Ethernet devices. Ensure your rack system is compatible with the Modicon M580 series. For current availability and lifecycle status, please contact BluePLC Industrial before ordering. We offer this processor module with fast shipping and expert support to help you integrate it into your automation system.
