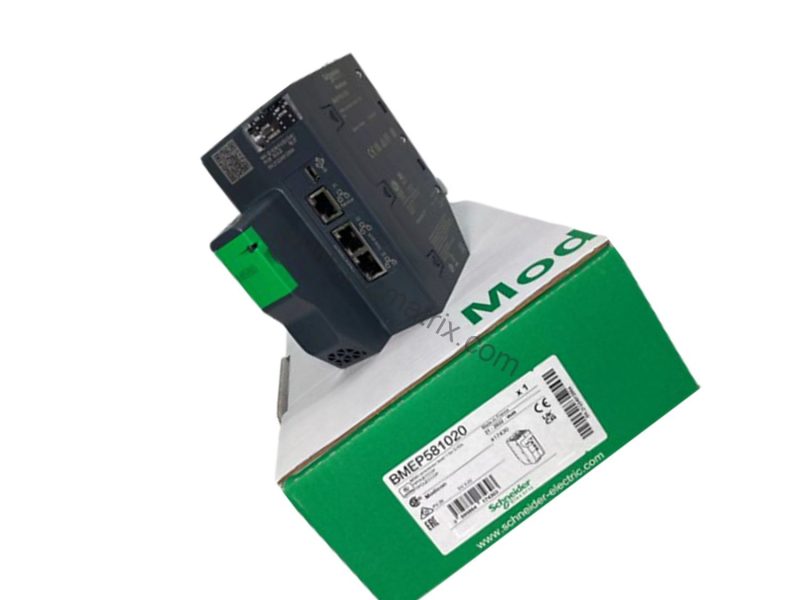

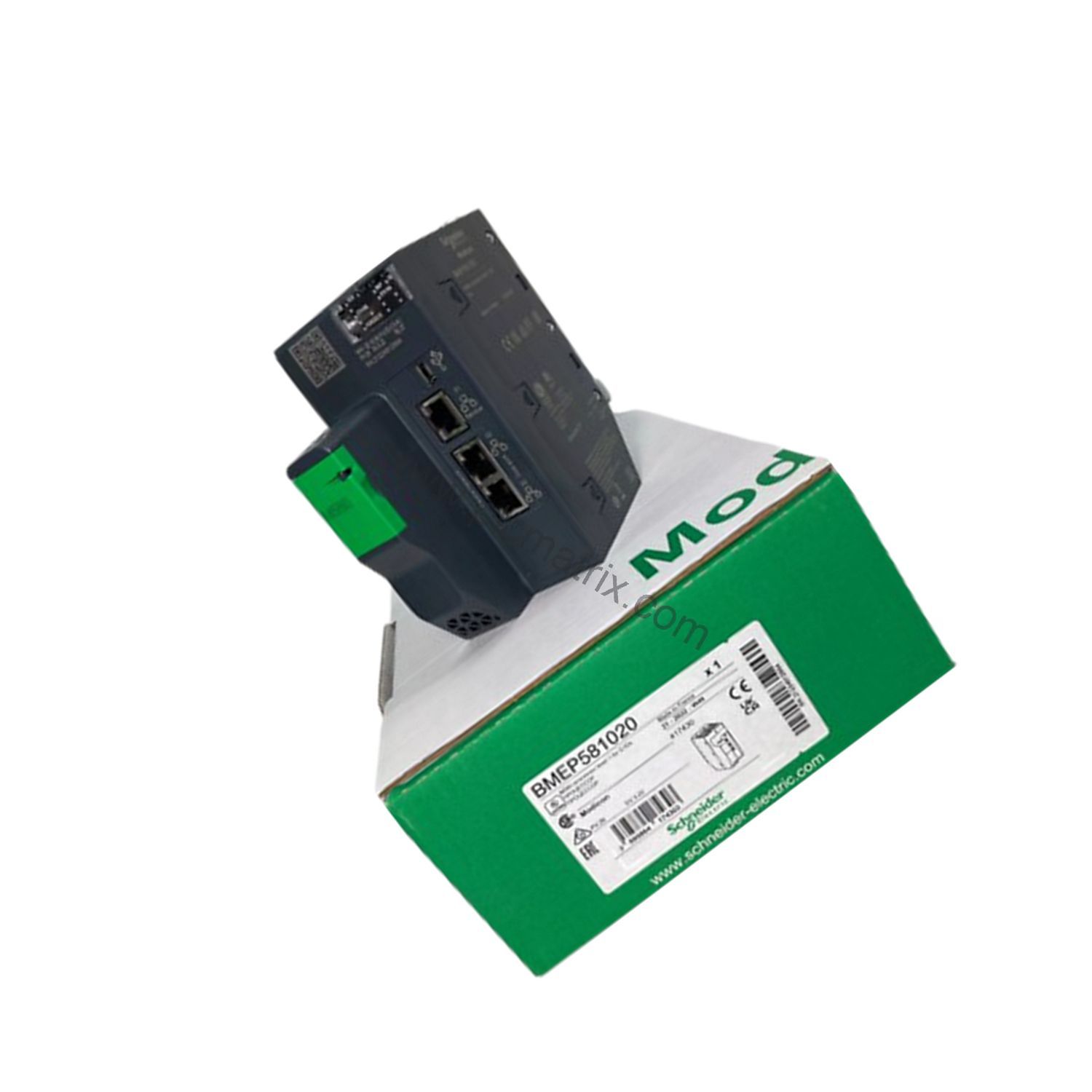

Schneider BMEP581020 Modicon M580 Standalone Processor Module

Product Overview

Struggling to manage complex automation tasks with limited processing power? The Schneider BMEP581020 standalone processor module, part of the Modicon M580 family, delivers robust performance for demanding industrial applications. With 4 MB of program memory and support for up to 61 Ethernet devices, this processor handles large-scale distributed control with ease. It offers 4 local I/O racks, accommodating 1024 discrete and 256 analog I/O points, making it a versatile choice for mid-to-large systems.

Technical Specifications Breakdown

The BMEP581020 integrates several key features that enhance its functionality. It includes 384 kB of data memory and 10 kB of system memory, plus expandable flash storage up to 4 GB for data logging. The module supports 1 periodic fast task, 2 auxiliary tasks, 1 cyclic/periodic master task, and 64 event tasks, enabling precise control of time-critical processes. For cybersecurity, it is Achilles certified and includes DoS prevention, IPSec, SNMP logging, Syslog protocol support, transport layer security, an audit trail, an embedded firewall, firmware signature, password protection, port hardening, secure communication (HTTPS), and a security log. The processor achieves 30 Kinst/ms (65% Boolean + 35% fixed arithmetic) and 40 Kinst/ms (100% Boolean), ensuring fast execution. It consumes 270 mA at 24 V DC and has an MTBF of 775,000 hours. Operating temperature ranges from 32 to 140 °F (0 to 60 °C), with storage from -40 to 185 °F (-40 to 85 °C). It withstands vibration up to 3 gn and shock up to 30 gn, with an IP20 degree of protection.

Industry Applications

In manufacturing environments, the BMEP581020 excels at coordinating multiple production lines with its 64 distributed equipment capacity and support for 2 Ethernet communication modules and 2 AS-Interface modules. For process control, it handles up to 36 application-specific channels, including accurate time stamping, motion control, counter functions, HART, SSI encoder, serial link, checks, and programmable loops. This makes it ideal for applications requiring precise timing and complex control logic, such as packaging, material handling, and water treatment systems.

Installation & Setup Guidance

Install the BMEP581020 into a Modicon M580 rack using the internal power supply via the rack. Connect the Ethernet TCP/IP service port and two device network ports for communication. Use the USB mini B port for local programming. Ensure the ambient temperature stays within 32 to 140 °F (0 to 60 °C) and relative humidity between 5 and 95% at 131 °F (55 °C) without condensation. For altitudes above 2000 m, apply derating factors up to 5000 m. The module is designed for hazardous locations Class I Division 2.

Maintenance & Reliability

With an MTBF of 775,000 hours, the BMEP581020 offers exceptional reliability. Routine maintenance involves verifying LED status indicators: RUN (green), ERR (red), I/O (red), DL (green), BACKUP (red), ETH MS (green/red), and Eth NS (green/red). Periodically inspect the module for dust or debris and ensure proper ventilation. Follow the manufacturer's guidelines for firmware updates and security patches to maintain cybersecurity features.

Compatibility & Integration

The BMEP581020 integrates seamlessly with Modicon M580 architecture and supports Ethernet TCP/IP for device networks. It works with up to 64 distributed devices and 2 Ethernet communication modules. The DIO scanner service enables efficient I/O data exchange. It is certified to multiple standards including CE, UL, CSA, RCM, EAC, and Merchant Navy, and complies with IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, and EN/IEC 61850-3.

Selection Guide & Purchasing Advice

Before ordering, verify that your system requires a standalone processor with 4 MB memory and 4 local racks. The BMEP581020 is TAA compliant and suitable for projects needing high cybersecurity. Contact BluePLC Industrial for current availability and lifecycle status. We offer fast shipping and expert support to help you select the right module for your application.
