Schneider BMEH582040C Redundant Processor Module for Modicon M580

What Is the BMEH582040C?

When your facility demands non-stop operation, a single point of failure can halt production. The Schneider BMEH582040C redundant processor module addresses this challenge directly. Part of the Modicon M580 family, this module provides hot standby capabilities for critical control systems. It features conformal coating for harsh environments and supports up to 64 distributed devices.

Technical Specifications Breakdown

The BMEH582040C packs impressive memory resources. It integrates 10 kB RAM for system memory, 8 MB RAM for program storage, and 768 kB RAM for data. For long-term data logging, the expandable flash memory offers 4 GB capacity. The processor handles 30 Kinstructions/ms with 65% Boolean and 35% fixed arithmetic, or 40 Kinstructions/ms with 100% Boolean logic. Current consumption is 270 mA at 24 V DC. The module operates in ambient temperatures from -25 to 60 °C and withstands vibration of 3 gn and shock of 30 gn. Its IP20 degree of protection suits cabinet installations.

Industry Applications

This processor excels in process control, motion control, and accurate time stamping applications. It supports HART, SSI encoder, and counter functions, making it ideal for oil and gas, water treatment, and power generation. The redundant design ensures minimal downtime in safety-critical processes. With ATEX zone 2/22 and IECEx zone 2/22 certifications, it operates safely in hazardous locations.

Installation & Setup Guidance

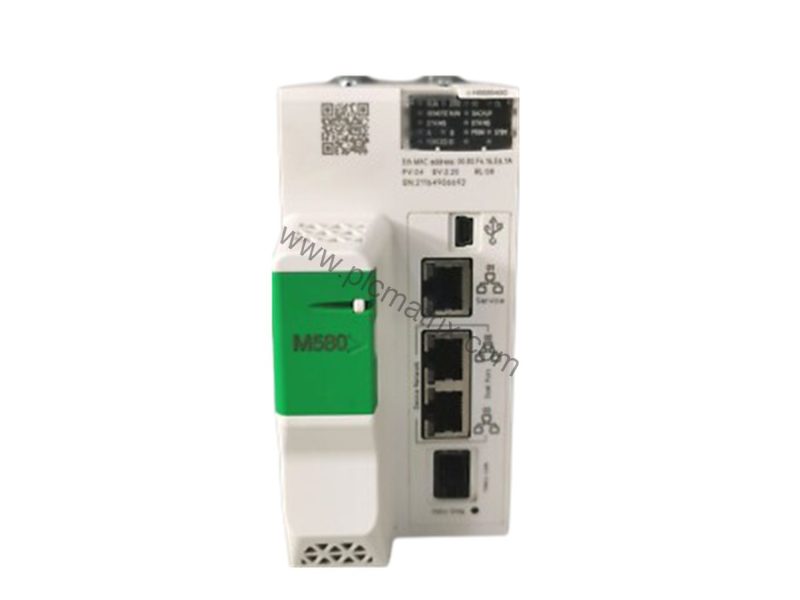

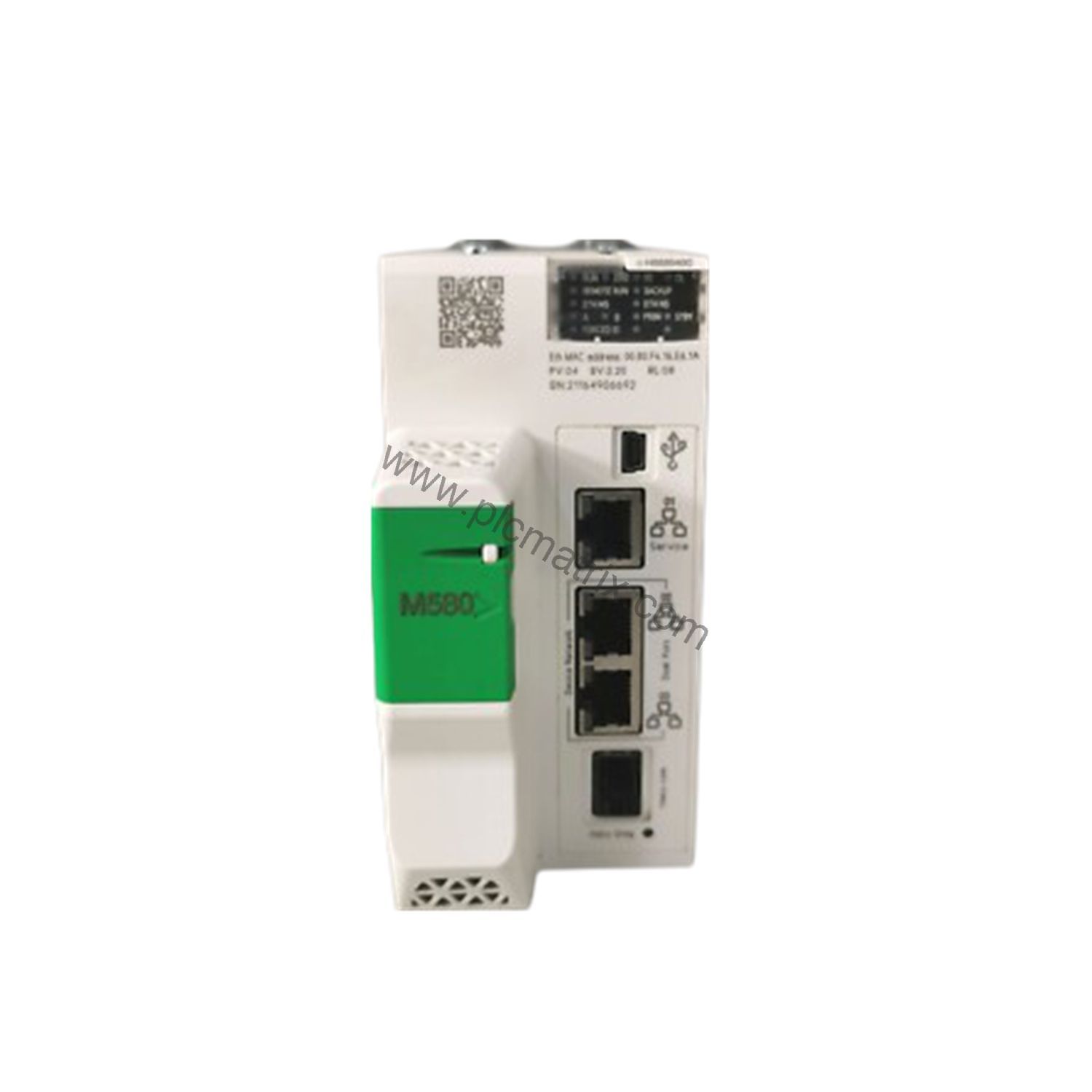

Mount the BMEH582040C on a single rack within an X80 remote drop system. It connects via one Ethernet TCP/IP service port, two Ethernet TCP/IP device network ports, one USB mini B port, and one Ethernet HSBY port for hot standby link. The module draws internal power from the rack. Status LEDs provide clear diagnostics: RUN, ERR, I/O, DL, BACKUP, ETH MS, ETH NS, REMOTE RUN, A, B, PRIM, STBY, FORCED IO, and Hsby Diag.

Maintenance & Reliability

With an MTBF of 650,000 hours, the BMEH582040C offers exceptional reliability. Its conformal coating protects against gas, dust, sand, salt, mold, and fungal spores. The module resists gas class Gx per ISA S71.04 and class 3C4 per IEC 60721-3-3. Regular inspection of status LEDs and environmental conditions ensures long service life. For safety-critical systems, follow the manufacturer's safety manual.

Compatibility & Integration

The BMEH582040C integrates seamlessly with Modicon M580 architecture. It supports up to 8 remote I/O stations with 2 racks per X80 remote drop, and up to 64 distributed equipment. Communication modules include 2 Ethernet communication modules and 16 AS-Interface modules. It complies with IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, and EN/IEC 61850-3.

Selection Guide & Purchasing Advice

Before ordering, verify your system's compatibility with Modicon M580 and confirm the required number of remote drops. The BMEH582040C is available from BluePLC Industrial, a trusted supplier of industrial automation parts. Contact our team to confirm current lifecycle status and availability. We offer fast shipping and expert support for your control system needs.
