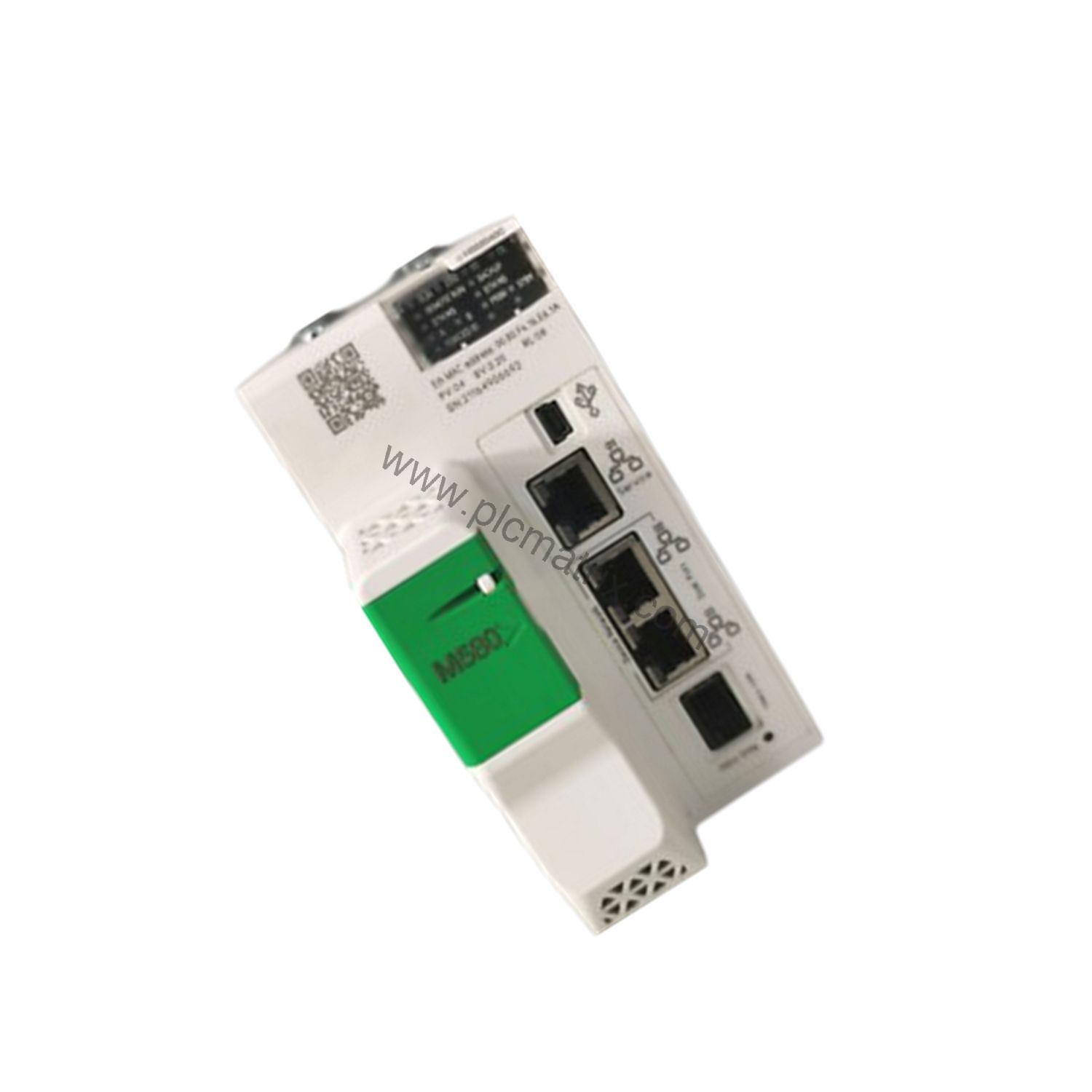

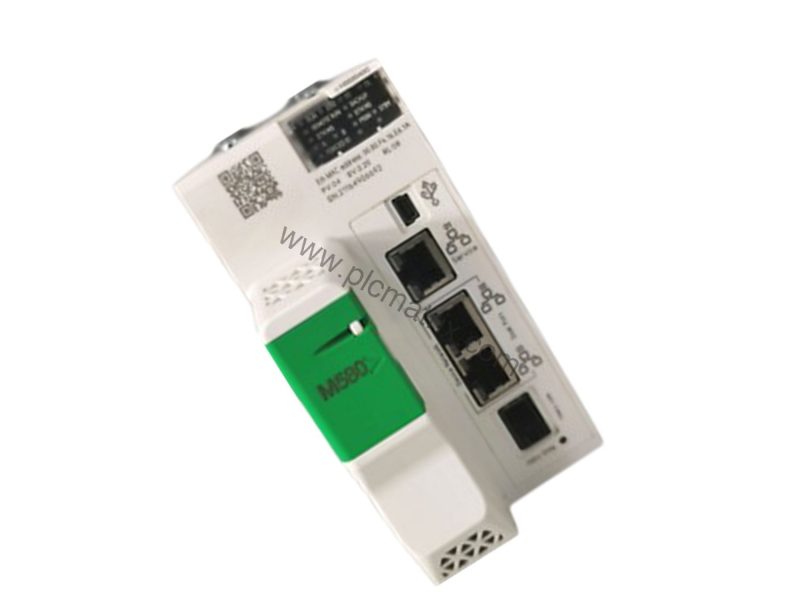

Schneider BMEH582040 Modicon M580 Redundant Processor Module, 8MB, 61 Ethernet Devices

Product Overview

Industrial automation has evolved from isolated control loops to fully networked, redundant architectures that ensure maximum uptime. The Schneider BMEH582040 redundant processor module, part of the Modicon M580 family, meets this demand by providing a robust platform for high-availability process and discrete control. Designed for applications where downtime is not an option, this module supports up to 61 Ethernet devices, 8 local racks, and 8 remote I/O racks, making it a central pillar for modern distributed control systems.

Technical Specifications

The BMEH582040 integrates a redundant processor with 8 MB of program memory and 768 kB of data memory. It consumes 270 mA at 24 V DC and offers a MTBF of 650,000 hours, ensuring long-term reliability. The module operates in ambient temperatures from 32 to 140 °F (0 to 60 °C) and can withstand vibration up to 3 gn and shock up to 30 gn. Its IP20 protection rating suits clean industrial environments. Cybersecurity features include Achilles certification, IPSec, SNMP logging, and an embedded firewall, providing defense-in-depth for critical networks.

Industry Applications

In oil and gas refineries, the BMEH582040 manages redundant control of distillation columns and pipeline monitoring, where its hot standby capability ensures seamless failover. For water treatment plants, the module coordinates multiple remote I/O drops across vast areas, maintaining process continuity even during network interruptions. The processor also excels in power generation facilities, handling fast periodic tasks and complex logic for turbine control, while its 30 Kinst/ms performance (65% Boolean + 35% arithmetic) keeps loops responsive.

Installation & Setup Guidance

Mount the BMEH582040 on a Modicon M580 rack and connect the internal power supply via the rack backplane. Use the integrated Ethernet TCP/IP service port for initial configuration and the two device network ports for plant-wide communication. The USB mini B port allows local programming access. Ensure the ambient temperature stays within 32 to 140 °F and avoid condensation by maintaining relative humidity below 95% at 131 °F. For redundant operation, link two processors via the dedicated Ethernet HSBY port and set processor IDs A and B using the front-panel switches.

Maintenance & Reliability

With an MTBF of 650,000 hours, the BMEH582040 minimizes unplanned downtime. Regularly inspect the status LEDs—RUN, ERR, I/O, DL, BACKUP, ETH MS, Eth NS, REMOTE RUN, PRIM, STBY, FORCED IO, and Hsby Diag—to quickly identify faults. The module supports expandable flash memory for data logging and firmware updates, simplifying lifecycle management. Periodic verification of the hot standby link status ensures redundancy remains active. Store spare units between -40 and 185 °F to maintain readiness.

Compatibility & Integration

The BMEH582040 integrates seamlessly with Modicon M580 local and remote racks, supporting up to 8 X80 remote drops. It communicates via Ethernet TCP/IP for device networks and uses the HSBY port for processor synchronization. The module acts as a DIO scanner and RIO scanner, managing up to 64 distributed devices. It also supports 2 Ethernet communication modules and 16 AS-Interface modules, broadening its connectivity for mixed I/O and field device networks.

Buying Guide & Purchasing Advice

Before ordering, confirm that your application requires a redundant processor with 8 MB program memory and that your rack system supports the BMEH582040. Verify the operating temperature range and ensure your cabinet provides adequate cooling. BluePLC Industrial stocks this TAA-compliant module and can advise on compatible racks, power supplies, and communication modules. Contact our team to check current availability and lead times.
