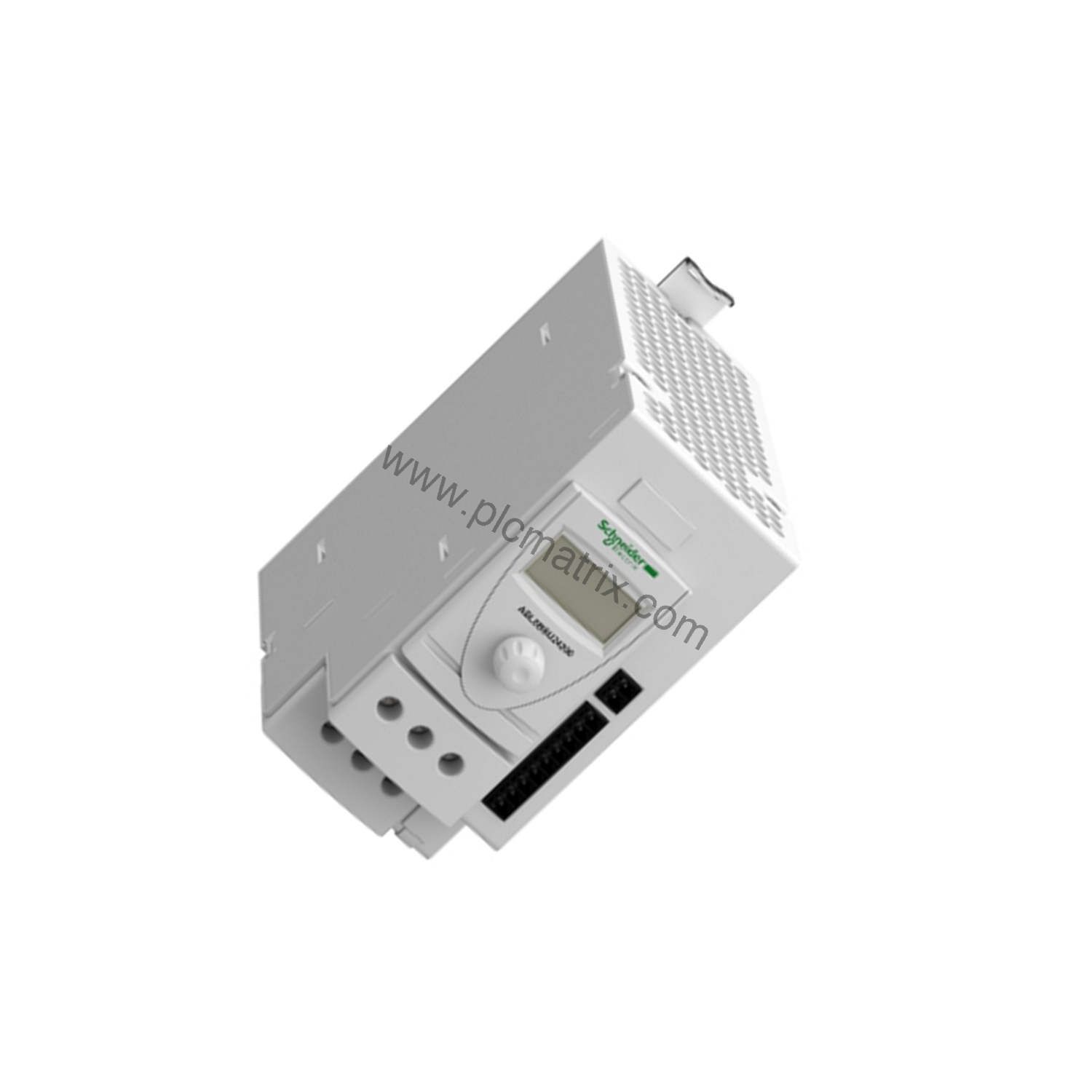

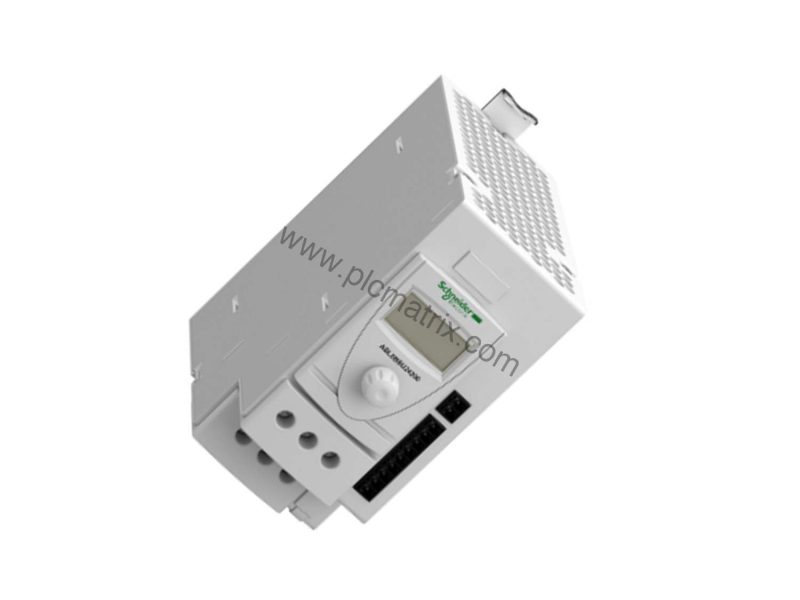

Schneider ABL8BBU24200 Battery Control Module for Modicon Systems

Product Overview

When your industrial control system demands uninterrupted power management, the Schneider ABL8BBU24200 battery control module delivers reliable performance. Part of the Modicon product line, this module operates in both nominal and battery modes to maintain system stability. It accepts an input voltage from 24 to 28.8 V DC and provides a maximum output current of 20 A, making it suitable for demanding automation environments.

Technical Specifications Breakdown

The ABL8BBU24200 features an adjustable activation threshold from 22 to 36 V, allowing you to fine-tune when the battery backup engages. In nominal mode, the output voltage is (Uin-0.25) V DC, while in battery mode it becomes (Ubattery-0.5) V DC. The module consumes only 0.6 A under load and a mere 0.1 mA with no load, minimizing energy waste. Maximum power dissipation is 7 W, ensuring efficient thermal management. The unit operates reliably from -25 to 60 °C and can be stored from -40 to 85 °C.

Industry Applications

This battery control module excels in applications requiring uninterrupted power for critical control systems. Use it in manufacturing lines, process control, and building automation where a momentary power loss could cause costly downtime. The adjustable activation threshold lets you tailor the backup response to your specific process needs, reducing unnecessary battery cycling.

Installation & Setup Guidance

Mount the ABL8BBU24200 on a 35 mm symmetrical DIN rail either horizontally or vertically. Connect input and output wires using the screw-type terminals, which accept 2 x 0.5 to 2 x 10 mm² (AWG 20 to AWG 8). For the diagnostic relay, use the removable screw terminal block with 1 x 0.75 mm² wire. Ensure the ambient temperature stays within -25 to 60 °C and altitude does not exceed 2000 meters.

Maintenance & Reliability

With a mean time between failures (MTBF) of 718,708 hours at 24 V DC (UTE C80-810 method), the ABL8BBU24200 offers long-term reliability. The module includes overload protection (1.5 x In) and short-circuit protection with automatic reset in battery-backed mode. Periodic inspection of connections and operating environment helps maintain optimal performance and extends service life.

Selection Guide & Purchasing Advice

Before purchasing, verify that your system requires a battery control module with 20 A maximum output and an adjustable activation threshold between 22 and 36 V. Confirm compatibility with your Modicon controller and ensure your DIN rail setup meets the mounting requirements. BluePLC Industrial stocks the ABL8BBU24200 and can assist with availability and lifecycle status. Contact us to confirm current stock and lead times.
