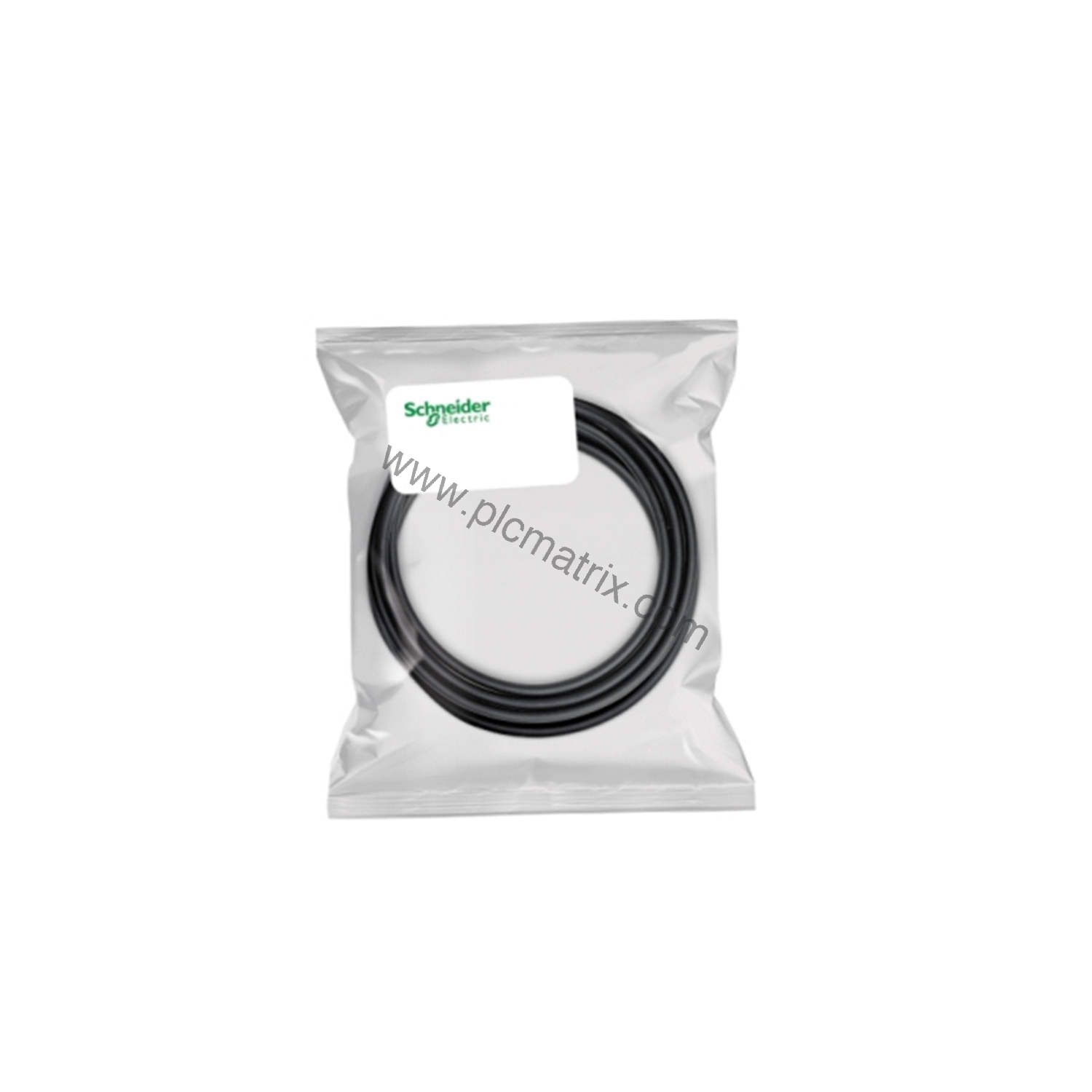

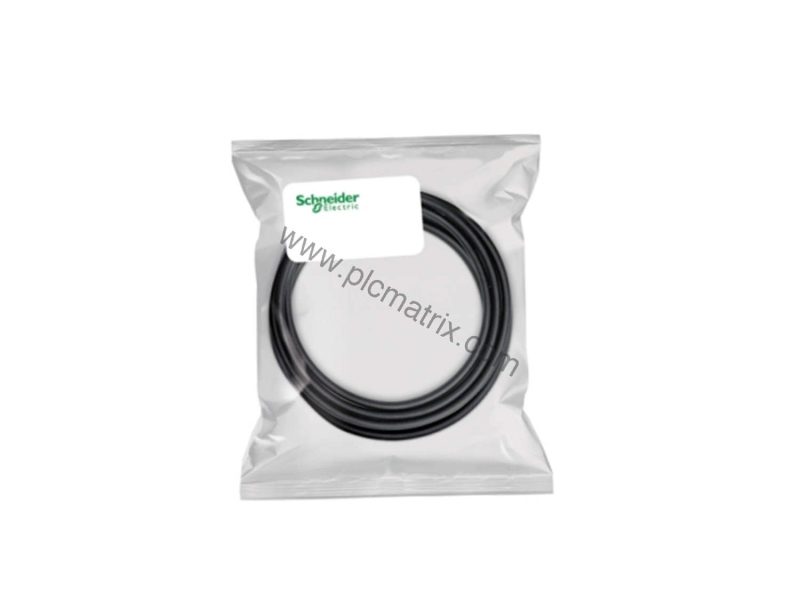

Schneider ABFM16S201 Modicon Quantum Cabled Connector for Analogue Input

Product Overview

The ABFM16S201 from Schneider Electric is a cabled connector designed for the Modicon Quantum series. It transmits analogue input signals reliably in industrial automation environments. With 16 channels and a shielded cable construction, this connector minimizes interference and ensures signal integrity. Its dual connector system provides secure electrical connections, making it a practical choice for PLC systems.

Technical Specifications Breakdown

The ABFM16S201 operates with a voltage rating of 250 V and a current rating of 1 A, suitable for analogue signal handling. The cable length of 6.6 ft (2 m) offers flexibility for installation in control cabinets. It uses AWG 24 wire with a section of 0.22 mm², ensuring consistent conductivity. The SUB-D connector has 25 ways, providing ample pin count for 16 channels. The operating temperature range spans –20 °C to +60 °C, allowing use in varied industrial conditions. Insulation material is PVC, and the cable is multi-conductor shielded to reduce electromagnetic interference.

Industry Applications

This connector is ideal for process control systems where accurate analogue input acquisition is critical. For example, in chemical plants, the ABFM16S201 connects temperature or pressure transmitters to a Modicon Quantum PLC, ensuring stable signal transfer over its 2 m cable. In manufacturing lines, it links analogue sensors for monitoring variables like flow or level. The shielded design prevents noise from motors or drives, maintaining measurement precision.

Installation & Setup Guidance

Mount the ABFM16S201 by connecting its two SUB-D connectors to compatible modules, such as the 140ACI04000. Ensure the cable is routed away from high-voltage lines to avoid interference. Secure the connectors with locking screws to prevent accidental disconnection. Verify that the operating environment stays within –20 °C to +60 °C for reliable performance. No special tools are required for installation.

Maintenance & Reliability

Inspect the ABFM16S201 periodically for signs of wear on the cable insulation or connector pins. The PVC insulation resists common industrial chemicals and moisture, extending service life. Keep the connectors clean and free from dust to maintain signal quality. The shielded cable construction reduces the need for frequent troubleshooting in noisy environments. Regular visual checks help ensure long-term reliability.

Compatibility & Integration

The ABFM16S201 is designed for the Modicon Quantum PLC series and is compatible with the 140ACI04000 analogue input module. It works with any system using SUB-D 25-way connectors for analogue signals. This connector integrates seamlessly into existing Quantum installations, supporting 16-channel analogue input acquisition without additional adapters.

Selection Guide & Purchasing Advice

Before purchasing the ABFM16S201, verify that your PLC system uses SUB-D connectors and requires 16 analogue input channels. Confirm the cable length of 2 m suits your cabinet layout. BluePLC Industrial offers this genuine Schneider part with fast shipping. Check compatibility with your specific Quantum module to ensure a proper fit.
