Schneider ABFM08S202 Cabled Connector for Modicon Quantum Analog Input

Case Study: Solving Analog Signal Integrity in Harsh Environments

When a food processing plant experienced intermittent signal loss from their analog current sensors, the root cause was traced to poor connector shielding and cable fatigue. The Schneider ABFM08S202 cabled connector was selected to replace the failing units. Its multi-conductor, shielded cable and robust SUB-D connector eliminated noise interference, restoring reliable 4-20 mA transmission across eight channels. The plant reduced unplanned downtime by 30% within the first quarter.

Product Overview

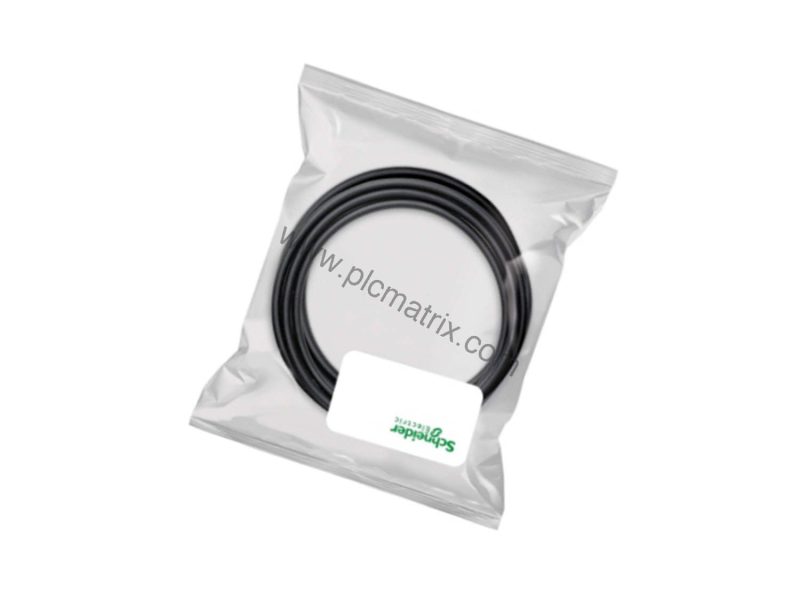

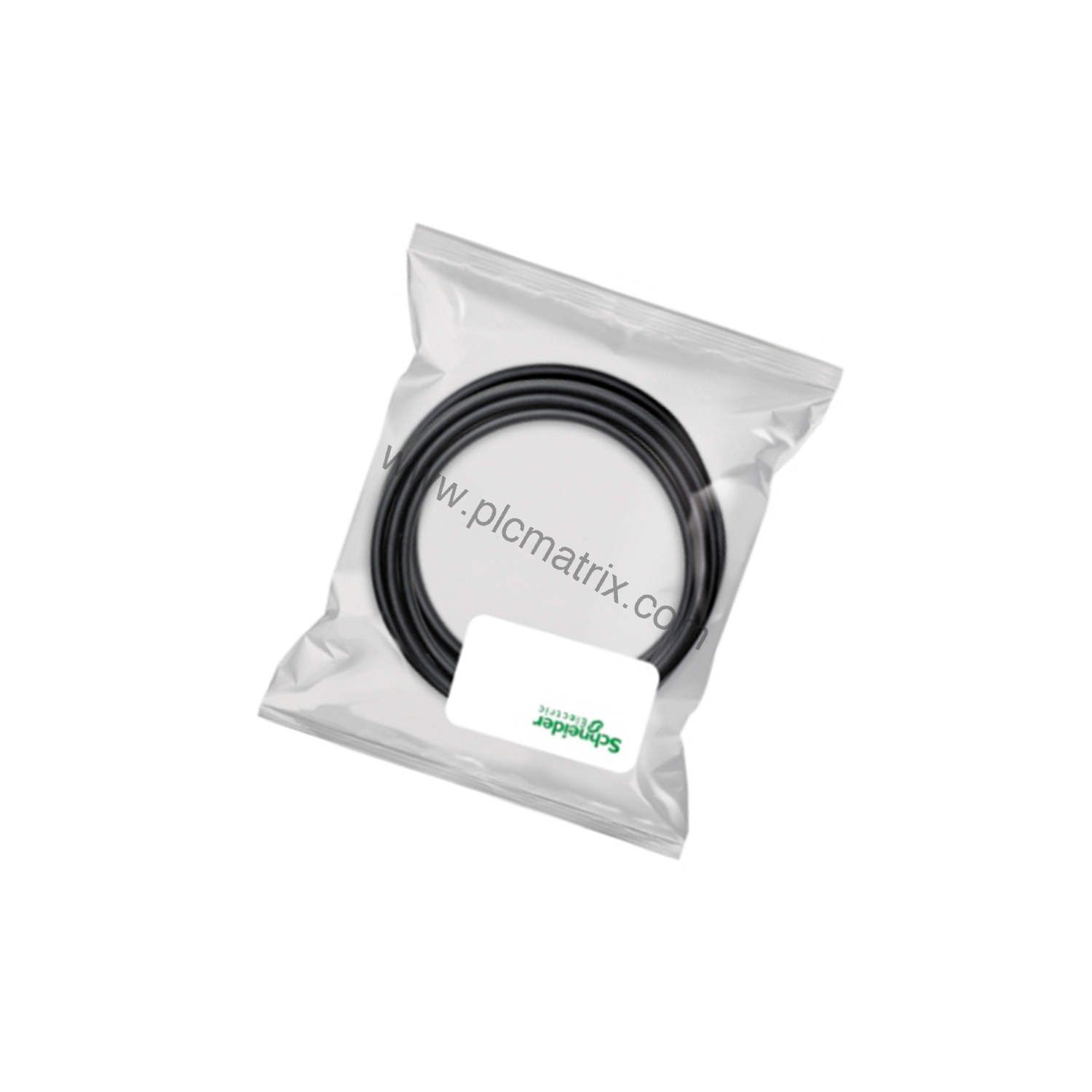

The ABFM08S202, manufactured by Schneider Electric, is a cabled connector designed for Modicon Quantum PLC applications. It supports eight channels and is tailored for analog current input signals, providing a reliable electrical connection in demanding industrial environments. Part of the Modicon Quantum product line, this accessory ensures seamless integration with existing Quantum systems.

Technical Specifications Breakdown

Signal Type and Channel Count

The ABFM08S202 handles analog current input signals across eight channels, making it ideal for multi-sensor monitoring applications. Each channel maintains signal integrity through the shielded cable construction.

Cable Construction and Length

The multi-conductor, shielded cable extends 6.6 feet (2 meters), offering flexibility in cabinet layouts while protecting against electromagnetic interference. The AWG 24 gauge wire with a 0.22 mm² section ensures efficient current transmission.

Connector and Electrical Ratings

A single SUB-D connector with 25 ways provides ample connection points. The device is rated for 1 A current and 250 V voltage, supporting standard analog loop requirements. PVC insulation material allows operation from -20 °C to +60 °C.

Industry Applications

Process Control in Chemical Plants

In chemical processing, the ABFM08S202 connects analog current transmitters for pressure, flow, and temperature monitoring. The shielded cable prevents noise from nearby motors and pumps, ensuring accurate readings for critical control loops.

Water Treatment Facilities

Water and wastewater plants use the connector to interface with level and flow sensors. The eight-channel capacity reduces wiring complexity, and the -20 °C to +60 °C temperature range accommodates outdoor installations.

Installation Guidance

Mount the ABFM08S202 securely within the control panel to avoid strain on the cable. Route the shielded cable away from high-voltage power lines to maintain signal quality. Connect the SUB-D connector to the corresponding Modicon Quantum analog input module, such as the 140AC013000. Ensure the AWG 24 wires are properly terminated with the correct 0.22 mm² wire section. Verify the 1 A current rating is not exceeded per channel.

Maintenance and Reliability

Inspect the cable and connector periodically for physical damage, especially in high-vibration environments. The PVC insulation resists common industrial chemicals, but avoid prolonged exposure to solvents. Check that the SUB-D connector remains firmly seated. With proper care, the ABFM08S202 provides long-term reliability, reducing replacement costs and downtime.

Compatibility and Integration

The ABFM08S202 is designed for Modicon Quantum PLC systems and is compatible with the 140AC013000 analog input module. It integrates directly into existing Quantum backplanes and I/O configurations, requiring no special adapters. The 25-way SUB-D connector matches standard Quantum cabling schemes.

Selection Guide and Purchasing Advice

Before ordering the ABFM08S202, verify that your system uses Modicon Quantum PLCs and requires eight analog current input channels. Confirm the cable length of 6.6 feet (2 meters) meets your panel layout needs. BluePLC Industrial stocks the ABFM08S202 and can advise on compatibility with your specific Quantum configuration. Contact our team for current pricing and availability.
