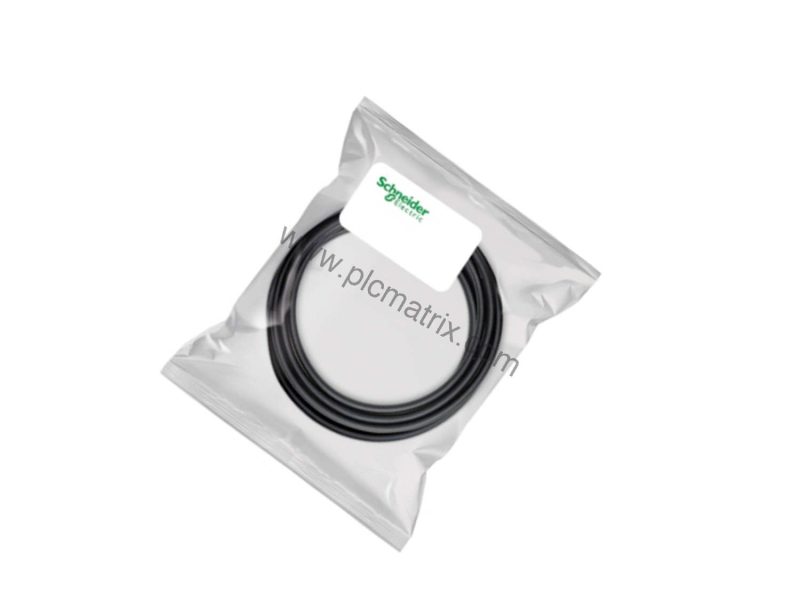

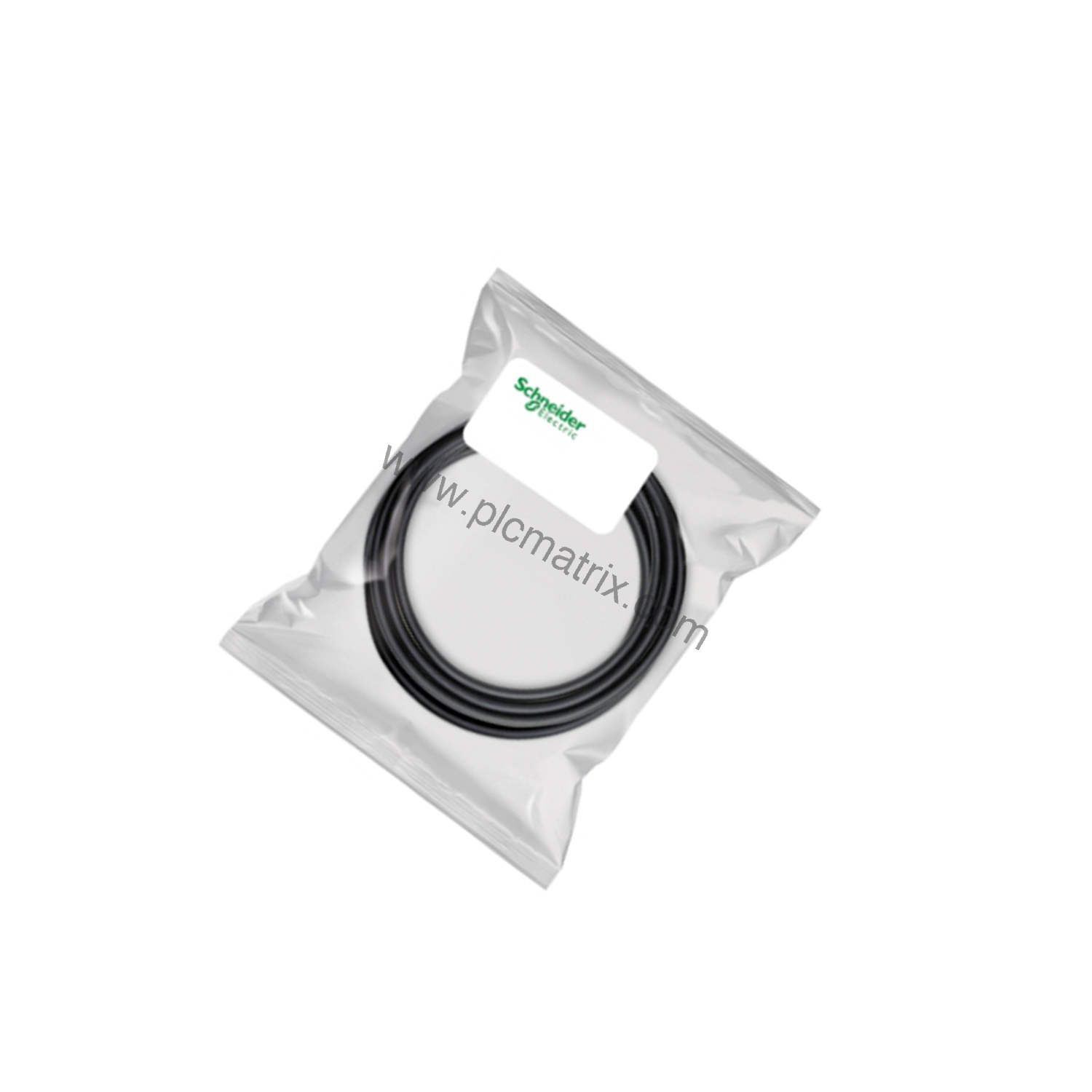

Schneider ABFM04S201 Modicon Quantum Cabled Connector for Analogue Output

Introduction

When your Modicon Quantum PLC system requires reliable analogue signal output connections, the ABFM04S201 cabled connector from Schneider Electric provides a robust solution. Part of the Modicon Quantum series, this accessory simplifies wiring for multi-channel analogue output modules, ensuring consistent signal transmission in industrial environments.

Technical Specifications Breakdown

The ABFM04S201 features four channels, making it suitable for applications needing multiple analogue outputs. Its cable length of 6.6 feet (2 meters) offers flexibility in panel layout and equipment placement. The connector type is SUB-D with 25 ways, supporting AWG 24 wire gauge and a wire section of 0.22 mm². Electrical ratings include a maximum current of 1 ampere and voltage up to 250 volts. The operating temperature range spans from -20 °C to +60 °C, allowing use in varied industrial conditions. Insulation material is PVC, and the cable construction is multi-conductor for durability.

Industry Applications

In process control systems, the ABFM04S201 connects analogue output modules like the 140ACO02000 to field devices such as actuators or signal converters. Its 4-channel design enables simultaneous output of multiple control signals, reducing wiring complexity. For manufacturing lines requiring precise analogue control, this connector ensures stable signal transmission over its 2-meter cable length, minimizing signal degradation.

Installation & Setup Guidance

To install the ABFM04S201, verify compatibility with your Modicon Quantum analogue output module, such as the 140ACO02000. Securely connect the SUB-D connector to the module's port, ensuring the 25 pins align correctly. Route the multi-conductor cable away from high-voltage power lines to avoid interference. The AWG 24 wire section supports standard termination methods; use appropriate tools for secure connections.

Maintenance & Reliability

Regularly inspect the ABFM04S201 cable and connector for signs of wear, especially at stress points near the connector and along the cable length. The PVC insulation resists common industrial chemicals and abrasion, but periodic checks help prevent signal loss. Operating within the -20 °C to +60 °C range ensures long-term reliability. For cost-effective operations, routine inspection reduces unplanned downtime.

Compatibility & Integration

The ABFM04S201 is designed for the Modicon Quantum series and is compatible with the 140ACO02000 analogue output module. Its SUB-D connector and 25-way configuration integrate seamlessly with Quantum backplanes and I/O modules. Verify your specific module's channel count and signal type to ensure proper matching.

Selection Guide & Purchasing Advice

Before ordering the ABFM04S201, confirm your system requires a 4-channel analogue output connector with a 6.6-foot cable. Check that your module uses a SUB-D 25-pin interface. For current availability and lifecycle status, contact BluePLC Industrial. Our team can verify stock and recommend alternatives if needed.
