Schneider ABFC08R12R Modicon Momentum Commoning Link for Reliable Connections

Product Overview

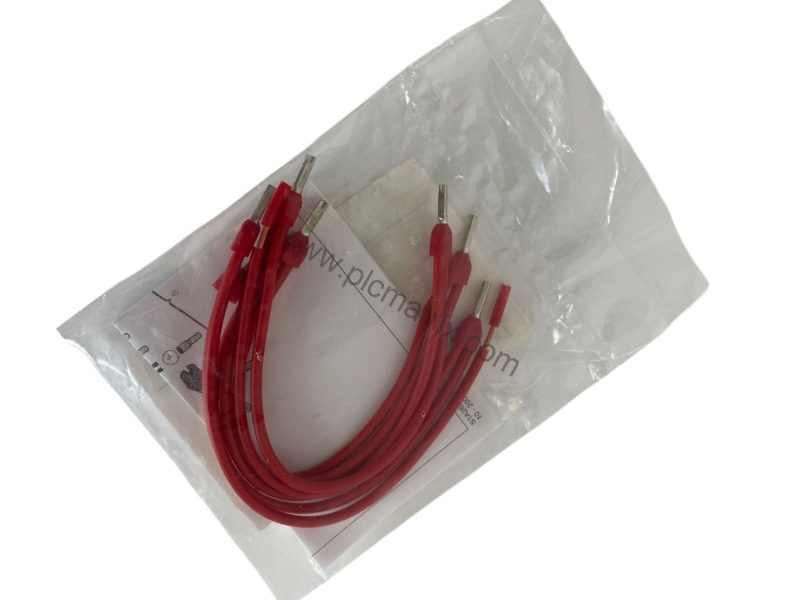

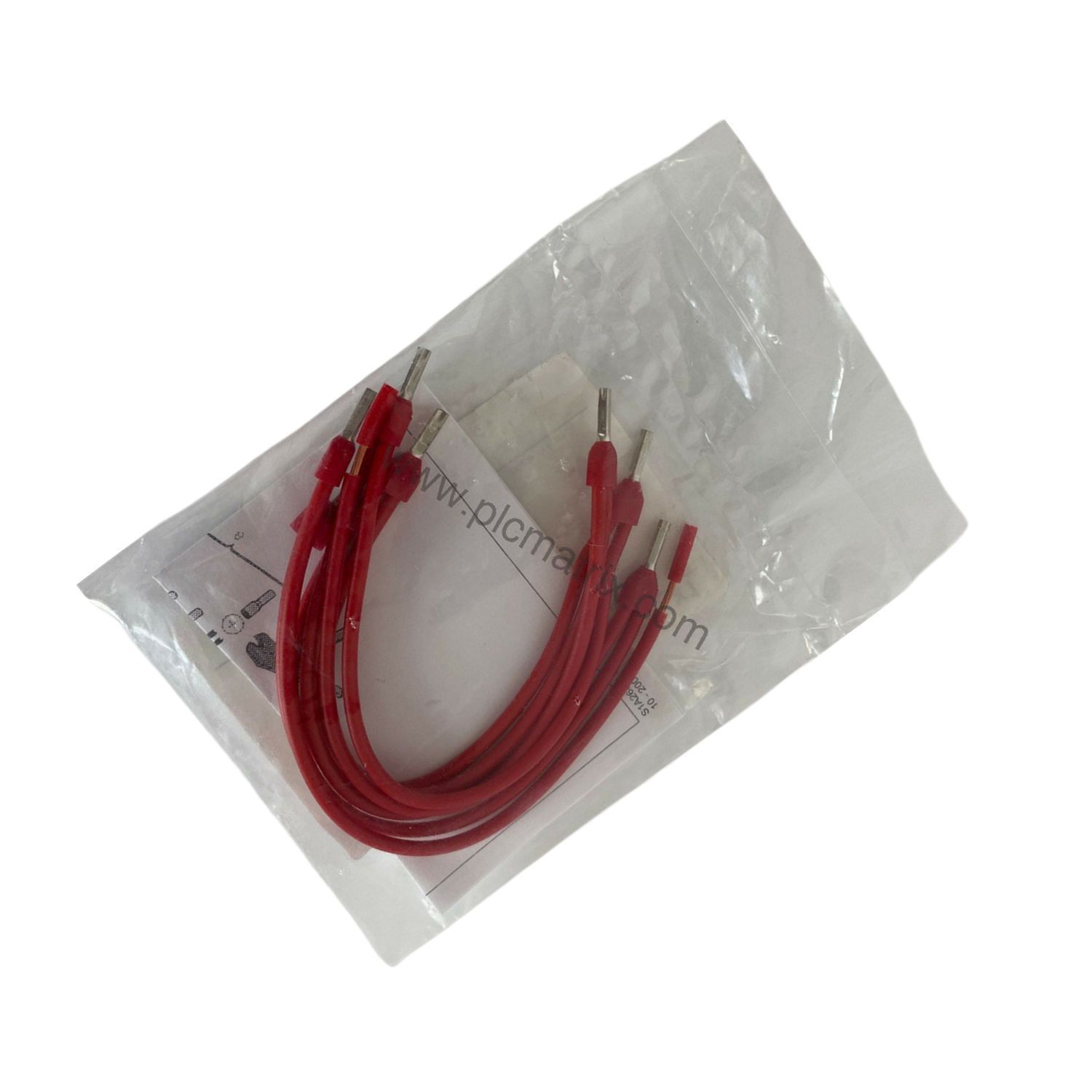

When space is tight and connection reliability is critical, the Schneider ABFC08R12R commoning link from the Modicon Momentum series delivers a straightforward solution. This compact component simplifies wiring in control panels and automation enclosures, reducing installation time and potential failure points. Its red color aids quick identification during maintenance, while the lightweight 0.02 kg design eases handling.

Technical Specifications Breakdown

The ABFC08R12R operates reliably across a wide ambient temperature range of 0 to 60 degrees Celsius, ensuring stable performance in typical industrial environments. It withstands up to 95% non-condensing humidity during both operation and storage, making it suitable for humid conditions. With a maximum altitude rating of 1000 meters above sea level, it maintains consistent functionality in various geographic locations. CE compliance confirms adherence to essential safety and quality standards.

Industry Applications

In manufacturing plants, the ABFC08R12R is used to create common reference points for sensor and actuator wiring, simplifying troubleshooting and reducing wiring errors. For example, in a packaging line, this commoning link helps consolidate multiple signal returns into a single point, improving system organization and reducing downtime during maintenance. Its compact dimensions (3.15 x 2.76 x 0.31 inches) allow installation in crowded cabinets without sacrificing accessibility.

Installation & Setup Guidance

Mount the ABFC08R12R securely on a DIN rail or panel using standard hardware. Ensure ambient temperature stays within 0 to 60 degrees Celsius and humidity below 95% non-condensing. Verify that altitude does not exceed 1000 meters above sea level. Use appropriate wire gauges for the connected circuits and torque terminals to manufacturer specifications. Label the link clearly for future maintenance.

Maintenance & Reliability

Periodically inspect the ABFC08R12R for signs of corrosion, loose connections, or physical damage. Given its humidity tolerance, it remains reliable in damp environments when condensation is avoided. Regular visual checks and tightening of connections help extend service life and prevent intermittent faults. Following these simple steps reduces unplanned downtime and supports long-term system reliability.

Selection Guide & Purchasing Advice

Before ordering, confirm that the ABFC08R12R matches your system's voltage and current requirements. Verify compatibility with your Modicon Momentum base and other components. BluePLC Industrial stocks this genuine Schneider part and can advise on availability and lifecycle status. Contact our team to ensure the correct fit for your application and to discuss bulk pricing options.
