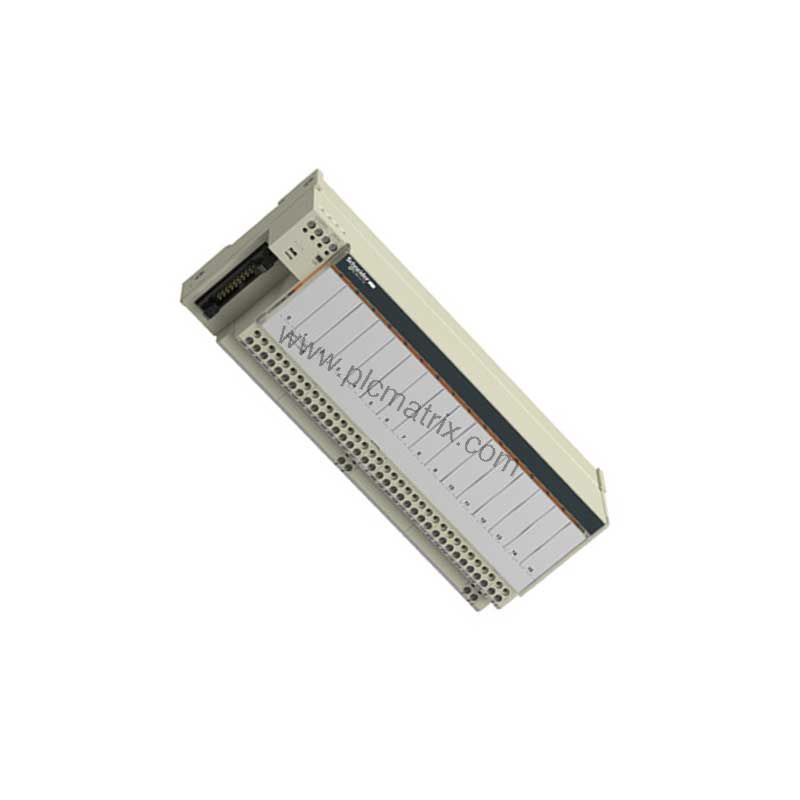

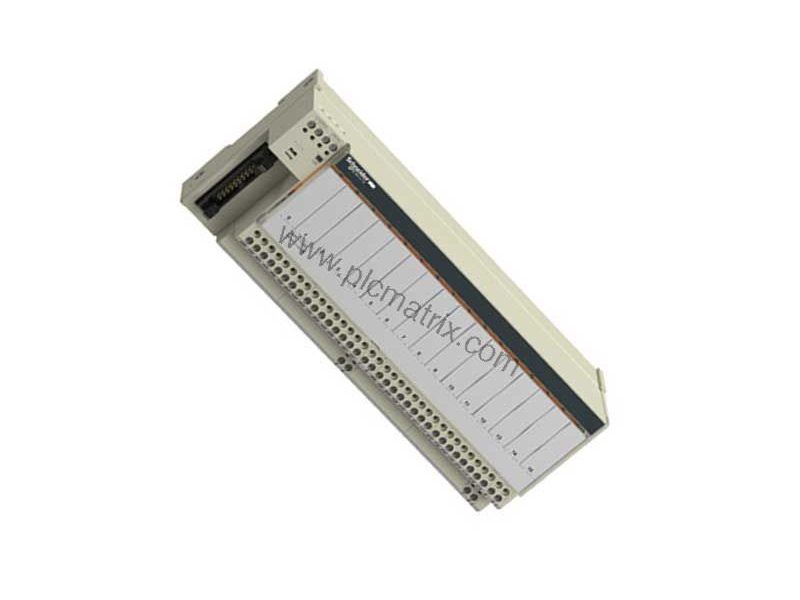

Schneider ABE7R16S210 Electromechanical Output Relay Sub-Base, 16 Channels

Product Overview

The Schneider ABE7R16S210 is an electromechanical output relay sub-base from the Modicon ABE7 range. It provides 16 channels of relay output for preactuator end applications, with a rated supply voltage of 24 V DC for the PLC end. Each channel features 2 terminals, and the sub-base uses volt-free polarity distribution for flexible wiring.

Technical Specifications

The ABE7R16S210 delivers a maximum current per output common of 10 A and 5 A per channel at the preactuator end. Its minimum switching current is 10 mA at >= 5 V, with a drop-out voltage of 2.4 V at 20 °C (PLC end). Switching frequency is <= 0.5 Hz at rated current and <= 10 Hz under no load. The relay contacts are 1 NO (normally open) for the preactuator end, with a maximum switching voltage of 250 V AC 50/60 Hz and 30 V DC, conforming to IEC 60947-5-1. Electrical durability reaches 500,000 cycles under various load conditions, and mechanical durability is 20,000,000 cycles.

Industry Applications

This relay sub-base is ideal for discrete automation tasks such as controlling solenoids, contactors, and indicator lights in manufacturing lines, packaging machinery, and material handling systems. Its 16-channel density suits applications requiring multiple output points in a compact footprint.

Installation & Setup

Mount the ABE7R16S210 on a 35 mm symmetrical DIN rail using the integrated clips, or on a solid plate with a fixing kit (screws). The removable terminal block simplifies wiring and maintenance. Tighten terminals to 0.6 N·m using a flat Ø 3.5 mm screwdriver. Ensure ambient operating temperature stays between -5 and 60 °C.

Maintenance & Reliability

With an electrical reliability of 1e-8 and IP2X degree of protection, the ABE7R16S210 offers dependable performance in industrial environments. Periodic inspection of relay operation and terminal tightness is recommended to maintain long service life.

Compatibility & Integration

Part of the Modicon ABE7 family, this sub-base integrates with Schneider PLC systems. It carries certifications including GL, CSA, DNV, UL, and EAC, ensuring broad acceptance in global automation projects.

Buying Guide

Before purchasing, verify that your system supports 24 V DC supply and volt-free relay outputs. The ABE7R16S210 is available from BluePLC Industrial, a trusted supplier of industrial automation parts. Contact us for current availability and lifecycle status.
