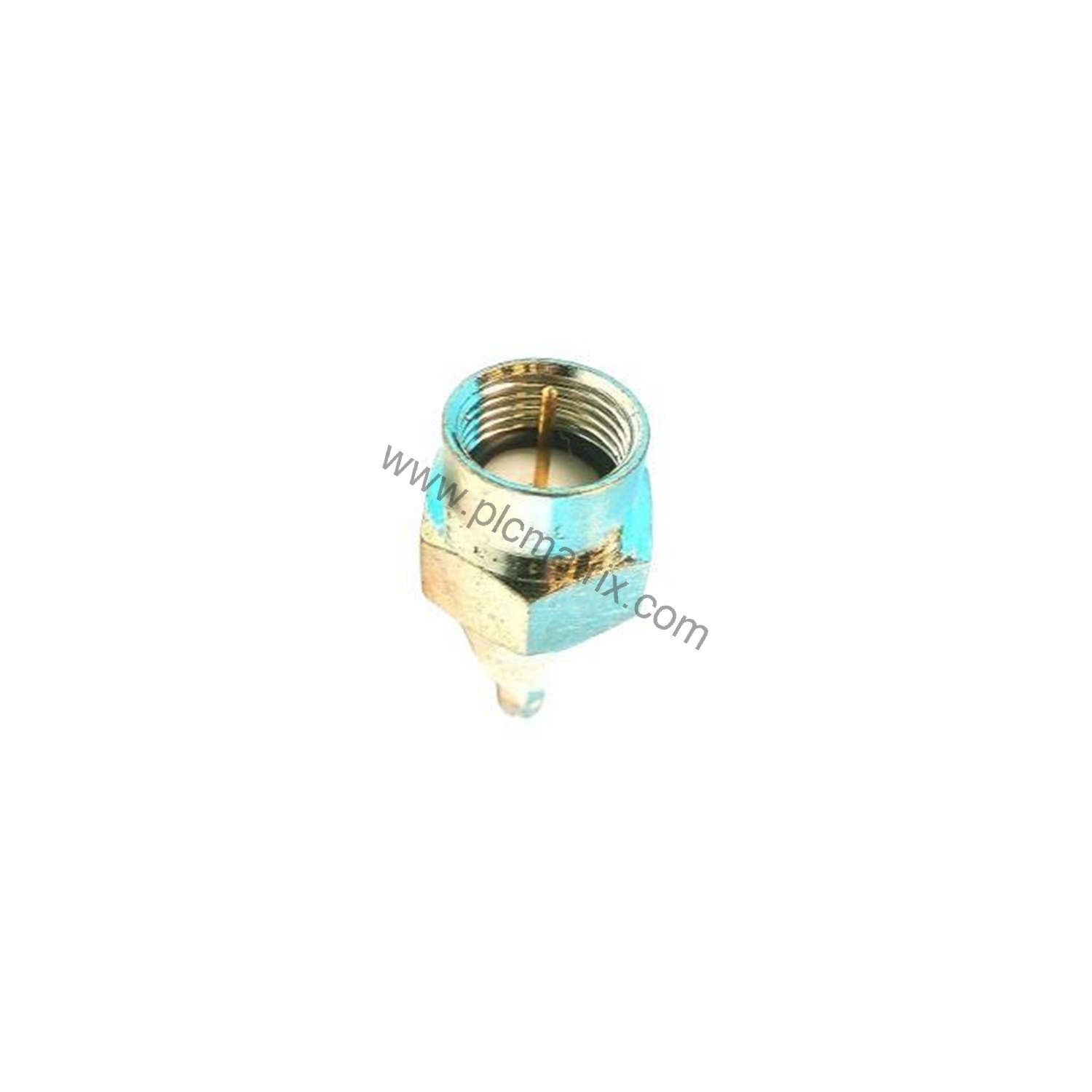

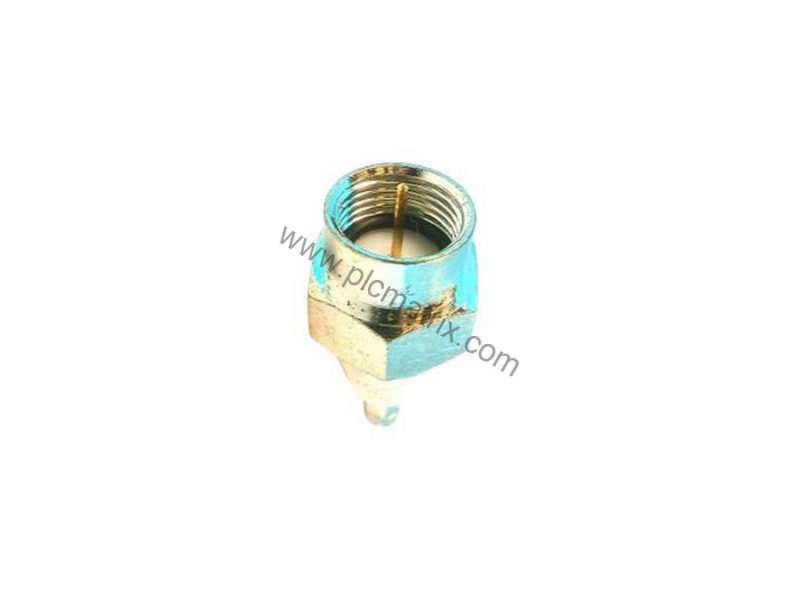

Schneider 52-0422-000 Trunk Terminator for Modicon Quantum Coaxial Networks

Why Signal Termination Matters in Industrial Automation

When signal reflections disrupt communication in coaxial networks, data integrity suffers and system performance degrades. The Schneider 52-0422-000 trunk terminator directly addresses this challenge, providing reliable termination for Modicon Quantum architectures in automotive automation environments.

Product Overview

The Schneider Electric 52-0422-000 is a trunk terminator designed for coaxial cable configurations within automation systems. Part of the Modicon Quantum product line, this single-unit device prevents signal disruptions and reflections, ensuring optimal signal integrity in coaxial networks. It operates with a characteristic impedance of 75 Ω and efficiently manages power dissipation up to 75 W.

Technical Specifications Breakdown

Three key parameters define the 52-0422-000 performance:

Termination Impedance (75 Ω): This characteristic impedance matches standard coaxial cables used in Modicon Quantum networks, minimizing signal reflections that cause data errors.

Power Handling Capacity (75 W): The terminator dissipates up to 75 watts of power safely, ensuring stable operation even under high signal loads.

Thermal Performance: Engineered for stable operation across industrial temperature ranges, the unit maintains consistent termination characteristics in demanding factory floor conditions.

Importantly, this product is not RoHS compliant and falls outside Schneider's Green Premium sustainability classification. Verify compliance requirements for your region before ordering.

Industry Applications

The 52-0422-000 trunk terminator excels in two primary scenarios:

Automotive Assembly Lines: In Modicon Quantum-based automation systems controlling robotic welding and assembly stations, the terminator ensures clean signal transmission on coaxial trunk lines, reducing communication errors that cause production stoppages.

Material Handling Systems: For conveyor networks using coaxial cabling, the terminator prevents signal reflections that can corrupt position data from sensors and encoders, improving system reliability.

Installation & Setup Guidance

Installing the 52-0422-000 is straightforward. Connect the terminator to the open end of a coaxial trunk line in your Modicon Quantum network. Ensure the cable's characteristic impedance matches the 75 Ω rating of the terminator. Mount the unit securely in a dry, vibration-free location within the control cabinet. No special tools are required beyond standard coaxial cable preparation equipment. Always power down the system before connecting or disconnecting the terminator.

Maintenance & Reliability

Regular inspection of the coaxial connector and cable for physical damage or corrosion helps maintain signal integrity. The terminator itself is a passive component with no moving parts, requiring minimal maintenance. However, environmental factors such as extreme temperatures, humidity, or exposure to chemicals can degrade performance over time. Periodically verify that the termination impedance remains at 75 Ω using a network analyzer or multimeter. Promptly replace any unit showing signs of physical wear.

Compatibility & Integration

This trunk terminator is optimized for the Modicon Quantum automation platform. It integrates seamlessly with coaxial trunk lines used in Quantum remote I/O and distributed control architectures. While designed for Schneider systems, the terminator can also function in any 75 Ω coaxial network requiring a reliable termination point. Always confirm system compatibility before installation.

Selection Guide & Purchasing Advice

Before purchasing the 52-0422-000, verify that your network uses 75 Ω coaxial cabling and that the terminator's power handling capacity (75 W) meets your system requirements. As a single-unit configuration, order one terminator per trunk line end. BluePLC Industrial stocks this Schneider trunk terminator and can advise on current availability and lifecycle status. Contact us for bulk pricing or expedited delivery options.
