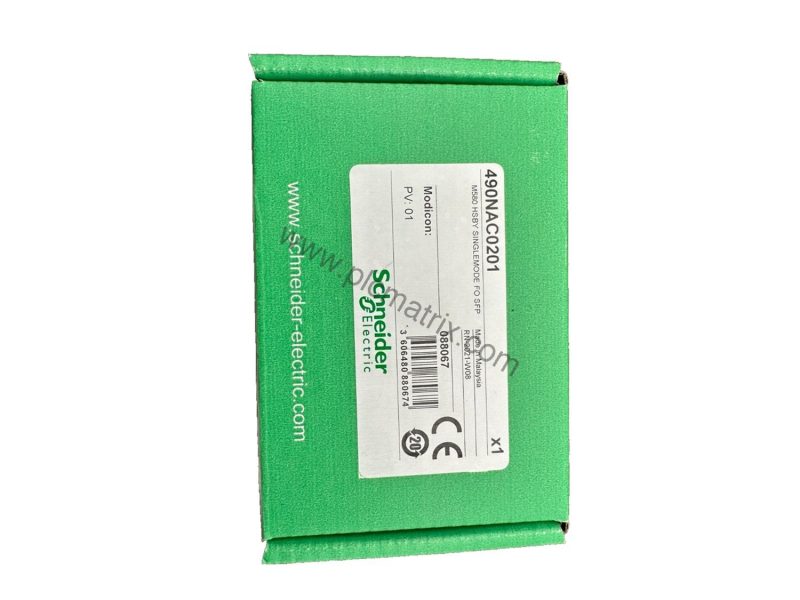

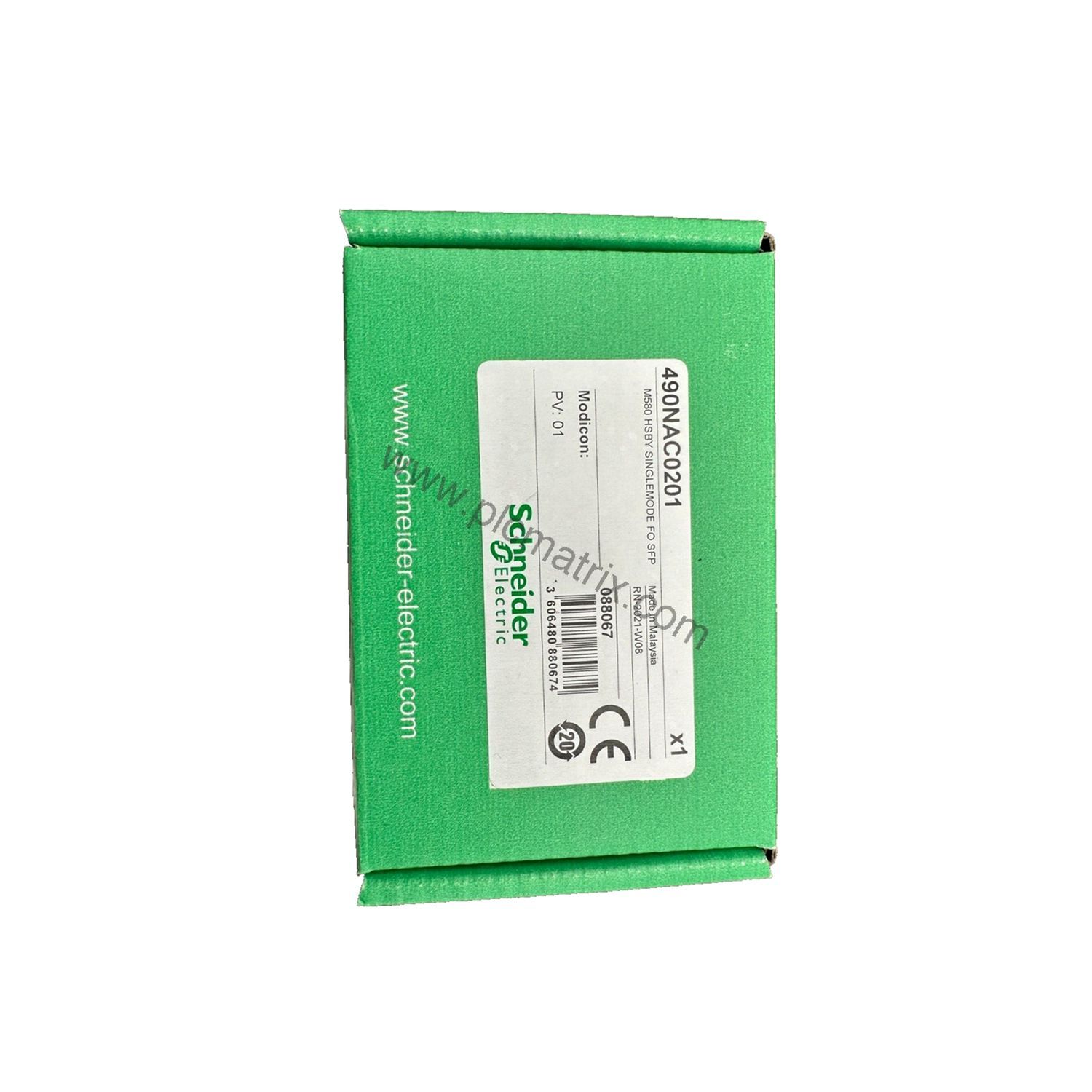

Schneider 490NAC0201 Hot Standby Fiber Optic Adapter for M580 Redundant Processors

Product Overview

When a redundant processor system loses synchronization, production halts and costly downtime begins. The Schneider 490NAC0201 hot standby fiber optic single mode adapter solves this challenge by providing a dedicated, high-speed link between M580 HSBY CPUs. Designed specifically for Modicon M580 redundant processors, this metal-constructed connector accessory ensures that your backup controller stays perfectly synchronized with the primary unit, minimizing the risk of unplanned outages and protecting your bottom line.

Technical Specifications

The 490NAC0201 delivers a transmission rate of 1 Gbit/s over a single mode fiber optic connection, using one LC-LC connector. This high bandwidth ensures that large amounts of process data are exchanged instantly between redundant processors, reducing synchronization delays that can lead to control errors. The metal housing provides robust shielding against electromagnetic interference, enhancing signal integrity and system reliability. With a compact package size of 4.84 x 3.15 x 0.94 inches and a weight of just 1.940 oz, the adapter integrates easily into existing cabinets without requiring additional space.

Cost-Benefit Analysis

Investing in the 490NAC0201 directly reduces total cost of ownership for critical automation lines. By maintaining seamless processor redundancy, it eliminates the need for manual failover interventions and minimizes production losses during switchovers. The 1 Gbit/s fiber optic link ensures that synchronization overhead is negligible, allowing the system to operate at peak efficiency. Over the lifecycle of a plant, the adapter pays for itself by preventing even a single extended downtime event.

Industry Applications

This adapter is ideal for process industries where continuous operation is non-negotiable, such as oil and gas, chemical processing, and power generation. In a refinery, for example, the 490NAC0201 connects two M580 HSBY CPUs to ensure that if the primary controller fails, the backup takes over instantly without process interruption. The single mode fiber optic connection also supports long-distance runs between control rooms and remote I/O racks, making it suitable for large-scale distributed control architectures.

Compatibility & Integration

The 490NAC0201 is purpose-built for the Modicon M580 ecosystem and is specifically compatible with M580 HSBY CPUs. It belongs to the Modicon M580 range and functions as a hot standby fiber optic single mode adapter. Integration is straightforward: simply connect the adapter to the LC-LC fiber optic port on each redundant processor to establish the synchronization link. No additional configuration software is required for the physical connection, simplifying setup and reducing commissioning time.

Selection Guide & Purchasing Advice

Before ordering, verify that your system uses Modicon M580 HSBY CPUs and that you have single mode fiber optic cabling with LC-LC connectors available. The 490NAC0201 is sold as a single unit (package 1) or in a multi-pack of 10 units (package 2) for bulk installations. BluePLC Industrial stocks this adapter and can confirm current lifecycle status and availability. Contact our team to ensure the correct part for your redundant processor application.
