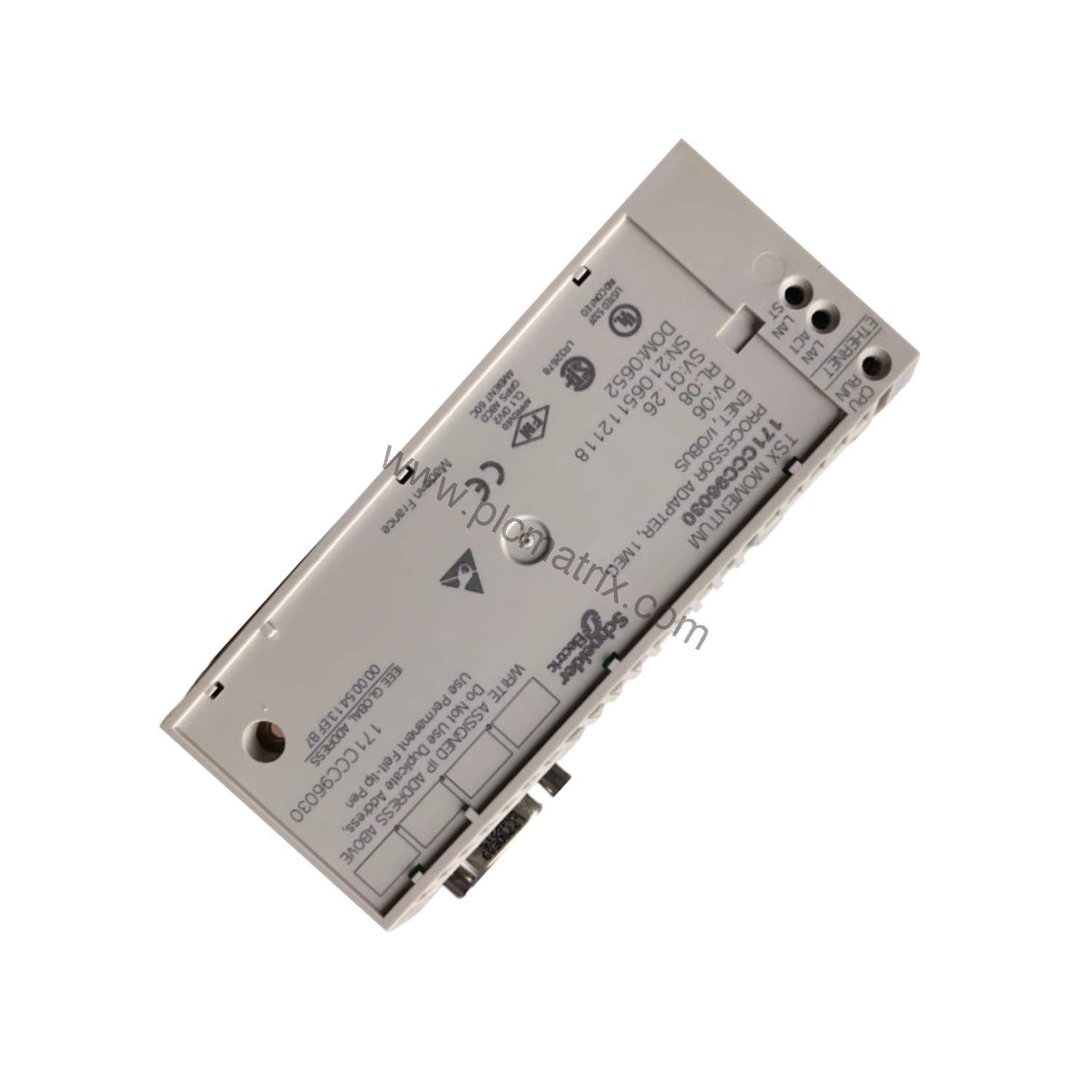

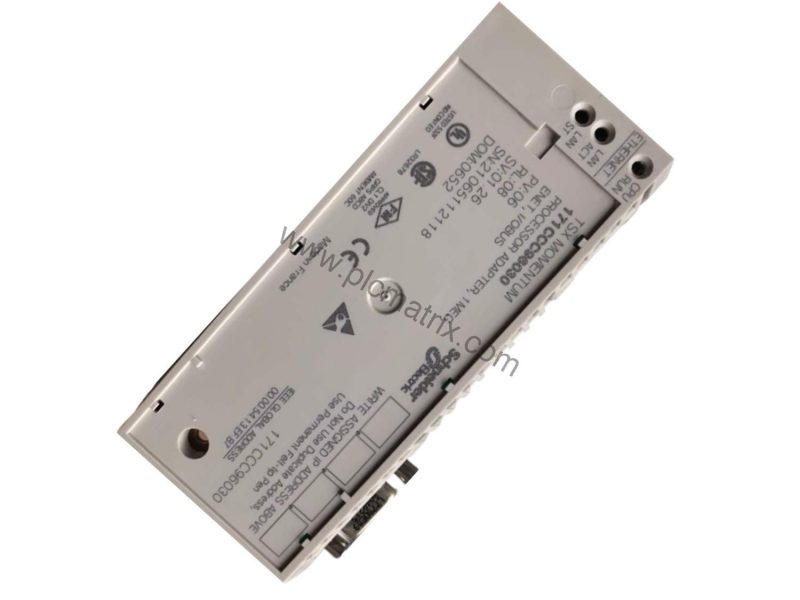

Schneider 171CCC96030 M1/M1E Processor Adapter Module for Modicon Momentum

What Is the 171CCC96030?

When your automation system demands reliable processing and seamless Ethernet connectivity, the Schneider 171CCC96030 M1/M1E Processor Adapter Module delivers. Part of the Modicon Momentum platform, this module operates at a clock frequency of 50 megahertz and uses Ethernet as its communication protocol. It integrates into control architectures requiring a compact, high-performance processor adapter.

Technical Specifications Breakdown

The 171CCC96030 includes 1 megabyte of flash memory and 544 kilobytes of RAM, providing ample space for program and data storage. Its register input/output processor capacity reaches 26,048 words at a 16-bit word length, handling substantial I/O data. The module supports a discrete I/O processor capacity of 8192 inputs and 8192 outputs. Scan time is specified as 1 millisecond per 1 Kinstruction. Rated supply voltage is 5.0 V DC +/-5%, supplied by the Momentum I/O base. The module weighs 0.093 lb (0.042 kg) and operates in ambient temperatures from 0 to 60°C without condensation.

Industry Applications

In manufacturing lines, the 171CCC96030 manages discrete and register I/O for machine control, leveraging its Ethernet port for Modbus TCP messaging and I/O scanning. For building automation, it processes data from sensors and actuators across multiple drops, with up to 128 I/O words per drop in Concept software. Its 50 MHz clock and fast scan time ensure responsive control in packaging or material handling systems.

Installation & Setup Guidance

Mount the 171CCC96030 on a Momentum I/O base, which supplies the required 5.0 V DC power. Connect the Ethernet port to your network using standard cabling. The I/O bus port links to expansion modules. Configure the module using Concept V2.6, Modsoft >= V2.5, ProWORX NxT V2.0, or ProWORX 32 software. Ensure ambient temperature remains between 0 and 60°C and altitude stays below 6,561 feet (2,000 meters).

Maintenance & Reliability

To maximize uptime, inspect the 171CCC96030 periodically for dust accumulation and verify that ventilation around the module remains unobstructed. The module’s Lexan material resists impact, and its protective treatment (TC) guards against environmental stress. Operate within the specified relative humidity range of 5 to 96% without condensation to prevent corrosion. The module withstands shock up to 15 gn peak (11 ms half sine) and vibration of 1 gn / 0.75 mm displacement.

Compatibility & Integration

The 171CCC96030 integrates with the Modicon Momentum automation platform and supports Ethernet services including I/O scanning, Modbus TCP messaging, and web services like rack viewer and data editor. It works with Concept, Modsoft, ProWORX NxT, and ProWORX 32 software. The module includes one Ethernet port and one I/O bus port for connecting to remote I/O drops. Certifications include UL, cUL, and FM Class 1 Division 2 for hazardous locations.

Buying Guide & Purchasing Advice

Before ordering the 171CCC96030, verify that your system uses a Momentum I/O base for power and that your software version is compatible (Concept V2.6 or later). For current availability and lifecycle status, contact plcmatrix.com. We stock new, surplus, and obsolete automation parts from Schneider Electric and other leading brands. Order with confidence knowing our team can help you select the right processor adapter for your application.
