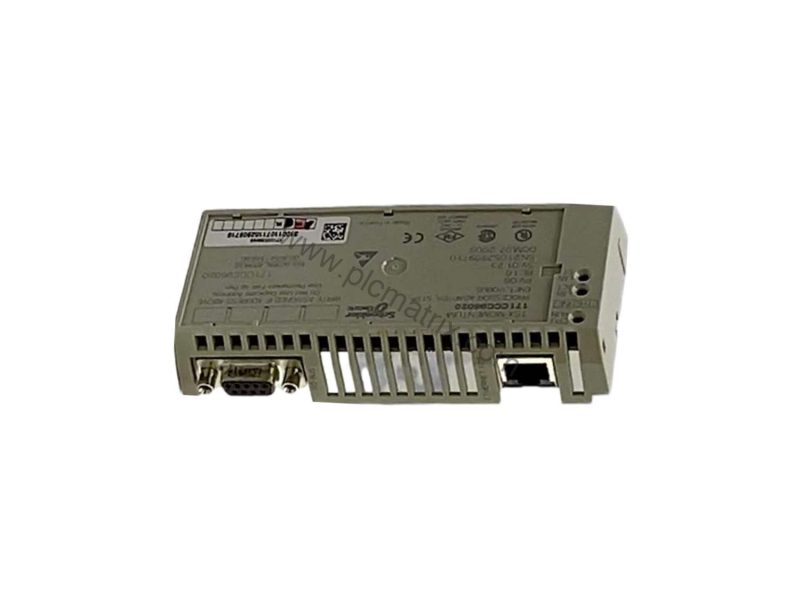

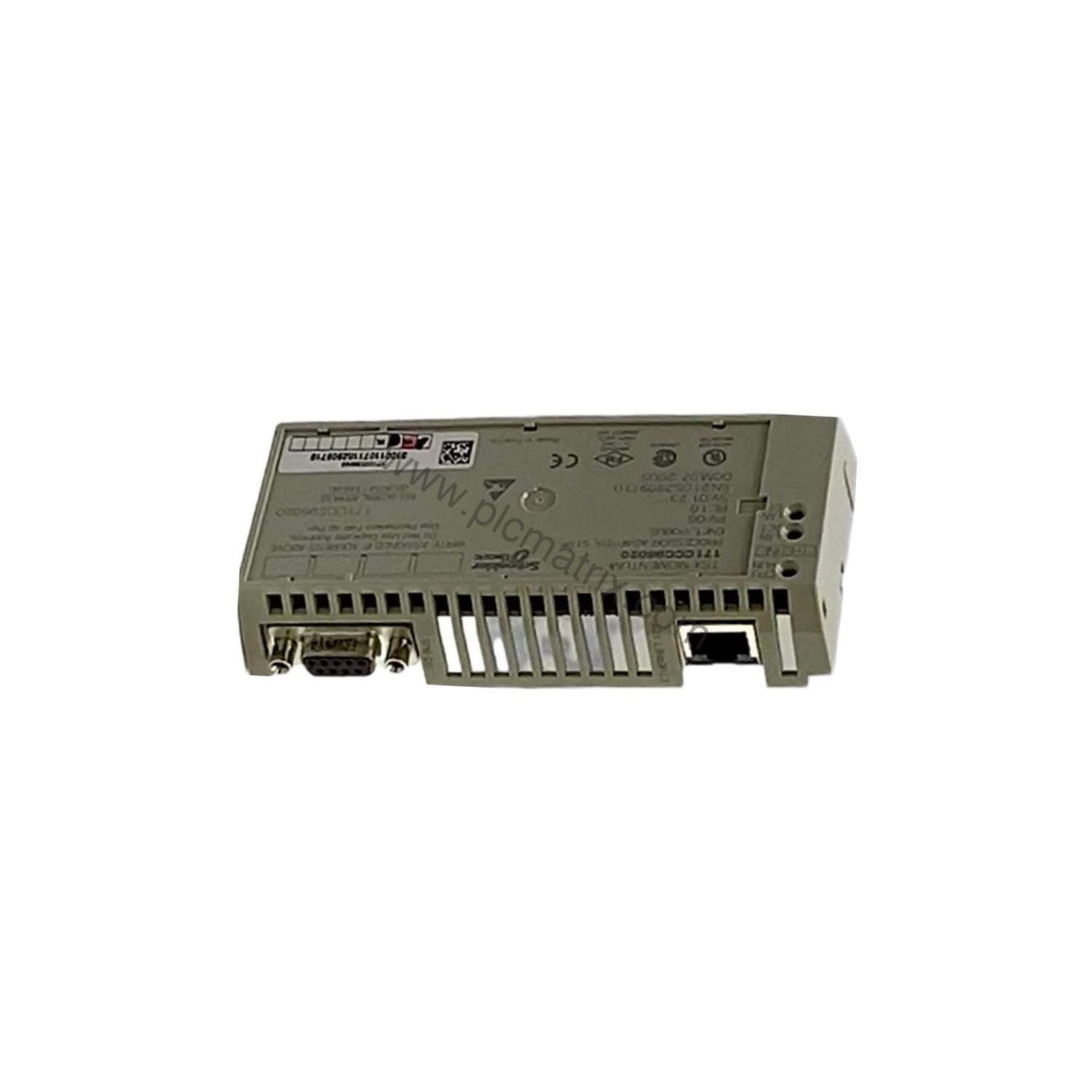

Schneider 171CCC96020C Modicon Momentum Processor Adapter for Cost-Efficient Automation

Product Overview

When industrial automation projects demand high I/O capacity without excessive cost, the Schneider 171CCC96020C processor adapter delivers. Part of the Modicon Momentum series, this processor adapter integrates seamlessly with the Momentum I/O base, offering a robust x86-based architecture at 50 MHz clock frequency. With 512 KB Flash and 544 KB RAM, it handles complex control tasks efficiently, reducing the need for additional hardware and lowering total system cost.

Technical Specifications Breakdown

The 171CCC96020C operates on a 5 VDC ±5% supply voltage, ensuring low power consumption and minimal energy costs. Its 16-bit word length and 18 KB program memory (LL984) support efficient code execution, while 24 KB data memory stores critical process variables. The device supports 8192 discrete inputs and outputs each, plus 26048 register inputs and outputs, enabling large-scale control without expensive expansion modules. This high density reduces per-point cost significantly.

Industry Applications

In material handling systems, the 171CCC96020C manages thousands of sensors and actuators, streamlining operations and cutting downtime. For water treatment plants, its Modbus TCP Ethernet communication enables cost-effective remote monitoring and control, reducing manual intervention. The conformal coating (Humiseal 1A33) protects against humidity and contaminants, extending service life in harsh environments and lowering replacement frequency.

Installation & Setup Guidance

Mount the 171CCC96020C directly onto a Momentum I/O base for secure mechanical and electrical connection. Connect the 5 VDC ±5% power supply to the designated terminals, ensuring proper polarity. Use the Ethernet port for Modbus TCP communication and the I/O bus for local I/O expansion. Verify all connections before powering up to avoid costly rework.

Maintenance & Reliability

Regular inspection of the conformal coating integrity and Ethernet cable connections helps maintain reliable operation. The 0°C to 60°C operating temperature range suits most industrial environments, reducing climate control expenses. Periodic firmware updates via the Ethernet port can enhance performance and security, maximizing return on investment over the product's lifecycle.

Compatibility & Integration

The 171CCC96020C integrates with Modicon Momentum I/O bases and communicates via Modbus TCP, making it compatible with most PLCs and SCADA systems. Its 16-bit architecture and LL984 programming simplify migration from older platforms, preserving existing code investments. This interoperability reduces integration costs and speeds up deployment.

Selection Guide & Purchasing Advice

Before ordering, verify that your system uses a Momentum I/O base and supports 5 VDC ±5% supply. Confirm that the 16-bit word length and LL984 programming meet your application requirements. BluePLC Industrial stocks the 171CCC96020C and can advise on availability and lifecycle status. Choosing this processor adapter minimizes upfront hardware costs while delivering scalable performance.
