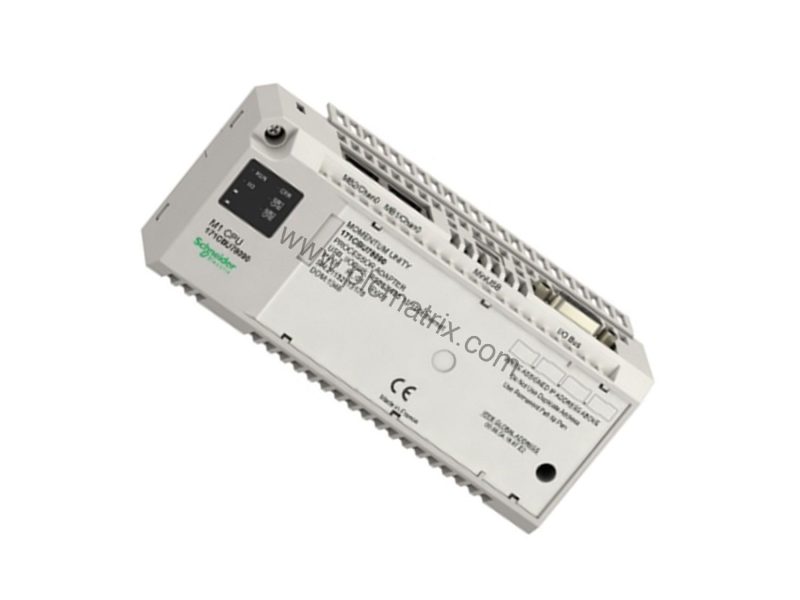

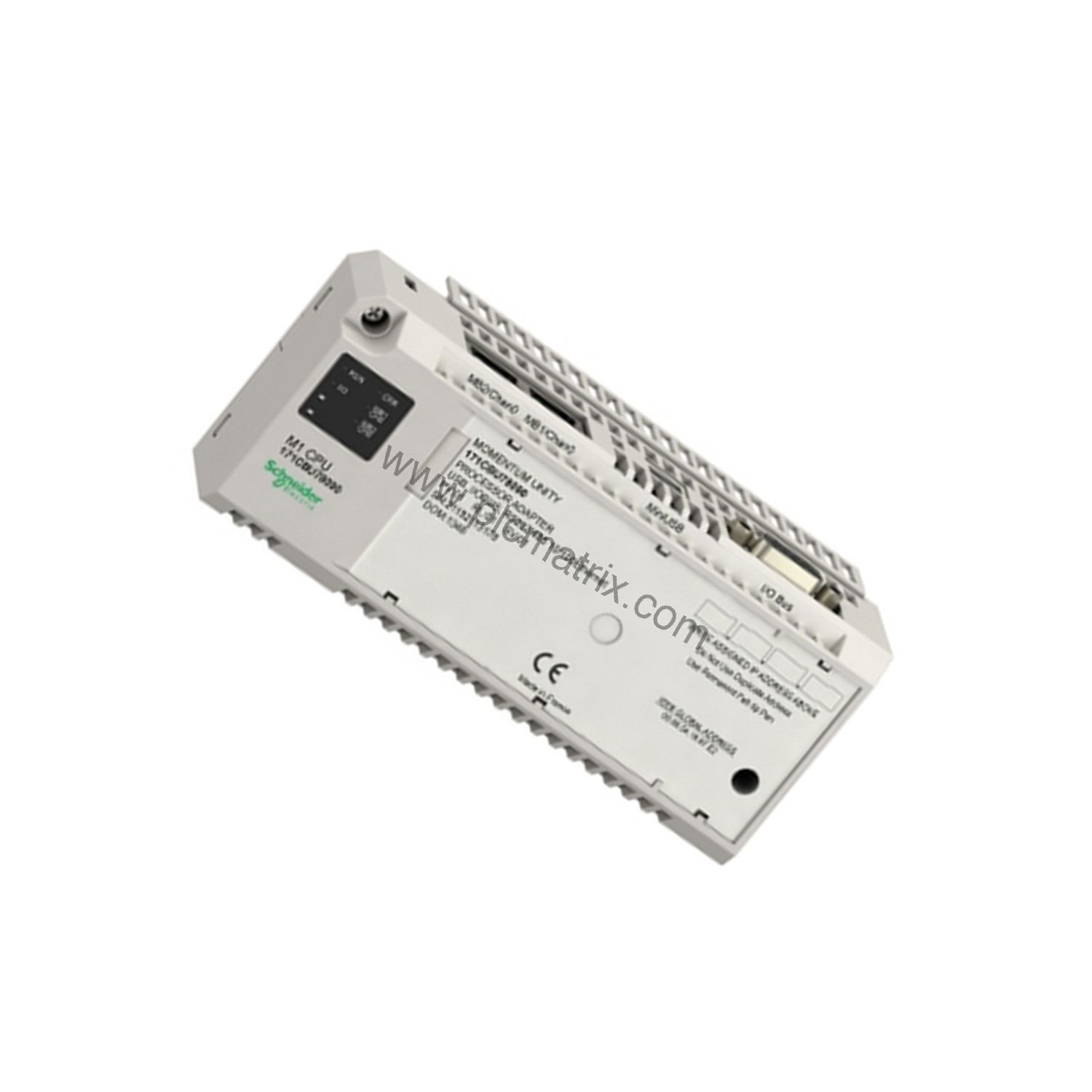

Schneider 171CBU78090 Modicon Momentum Processor 333 MHz 32-bit

Product Overview

When your automation system demands reliable and fast processing, the Schneider 171CBU78090 delivers. This processor from the Modicon Momentum series uses the Spear 320s architecture to handle complex tasks efficiently. With a 32-bit word length and a clock frequency of 333 MHz, it processes instructions quickly, making it ideal for demanding industrial environments.

Technical Specifications Breakdown

The 171CBU78090 operates on a supply voltage between 4.75 and 5.25 V, ensuring stable performance. It supports multidrop Modbus topology, allowing connection of up to 32 devices. The processor manages up to 2048 inputs and 2048 outputs, providing flexibility for extensive I/O configurations. Each Kinstruction executes in just 83 nanoseconds, enabling rapid task processing. The unit draws 500 mA at 5 V DC, optimizing power usage. It also includes 26048 register words for substantial data handling.

Industry Applications

In manufacturing lines, the 171CBU78090 coordinates multiple machines via Modbus, ensuring synchronized operations. Its 2048 I/O capacity suits large-scale material handling systems. For process control, the processor's fast instruction execution (83 ns per Kinstruction) supports real-time monitoring and adjustments, reducing downtime and improving throughput.

Installation & Setup Guidance

Mount the 171CBU78090 on a 35 mm symmetrical DIN rail for secure installation. Ensure the supply voltage stays within 4.75 to 5.25 V DC. Connect devices using multidrop Modbus topology, respecting the 32-device limit. Verify that the total I/O does not exceed 2048 inputs and 2048 outputs. The IP20 rating means it is suitable for indoor, clean environments.

Maintenance & Reliability

Regularly inspect the processor for dust accumulation, as IP20 offers limited protection. Check connections to ensure stable voltage within the specified range. The shock resistance of 15 gn for 11 ms ensures durability under standard industrial vibrations. Routine verification of Modbus communication integrity helps maintain reliability.

Compatibility & Integration

The 171CBU78090 integrates seamlessly with Modicon Momentum systems using multidrop Modbus topology. It works with up to 32 devices, making it suitable for distributed automation networks. The processor's 32-bit architecture and 333 MHz clock speed ensure compatibility with modern I/O modules and software.

Selection Guide & Purchasing Advice

Before purchasing, verify your system's voltage requirements (4.75 to 5.25 V DC) and I/O needs (up to 2048 each). Ensure your network uses multidrop Modbus. For current availability and lifecycle status, contact BluePLC Industrial. They offer reliable sourcing and support for this processor.
