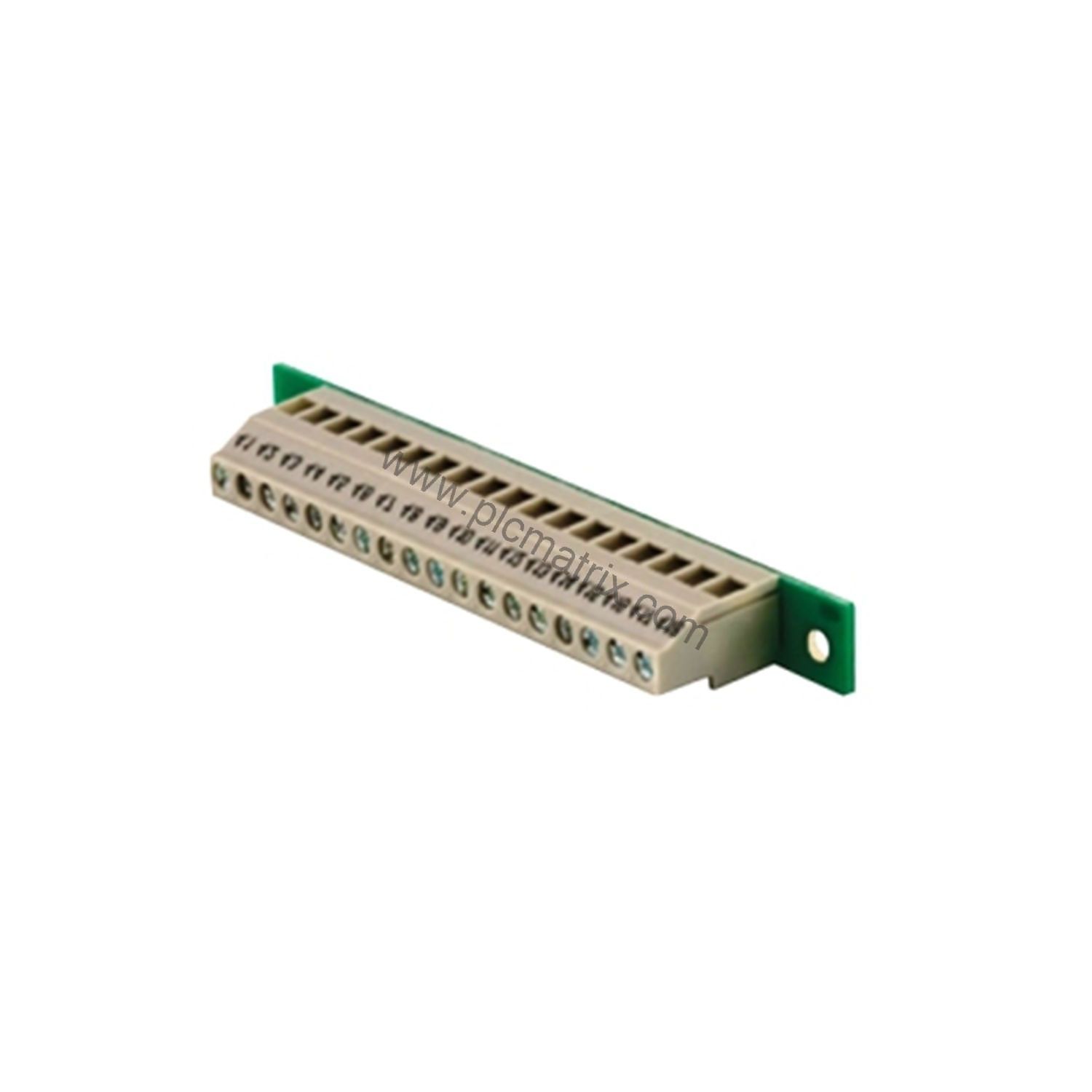

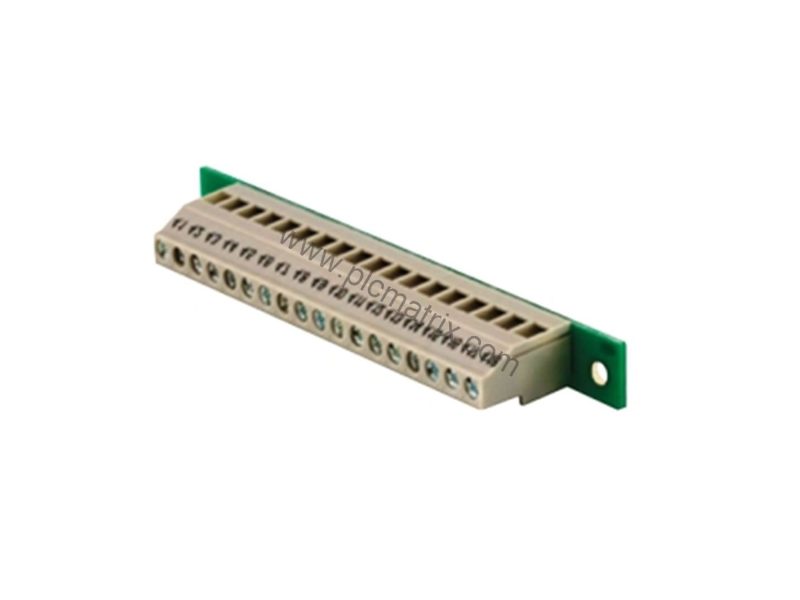

Schneider 170XTS00501 Modicon Momentum Busbar 2 Rows Connection Accessory

Product Overview

When your Modicon Momentum automation platform requires a robust and organized method for connecting field devices, the 170XTS00501 provides a reliable solution. This busbar accessory serves as a protective distribution connector, offering a common connection point for discrete and analog I/O bases. Its screw-type terminals and two horizontal rows simplify wiring while maintaining signal integrity.

Technical Specifications

The 170XTS00501 is engineered for demanding industrial environments. It operates within a temperature range of 0 to 60 degrees Celsius and supports up to 80% non-condensing humidity. The maximum operating altitude is 1000 meters above sea level. Constructed from durable bus bar material, this unit weighs only 0.15 lbs, making it easy to handle during installation. Storage conditions match the operating humidity range, providing flexibility for inventory management.

Industry Applications

This busbar accessory excels in applications requiring centralized field device connections. In a manufacturing line, the 170XTS00501 connects sensors and actuators to discrete I/O bases, reducing wiring complexity. For process control systems, it serves as a protective distribution connector for analog I/O bases, ensuring stable signal transmission. Its compact design and screw terminals make it suitable for control cabinets with limited space.

Installation & Setup Guidance

Mount the 170XTS00501 securely within your Modicon Momentum backplane. Use the screw-type terminals to connect field device wiring, ensuring each wire is properly torqued to manufacturer specifications. The two horizontal rows allow for organized routing of signal and power cables. Verify that the ambient temperature stays within the 0 to 60 degrees Celsius range and that humidity remains below 80% non-condensing to maintain reliable operation.

Maintenance & Reliability

Periodically inspect the busbar for signs of corrosion or loose connections. Given its operating range of 0 to 60 degrees Celsius and 80% humidity tolerance, the 170XTS00501 is built for consistent performance in typical industrial settings. Regular cleaning of the screw terminals with a dry cloth helps prevent oxidation. For installations above 1000 meters, confirm that environmental conditions remain within specified limits to avoid performance degradation.

Selection Guide & Purchasing Advice

Before ordering, verify that your Modicon Momentum system requires a busbar accessory with two horizontal rows. The 170XTS00501 is designed for discrete and analog I/O bases, making it a versatile choice for expanding your automation platform. Contact BluePLC Industrial for current availability and lifecycle status. Our team can help confirm compatibility with your existing Momentum components and provide fast, reliable shipping.
