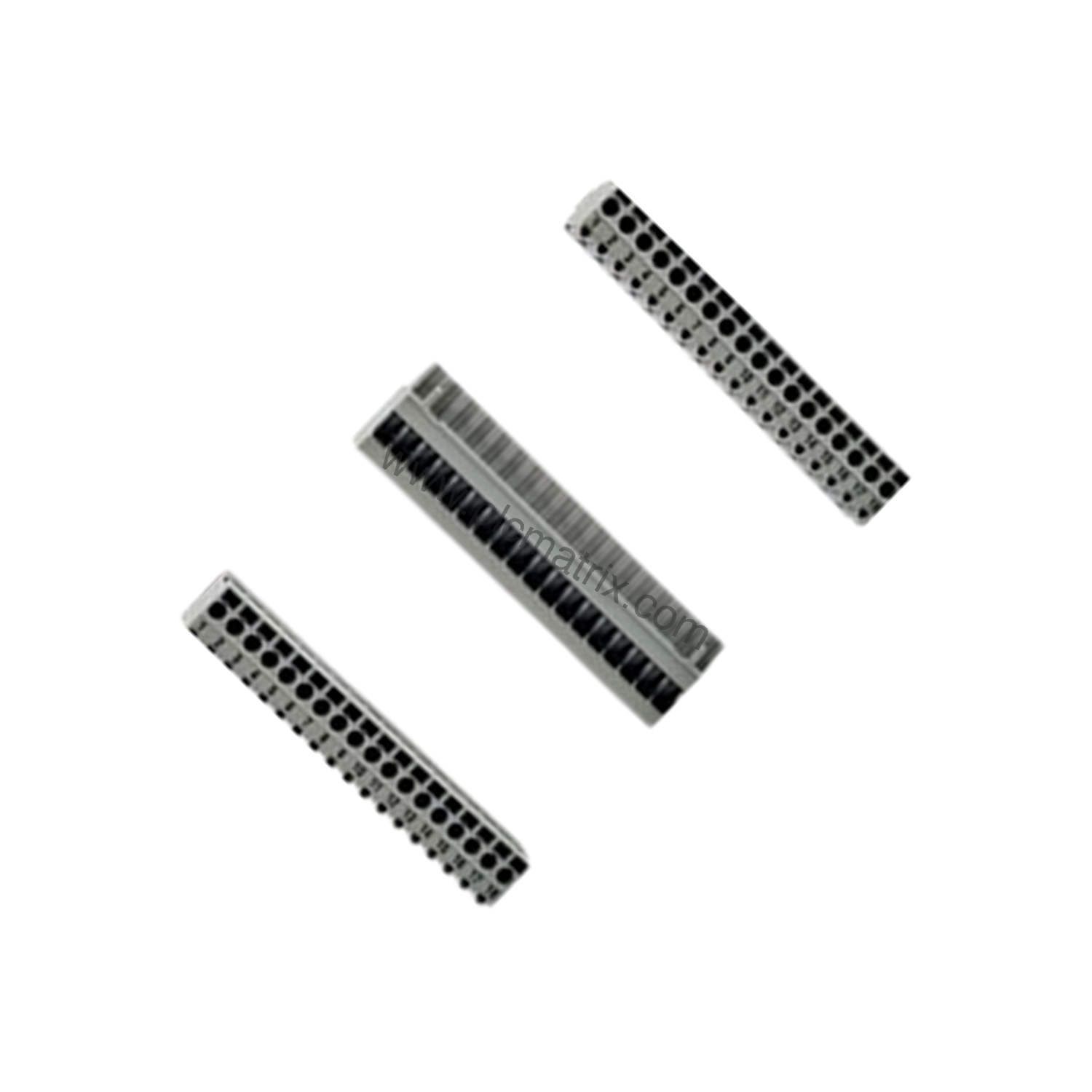

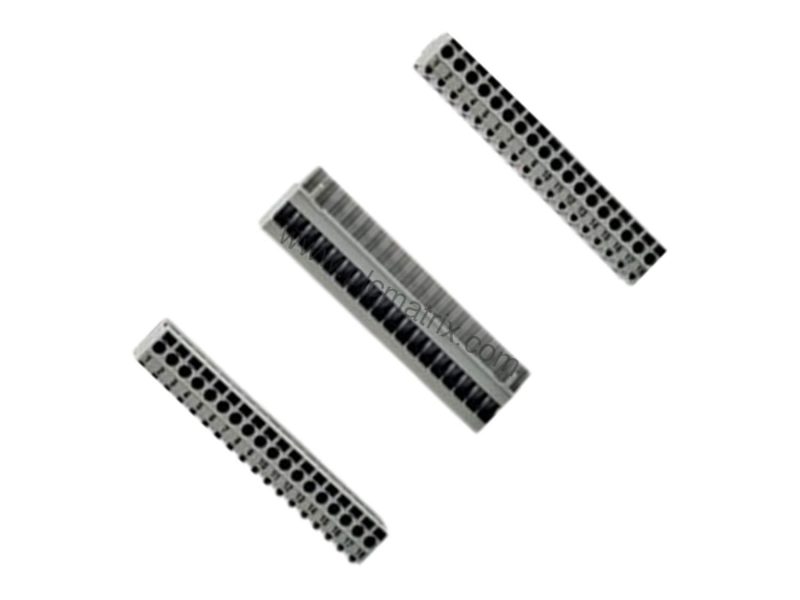

Schneider 170XCP20000 Modicon Momentum Cable Coding Kit

Introduction

Struggling with cable chaos in your control panel? The Schneider Electric 170XCP20000 cable coding kit from the Modicon Momentum series offers a practical solution for identifying and organizing cables in industrial automation systems. This compact accessory helps reduce installation errors and simplifies maintenance, making it a valuable addition to any wiring setup.

Technical Specifications Breakdown

The 170XCP20000 features a compact footprint with dimensions of 1.18 inches in height, 4.33 inches in width, and 9.84 inches in length. It weighs only 53 grams, making it lightweight and easy to handle during installation. The kit operates effectively within an ambient temperature range of 0 to 60 degrees Celsius and can withstand humidity levels up to 95% non-condensing, ensuring reliable performance in various industrial environments. Designed for natural cooling, it requires no additional fans or heat sinks. The unit is also rated for use at altitudes up to 1000 meters above sea level. Compliance with CE standards confirms its adherence to European safety and quality requirements.

Industry Applications

This cable coding kit is ideal for use in manufacturing plants, process control systems, and building automation where clear cable identification is critical. For example, in a large assembly line with hundreds of sensors and actuators, the 170XCP20000 helps technicians quickly trace and replace cables, reducing downtime during troubleshooting. Its compact dimensions allow it to fit into tight enclosures without obstructing airflow, while the wide temperature range supports deployment in unconditioned areas near machinery.

Installation & Setup Guidance

Installing the 170XCP20000 is straightforward. Mount the kit in a clean, dry location within the control cabinet, ensuring adequate clearance for cable routing. Use the provided coding markers to label each cable according to your wiring diagram. Verify that ambient temperature remains between 0 and 60 degrees Celsius and that humidity stays below 95% non-condensing. No special tools are required, and the lightweight design simplifies handling during installation.

Maintenance & Reliability

To maintain reliable operation, periodically inspect the coding kit for any signs of wear or damage. Keep the area clean and free of dust to prevent contamination of the markers. The natural cooling design means no moving parts, reducing the need for routine maintenance. By using the 170XCP20000, you can minimize cable-related errors and extend the service life of your wiring infrastructure, ultimately lowering total cost of ownership.

Buying Guide & Purchasing Advice

Before purchasing, verify that the 170XCP20000 matches your cable diameter and labeling requirements. This kit is part of the Modicon Momentum series, so it integrates seamlessly with other Momentum components. BluePLC Industrial offers this item with fast shipping and expert support. Please confirm current lifecycle status and availability with BluePLC Industrial before ordering to ensure it meets your project timeline.
