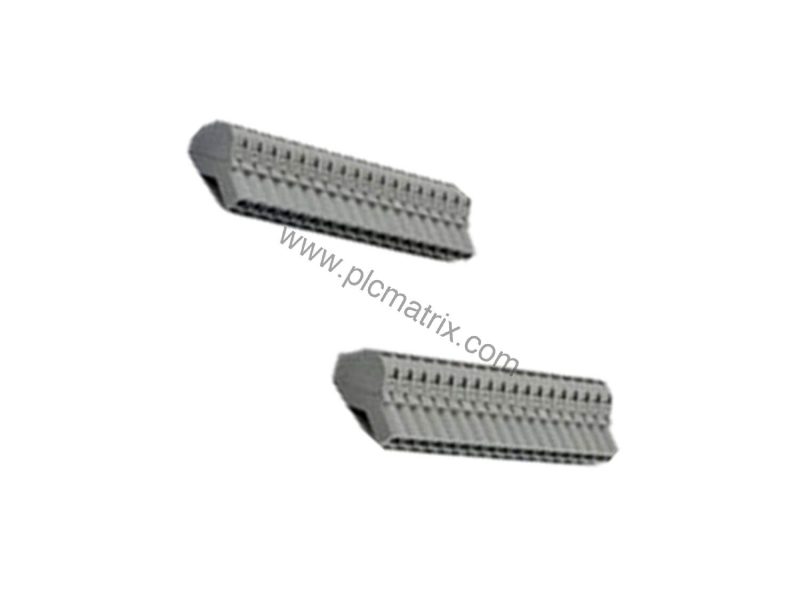

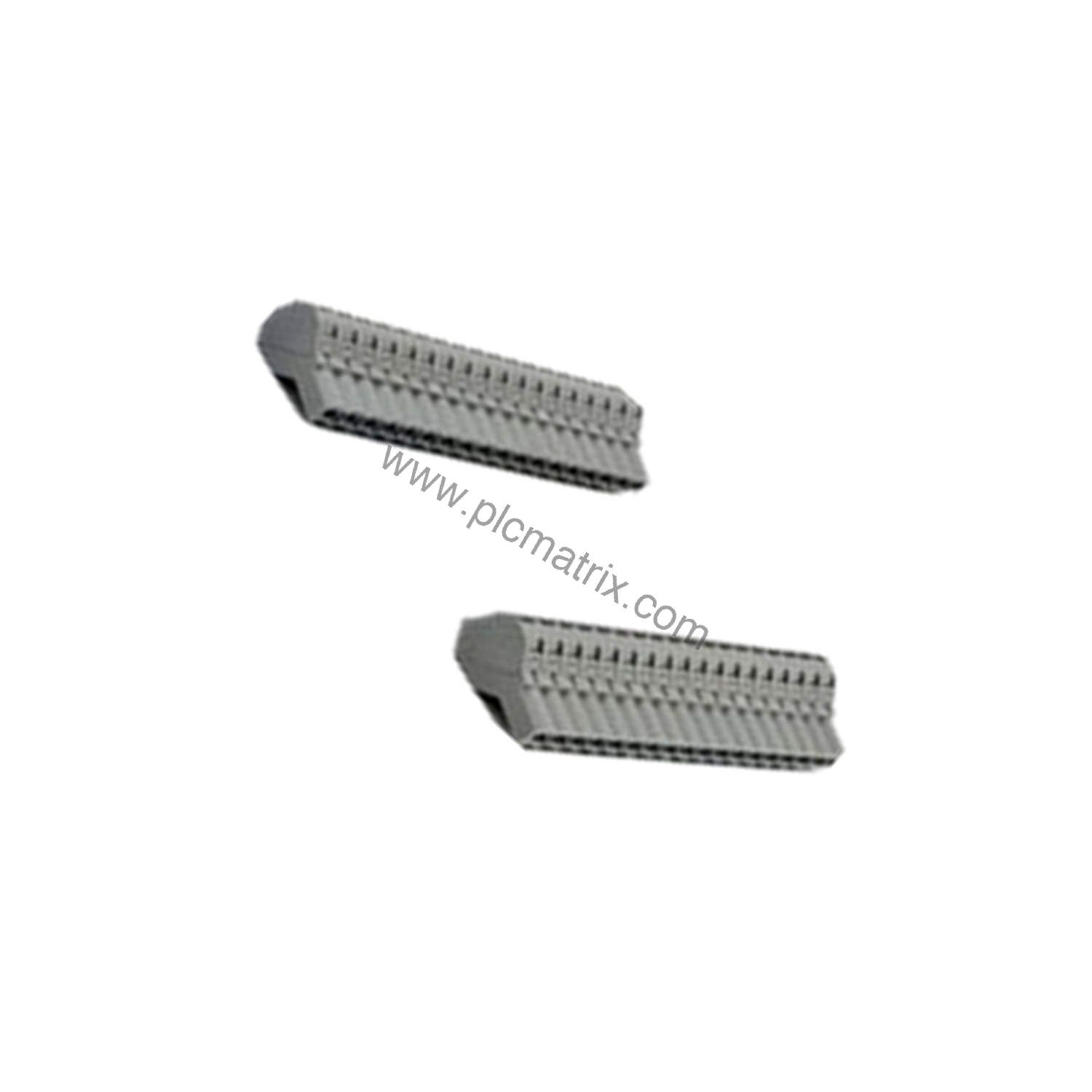

Schneider 170XCP10000 Cable Coding Kit for Modicon Momentum I/O Bases

Product Overview

When cable misalignment disrupts your Modicon Momentum I/O system, the Schneider 170XCP10000 provides a straightforward solution. This cable coding kit is designed specifically for I/O bases within the Modicon Momentum series, ensuring correct cable orientation and reducing installation errors. With a compact profile of 1.18 inches in height, 4.33 inches in width, and 9.84 inches in length, and weighing only 53 grams, it integrates easily into existing panel layouts without adding bulk.

Technical Specifications

The 170XCP10000 operates reliably across a wide range of environmental conditions. It supports an ambient temperature range from 0 degrees Celsius to 60 degrees Celsius, making it suitable for most industrial settings. Humidity tolerance reaches 95% non-condensing during both operation and storage, ensuring performance in damp environments. The kit is rated for altitudes up to 1000 meters above sea level, accommodating installations at moderate elevations. CE compliance confirms adherence to essential safety and performance standards.

Industry Applications

In manufacturing facilities, the 170XCP10000 helps maintain organized cabling for distributed I/O racks, reducing downtime caused by loose or misconnected wires. For process control systems, its compact dimensions allow installation in tight cabinets where space is at a premium. The lightweight design simplifies handling during initial setup or retrofits, speeding up deployment.

Installation Guidance

Install the cable coding kit directly onto the I/O base of your Modicon Momentum system. Ensure the ambient temperature remains within the 0 to 60 degrees Celsius range during installation. Verify that humidity levels stay below 95% non-condensing to avoid moisture-related issues. The kit's natural cooling design requires no additional ventilation, but ensure adequate airflow around the enclosure for optimal thermal management.

Maintenance & Reliability

Periodically inspect the coding kit for signs of wear or damage, especially in high-vibration environments. The robust construction and CE compliance support long-term reliability. Given its passive design, no scheduled component replacement is needed, reducing total cost of ownership. Maintaining the specified environmental limits maximizes service life.

Selection Guide

Before purchasing, confirm that your I/O base is part of the Modicon Momentum series. The 170XCP10000 is not a standalone module but a coding accessory; verify compatibility with your existing base part numbers. BluePLC Industrial stocks this kit and can confirm availability and lifecycle status. Contact our team to ensure the correct fit for your system.
