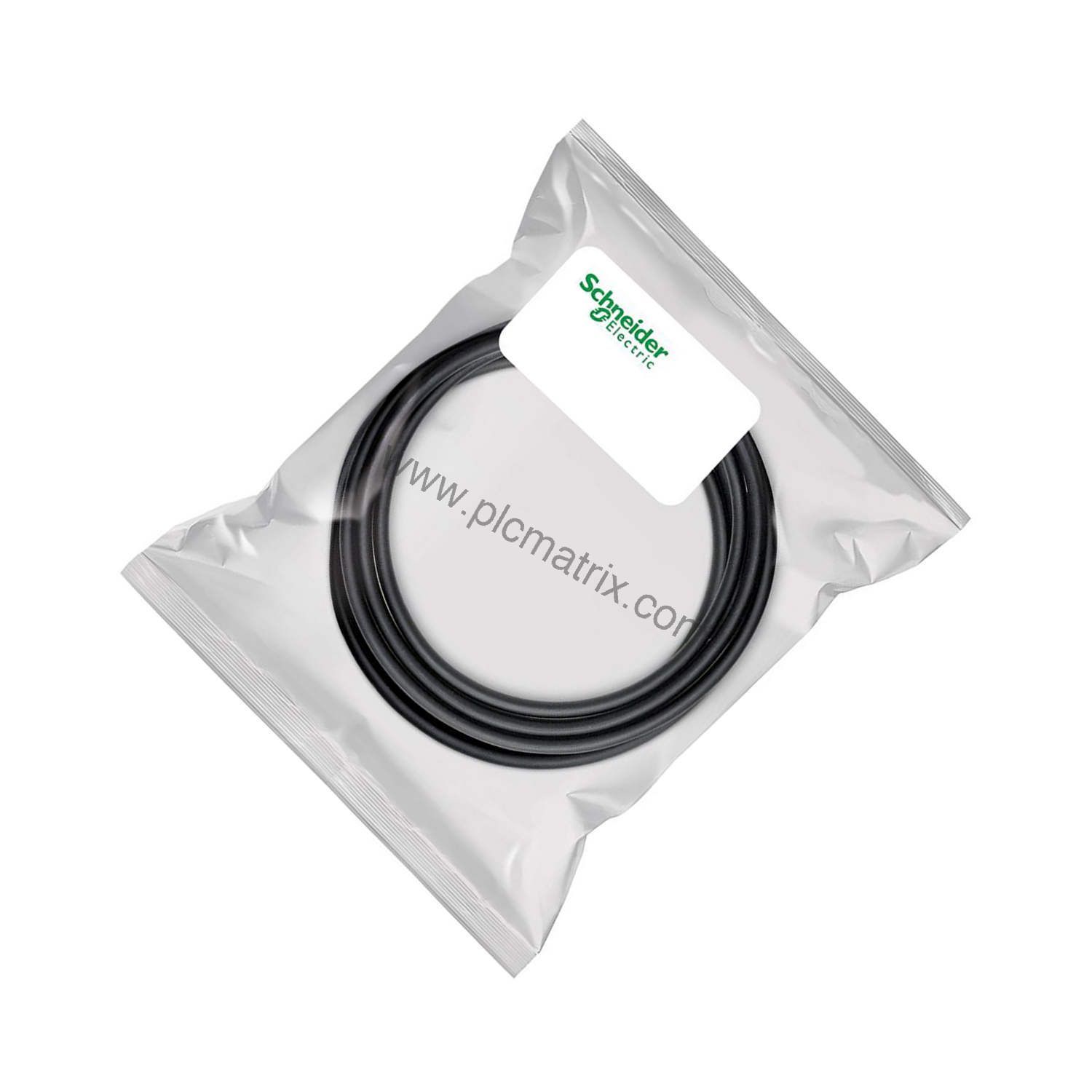

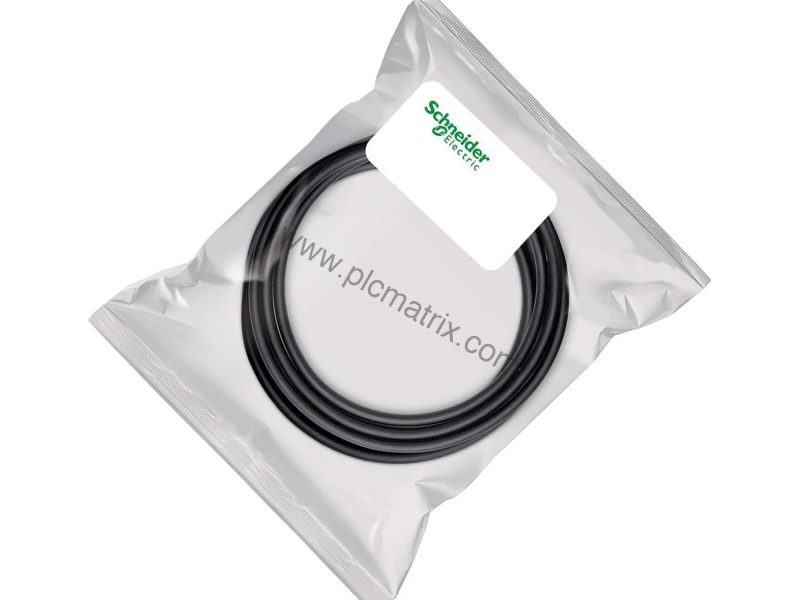

Schneider 170MCI10001 Modicon Quantum Interbus Cable 1m

Product Overview

When your Modicon Quantum system needs a reliable communication link, the Schneider 170MCI10001 cable delivers. This 1-meter cable supports the Interbus protocol, ensuring smooth data exchange across your automation network. Designed for indoor industrial environments, it operates without corrosive chemicals and withstands moderate humidity up to 80% RH without condensation.

Technical Specifications

The 170MCI10001 weighs just 0.19 lbs (0.09 kg), making it easy to handle during installation. It operates in temperatures from 0 to 40 degrees Celsius and can be stored safely between 0 and 50 degrees Celsius. With a maximum operating altitude of 1000 meters above sea level without derating, this cable suits most factory floor applications. Its black color helps blend into existing setups while maintaining a professional appearance.

Industry Applications

In manufacturing lines where Interbus networks connect sensors, actuators, and controllers, the 170MCI10001 provides a dependable physical link. Use it to extend or replace cables in Quantum I/O racks, or to connect remote stations. Its compact length works well for short-distance connections within cabinets or between nearby devices, reducing cable clutter and simplifying troubleshooting.

Installation Guide

Before installing, verify that your system uses the Interbus protocol and that the cable length meets your routing needs. Route the 170MCI10001 away from high-voltage power cables to avoid electromagnetic interference. Secure the cable with appropriate ties or clips to prevent strain on connectors. Ensure the ambient temperature stays within the 0 to 40 degrees Celsius range for optimal performance.

Maintenance & Reliability

Regularly inspect the 170MCI10001 for signs of wear, such as cuts or crushed sections. Keep the cable free from moisture and corrosive substances. Since it operates in indoor environments only, avoid exposure to outdoor conditions. Periodically check connector tightness to maintain signal integrity. Following these simple steps extends cable life and reduces unexpected downtime.

Compatibility & Integration

The 170MCI10001 is part of the Modicon Quantum series from Schneider Electric. It works with any Quantum device that supports the Interbus protocol, including processors, I/O modules, and communication adapters. This cable integrates seamlessly into existing Interbus networks without requiring additional configuration tools.

Buying Guide

Before ordering, confirm your system requires the Interbus protocol and a 1-meter cable. The 170MCI10001 is available now at BluePLC Industrial, your trusted source for automation parts. Contact our team if you need assistance with compatibility or have questions about your specific application.
