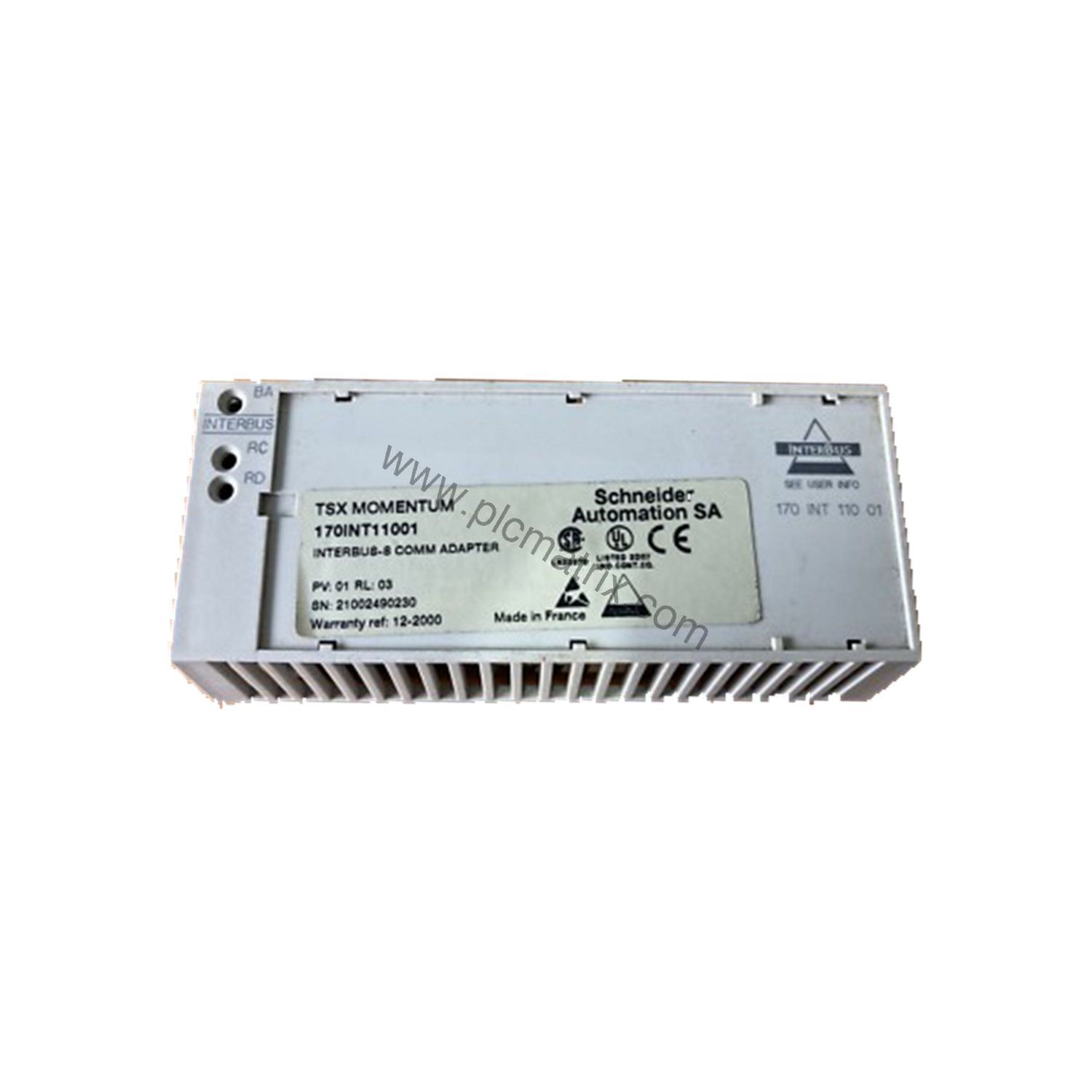

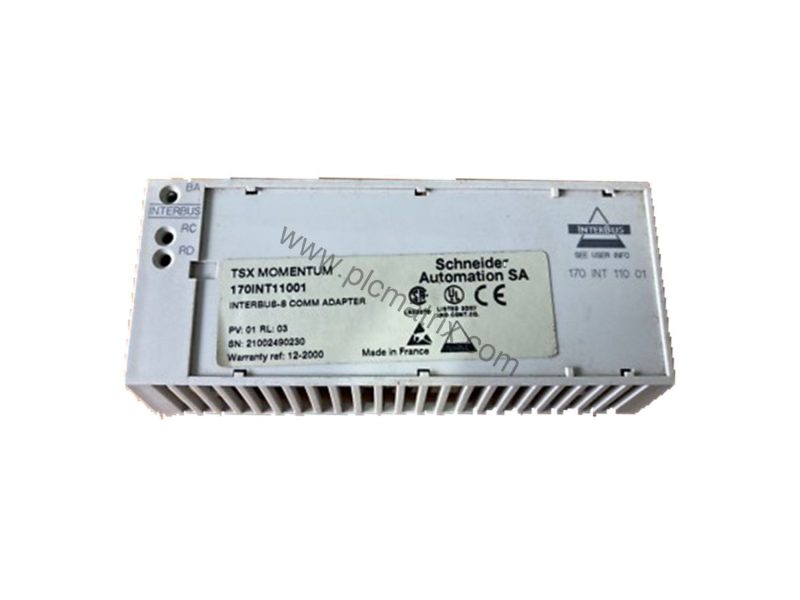

Schneider 170INT11001 Modicon Momentum INTERBUS-S Communication Adapter

Solving Ring Topology Challenges in Industrial Networks

In large-scale manufacturing plants, maintaining reliable data communication across distributed I/O points is a constant engineering challenge. The Schneider 170INT11001 communication adapter directly addresses this need by enabling robust INTERBUS-S connectivity within a ring topology. This design ensures that if a single node fails, the network can still maintain communication, minimizing costly downtime. Part of the Modicon Momentum series, the 170INT11001 is engineered to integrate seamlessly with Momentum I/O bases, providing a dependable backbone for your automation system.

Technical Specifications

The 170INT11001 operates using the INTERBUS-S communication protocol, a field-proven standard for deterministic data exchange. It supports a ring topology, which enhances network reliability by allowing data to travel in both directions. The adapter transmits data at a rate of 500 kbps over twisted pair cables, balancing speed with noise immunity for industrial environments. It is designed to function within an ambient temperature range of 0°C to 55°C, making it suitable for typical factory floor conditions. Storage temperature ranges from -20°C to 60°C, allowing for flexible warehousing. The device is rated for altitudes up to 2000 meters and is intended for environments free from corrosive gases, ensuring long-term performance in clean industrial settings.

Industry Applications

This communication adapter excels in applications requiring deterministic control over distributed I/O. For example, in a packaging line where multiple sensors and actuators must coordinate precisely, the 170INT11001 ensures that data from each Momentum I/O base arrives at the controller without delay. Its ring topology provides redundancy; if a cable breaks, the network can still function, preventing production halts. In material handling systems, the adapter's 500 kbps data rate supports real-time monitoring of conveyor status and product flow, improving overall equipment effectiveness (OEE). By choosing the 170INT11001, engineers can build scalable networks that adapt to changing production demands.

Installation & Setup Guidance

Installing the 170INT11001 is straightforward. The adapter mounts directly onto a Momentum I/O base, establishing a physical and electrical connection. Use twisted pair cables for the INTERBUS-S network, ensuring proper termination to maintain signal integrity. Configure the network in a ring topology by connecting the adapter's IN and OUT ports to adjacent devices. Verify that all connections are secure and that the network is properly grounded according to Schneider Electric's guidelines. After power-up, check the adapter's status indicators to confirm communication is established. No special tools are required beyond standard screwdrivers for terminal connections.

Maintenance & Reliability

To maximize the service life of the 170INT11001, perform periodic inspections of the network cabling and connections. Look for signs of wear, corrosion, or loose terminations that could degrade signal quality. Keep the adapter's environment free from corrosive gases and within the specified temperature range to prevent component stress. Since the adapter uses passive cooling, ensure adequate airflow around the unit. Regularly review network traffic logs to detect any intermittent errors that may indicate developing issues. Following these practices helps maintain the reliability of your INTERBUS-S network and reduces unplanned downtime.

Compatibility & Integration

The 170INT11001 is specifically designed for the Modicon Momentum platform. It is compatible with all Momentum I/O bases, allowing you to mix analog, digital, and special function modules as needed. The INTERBUS-S protocol integrates with major programmable logic controllers (PLCs) that support this fieldbus standard. For systems using Schneider Electric's Modicon controllers, the adapter provides native compatibility. When expanding an existing network, ensure that the total cable length and number of nodes do not exceed INTERBUS-S specifications. The 170INT11001 simplifies integration by handling protocol conversion and data buffering internally.

Selection Guide & Purchasing Advice

Before purchasing the 170INT11001, verify that your control system supports the INTERBUS-S protocol and that you have the necessary Momentum I/O bases for your application. Confirm that the network topology matches the ring configuration required by this adapter. If you are upgrading from an older communication module, check the revision compatibility with your existing Momentum hardware. BluePLC Industrial stocks the 170INT11001 and can provide current availability and lead times. For large projects, consider ordering a spare unit to minimize potential downtime. Our team can assist with technical questions to ensure you select the right components for your automation needs.
