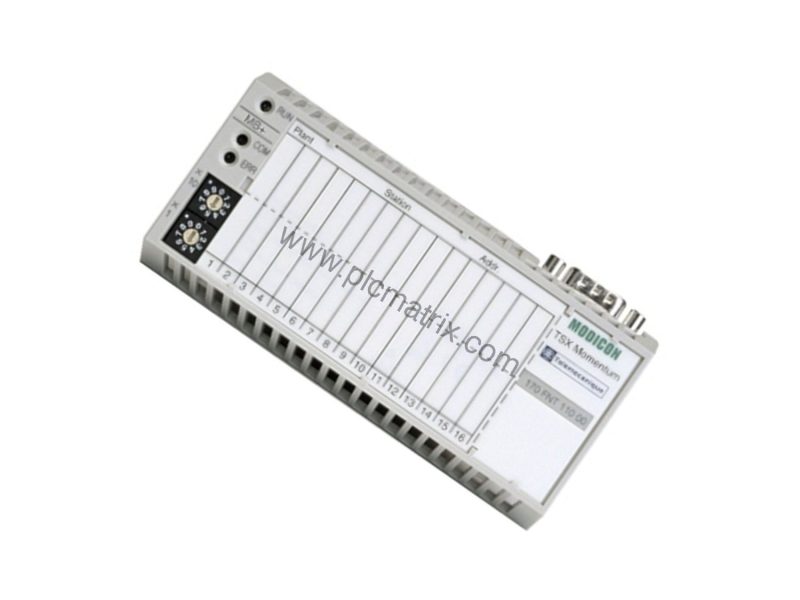

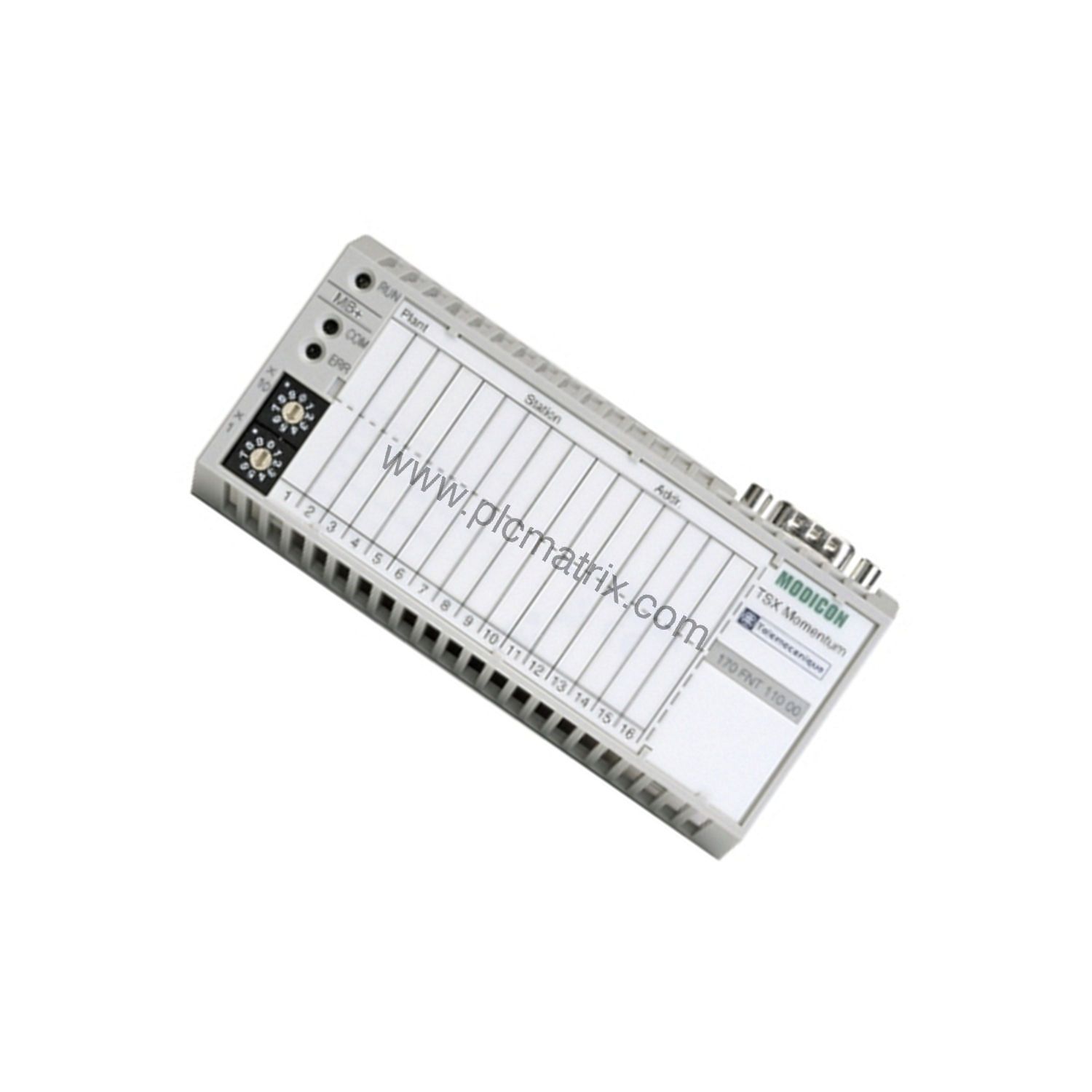

Schneider 170FNT11000 Fipio Communication Adapter for Modicon Momentum

Product Overview

When industrial networking demands reliable and efficient communication, the Schneider Electric 170FNT11000 Fipio communication adapter delivers. Part of the Modicon Momentum series, this adapter uses the Fipio protocol to connect devices in open industrial environments. With a data transmission rate of 1 Mbps, it ensures smooth data flow across your automation system.

Technical Specifications Breakdown

The 170FNT11000 supports up to 31 devices per segment without a repeater and up to 61 devices with a repeater, offering scalability for growing networks. It accommodates optical fibers of 62.5/125 and 50/125, with a maximum inter-device cable length of 5 km, providing flexibility in layout design. Power is supplied from the I/O base, and the electrical connection uses a Male Sub-D 9 connector. The adapter operates in ambient temperatures from 0 to 60 °C and weighs 0.19 lbs (0.09 kg). It holds UL, CE, and CSA approvals, meeting safety and performance standards.

Industry Applications

In manufacturing plants, the 170FNT11000 connects remote I/O modules to a central controller over long distances, reducing wiring costs. For material handling systems, its 1 Mbps data rate supports real-time control of conveyors and sorters. The adapter's open industrial structure makes it suitable for harsh environments where reliable communication is critical.

Installation & Setup Guidance

Mount the 170FNT11000 onto a compatible Modicon Momentum I/O base. Connect the Fipio network via the Male Sub-D 9 connector. Use optical fibers of 62.5/125 or 50/125 for long-distance links up to 5 km. Ensure ambient temperature stays within 0 to 60 °C for optimal performance. No special tools are required for installation.

Maintenance & Reliability

Regularly inspect the optical fiber connections for dust or damage to maintain signal integrity. Verify that the ambient temperature remains within the 0 to 60 °C range. The 170FNT11000's robust design minimizes downtime, and its approvals from UL, CE, and CSA ensure long-term reliability in industrial settings.

Compatibility & Integration

The 170FNT11000 integrates seamlessly with Modicon Momentum I/O bases and other Fipio-compatible devices. It supports up to 31 devices per segment without a repeater, expanding to 61 with a repeater. This adapter is ideal for upgrading existing Fipio networks or building new open industrial communication systems.

Selection Guide & Purchasing Advice

Before ordering, verify that your system uses Fipio protocol and that the I/O base supplies power to the adapter. Confirm the required optical fiber type (62.5/125 or 50/125) and cable length up to 5 km. For current availability and lifecycle status, contact BluePLC Industrial. We stock the 170FNT11000 and can assist with replacement options if needed.

Comparison: 170FNT11000 vs. Similar Adapters

Compared to other Fipio adapters, the 170FNT11000 offers a balanced combination of speed (1 Mbps), range (5 km), and device capacity (31 per segment, 61 with repeater). Its approvals (UL, CE, CSA) and compact weight (0.19 lbs) make it a versatile choice for open industrial environments. Unlike some adapters that require external power, the 170FNT11000 draws power from the I/O base, simplifying installation.
