Schneider 170BSM01600 Modicon Momentum Input Simulator

Product Overview

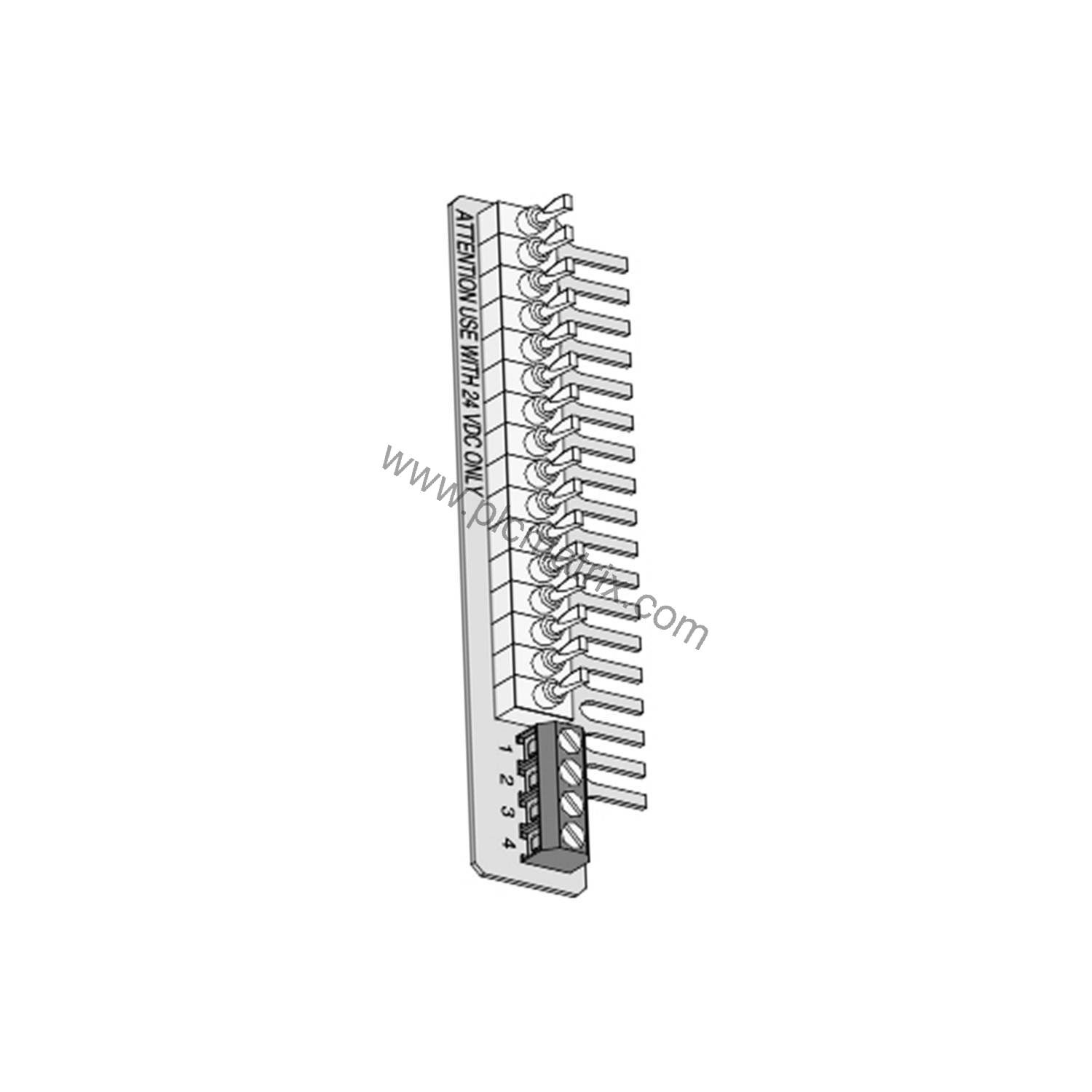

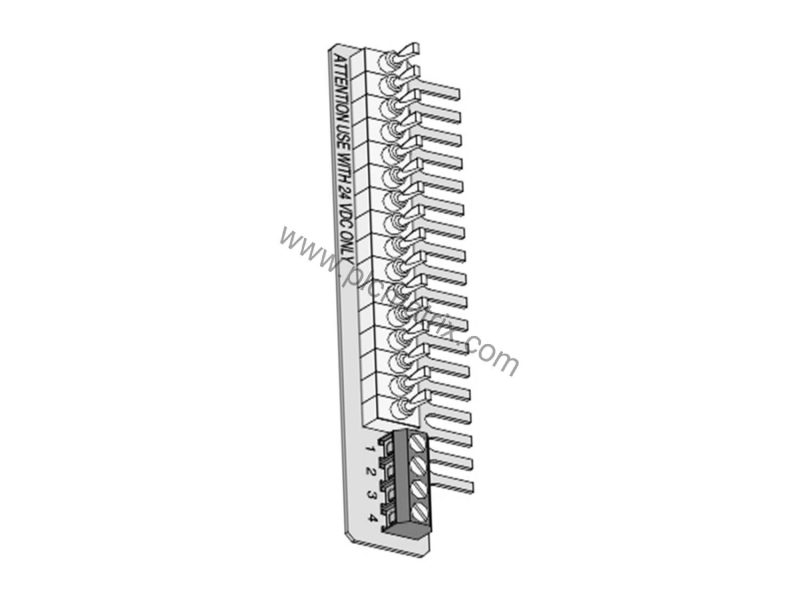

In the evolving landscape of industrial automation, the need for reliable testing and simulation tools has never been greater. The Schneider Electric 170BSM01600, part of the Modicon Momentum series, addresses this need as a dedicated discrete input simulator. Designed to streamline commissioning and troubleshooting, this device provides 16 channels of 24 VDC discrete input simulation, enabling engineers to verify control logic without live field signals. Its compact DIN rail mounting design simplifies integration into existing panels, making it a practical choice for system integrators and maintenance teams.

Technical Specifications

The 170BSM01600 offers key parameters that define its performance. It features 16 discrete input channels, each operating at 24 VDC, ensuring compatibility with standard industrial sensors and switches. Seven LED indicators provide local signaling, offering immediate visual feedback on channel status. The device supports DIN rail mounting for straightforward installation. Environmentally, it operates reliably in temperatures from -20°C to 55°C and can be stored between -40°C and 75°C. It withstands relative humidity up to 95% non-condensing and is suitable for environments free of corrosive gases.

Industry Applications

This input simulator excels in several real-world scenarios. In manufacturing plants, it allows technicians to simulate sensor inputs to test PLC logic before connecting actual field devices, reducing downtime during startups. In process control systems, the 170BSM01600 enables offline validation of safety interlocks and sequence logic, ensuring correct operation without risking equipment. Its 24 VDC discrete input voltage matches common industrial standards, simplifying integration into diverse automation architectures.

Installation & Setup Guidance

Installing the 170BSM01600 is straightforward thanks to its DIN rail mounting capability. Mount the device on a standard DIN rail in your control cabinet, ensuring adequate clearance for ventilation and LED visibility. Connect the 24 VDC power supply to the designated terminals, observing correct polarity. Wire the discrete input channels to the corresponding I/O base as per the system wiring diagram. Verify all connections before powering up, and use the LED indicators to confirm proper operation during initial testing.

Maintenance & Reliability

Routine maintenance of the 170BSM01600 is minimal but important for long-term reliability. Periodically inspect the device for dust accumulation or signs of corrosion, especially in humid environments. Verify that the DIN rail mounting remains secure and that all wiring connections are tight. The absence of moving parts reduces wear, but environmental conditions—such as exposure to corrosive gases—must be avoided as per specifications. Regular functional testing using the LED indicators helps ensure the simulator continues to perform accurately.

Selection Guide & Purchasing Advice

Before purchasing the 170BSM01600, confirm that your system uses the Modicon Momentum platform and requires a discrete input simulator. Verify that the 24 VDC input voltage matches your control logic and that your cabinet has available DIN rail space. For assistance with compatibility or to check current availability, contact BluePLC Industrial. We offer genuine Schneider Electric products and can help you select the right components for your automation needs.
