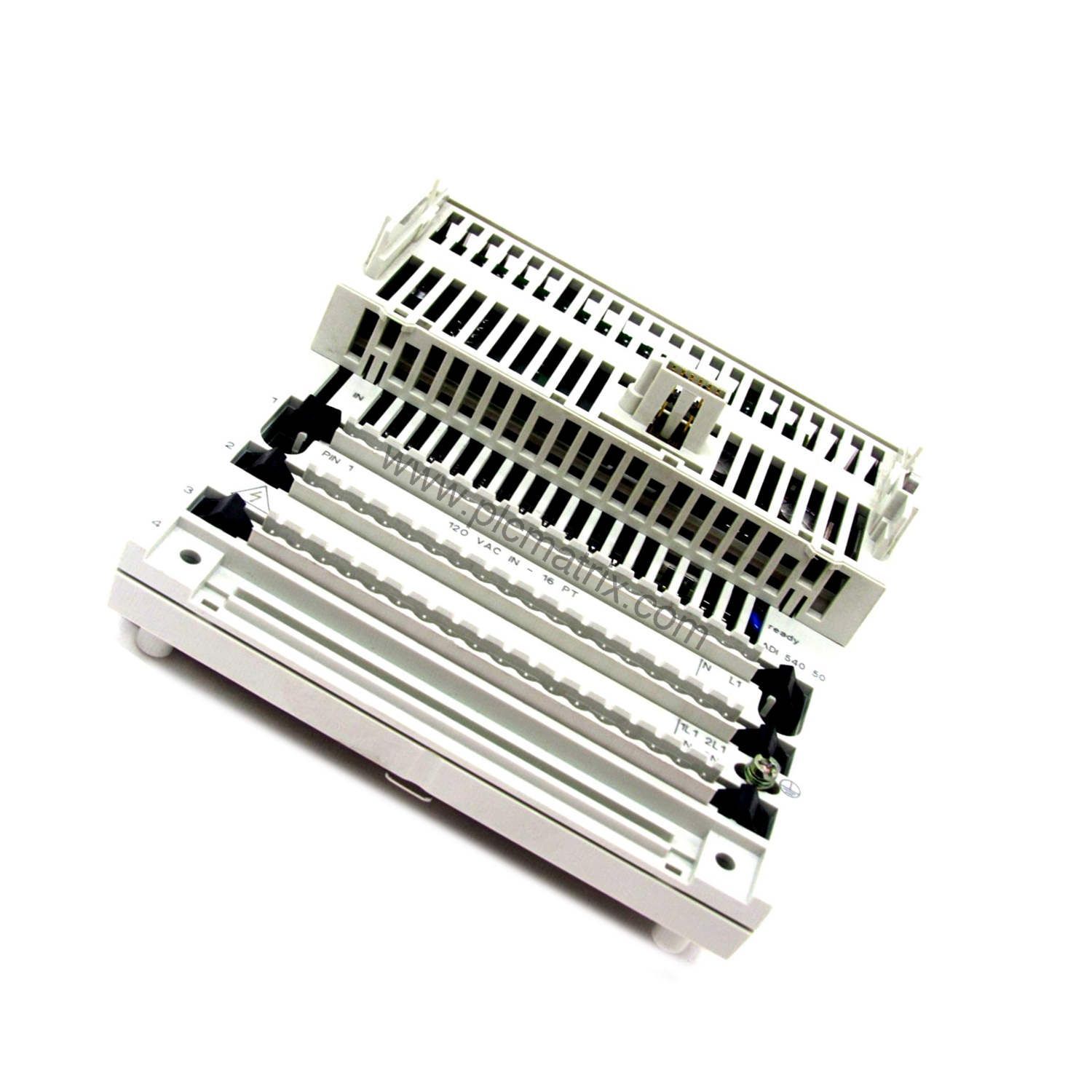

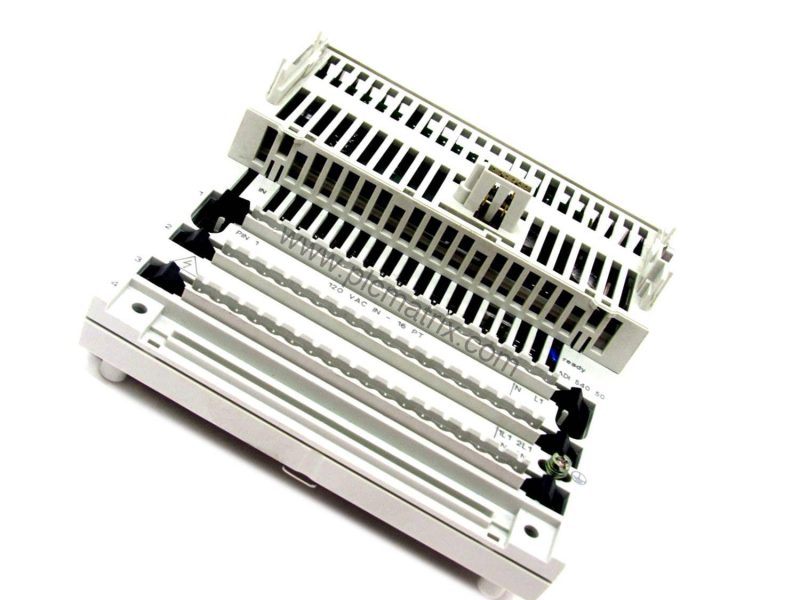

Schneider 170ADI54050 Modicon Momentum Discrete Input Base 16-Channel 120V AC

Product Overview

When a manufacturing line requires reliable detection of discrete signals from push buttons, limit switches, or proximity sensors, the Schneider 170ADI54050 discrete input base delivers consistent performance. Part of the Modicon Momentum family, this unit accepts 120V AC inputs across 16 channels organized into two groups of eight. Its positive logic design simplifies integration with standard control schemes, while the protective TC treatment ensures durability in demanding industrial environments.

Technical Specifications

The 170ADI54050 operates with a discrete input voltage of 120V AC and accepts a voltage range of 85 to 132V AC, accommodating typical line variations. It supports network frequencies from 47 to 63 Hz, making it suitable for global applications. The input logic is positive, and isolation between groups is rated at 1780V AC, as is isolation between channels and the bus. Environmental resilience includes an operating temperature range of 0°C to 60°C, storage from -40°C to 85°C, and maximum relative humidity of 95% without condensation. The unit measures 5.6 x 4.9 x 1.9 inches and weighs 0.284 kg.

Industry Applications

In automotive assembly lines, the 170ADI54050 monitors limit switches to confirm part presence before robotic welding begins. Its 16-channel capacity allows one base to handle multiple sensors, reducing wiring complexity. In packaging machinery, the module reads signals from photoelectric sensors on conveyor belts, ensuring correct product flow. The wide voltage tolerance and frequency range make it adaptable for both 50 Hz and 60 Hz power systems, as found in global manufacturing sites.

Installation & Setup Guidance

Mount the 170ADI54050 on a DIN rail within the Modicon Momentum backplane. Connect the AC power supply to terminals (N)PW and (L1)PW, observing the voltage limits of 85 to 132V AC. Wire each discrete input to the corresponding numbered terminal (1–16), ensuring the common return is properly connected. The 16 LED indicators on the front panel provide immediate visual feedback for each channel's status. Verify positive logic configuration in your controller program to match the module's input logic.

Maintenance & Reliability

Periodically inspect the 170ADI54050 for dust accumulation on the ventilation slots and LED indicators. The protective TC treatment helps resist corrosion in humid environments, but ensure the ambient humidity stays below 95% without condensation. Check all wiring connections for tightness during routine maintenance. Given the operating temperature range of 0°C to 60°C, avoid placing the module near heat sources or in direct sunlight. For extended service life, follow the manufacturer's guidelines for periodic testing of discrete input circuits.

Compatibility & Integration

The 170ADI54050 integrates seamlessly with the Modicon Momentum automation platform, including Momentum processors and I/O bases. It uses standard 120V AC discrete input signals, making it compatible with a wide range of industrial sensors and switches. The positive input logic aligns with most PLC programming conventions. For system expansion, multiple 170ADI54050 bases can be added to a single backplane, increasing input capacity as needed. No special communication modules are required for basic operation.

Buying Guide & Purchasing Advice

Before ordering, confirm that your system requires 120V AC discrete inputs with positive logic. Verify the available slots on your Modicon Momentum backplane to accommodate the 170ADI54050's 16-channel base. Check the environmental conditions of your installation site against the specified 0°C to 60°C operating range and 95% humidity limit. BluePLC Industrial stocks the 170ADI54050 and can provide current lifecycle status and availability. Contact our team for assistance with matching this module to your existing Momentum system.
