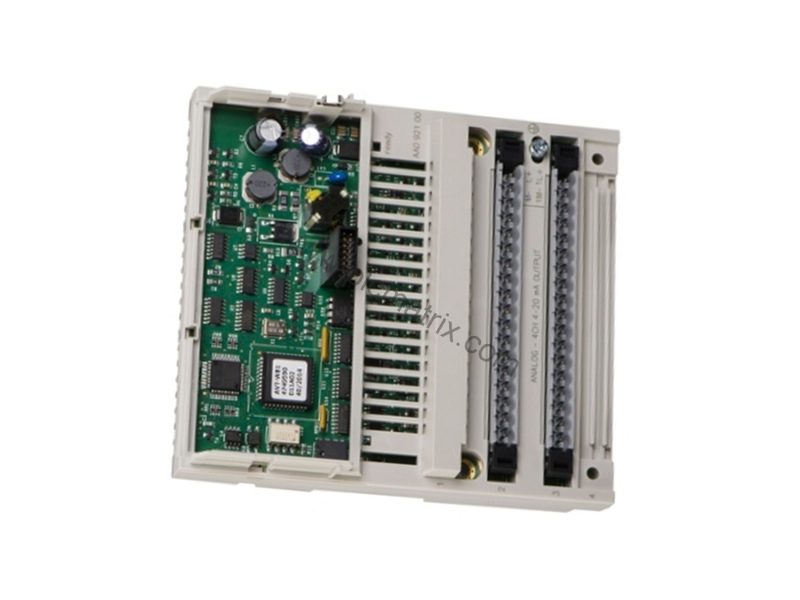

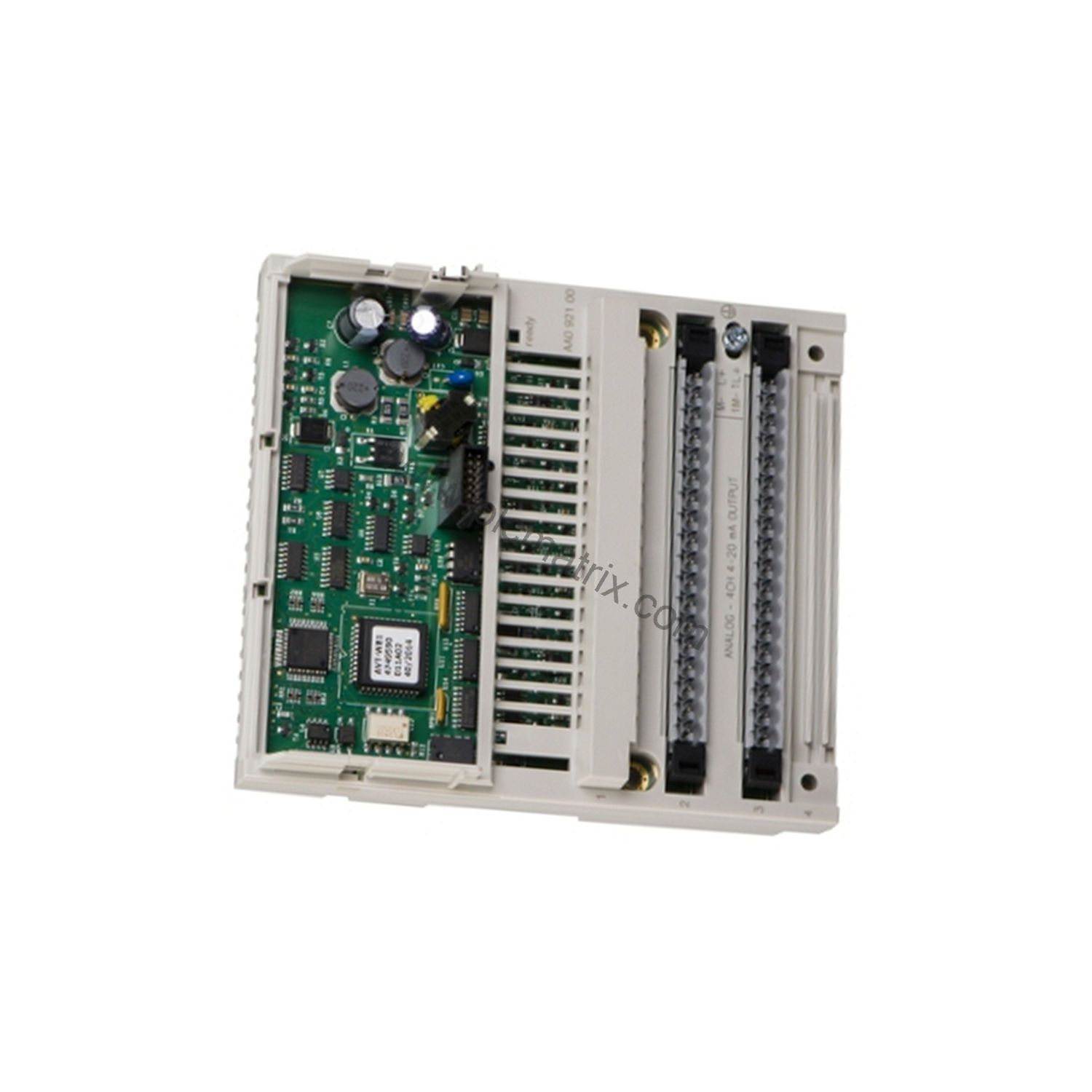

Schneider 170AAO12000 Modicon Momentum Analog Output Module

Product Overview

When your automation system requires precise analog signal output for actuators, valves, or drives, the Schneider Electric 170AAO12000 delivers reliable performance. This analog output module belongs to the Modicon Momentum series and provides four independent channels. It handles both current signals from 0 to 20 mA and voltage signals ranging from -10V to 10V, making it a versatile choice for diverse industrial applications.

Technical Specifications Breakdown

The 170AAO12000 uses a 16-bit data format to ensure accurate signal representation. Its output resolution reaches 12 bits plus sign for voltage signals when load resistance is at least 1 kOhm, and the same resolution applies to current signals when load resistance is 0.6 kOhm or less. This module updates outputs every 2 milliseconds, enabling responsive control loops. Maximum load capacitance is 1 microfarad, which helps maintain signal stability. Power dissipation stays at 8.5 W maximum, keeping thermal stress low.

Industry Applications

In process control environments, the 170AAO12000 can drive analog actuators such as proportional valves or variable frequency drives. For example, in a chemical dosing system, the module outputs a 4-20 mA signal to regulate a pump speed precisely. In motion control, the -10V to 10V voltage output can command servo drives. The 2 ms update time suits applications requiring moderate response, like packaging or material handling lines.

Installation Guide

Mount the 170AAO12000 onto a Modicon Momentum base. Connect the 24 VDC power supply to the base; the module draws 150 mA for the actuator supply and 530 mA for the base itself. Use shielded twisted-pair cables for analog outputs to minimize electrical noise. Four LEDs on the front panel indicate channel status, simplifying commissioning and troubleshooting. Ensure the load capacitance does not exceed 1 microfarad per channel to maintain signal integrity.

Maintenance & Reliability

Routine inspection of the 170AAO12000 involves checking the LED indicators for proper channel status. Verify that the 24 VDC supply remains stable within specification. Keep the module free from dust and moisture to prevent connection issues. With a maximum power dissipation of 8.5 W, adequate ventilation around the module helps maintain long-term reliability. Periodic testing of output signals against expected values ensures continued accuracy.

Selection Guide & Purchasing Advice

Before ordering the 170AAO12000, confirm that your system uses a Modicon Momentum base and requires four analog outputs. Verify the signal type needed: current (0-20 mA) or voltage (-10V to 10V). Ensure your controller supports 16-bit data format. BluePLC Industrial stocks the 170AAO12000 and can provide current lifecycle status and availability. Contact our team to confirm compatibility with your existing Momentum I/O configuration.
