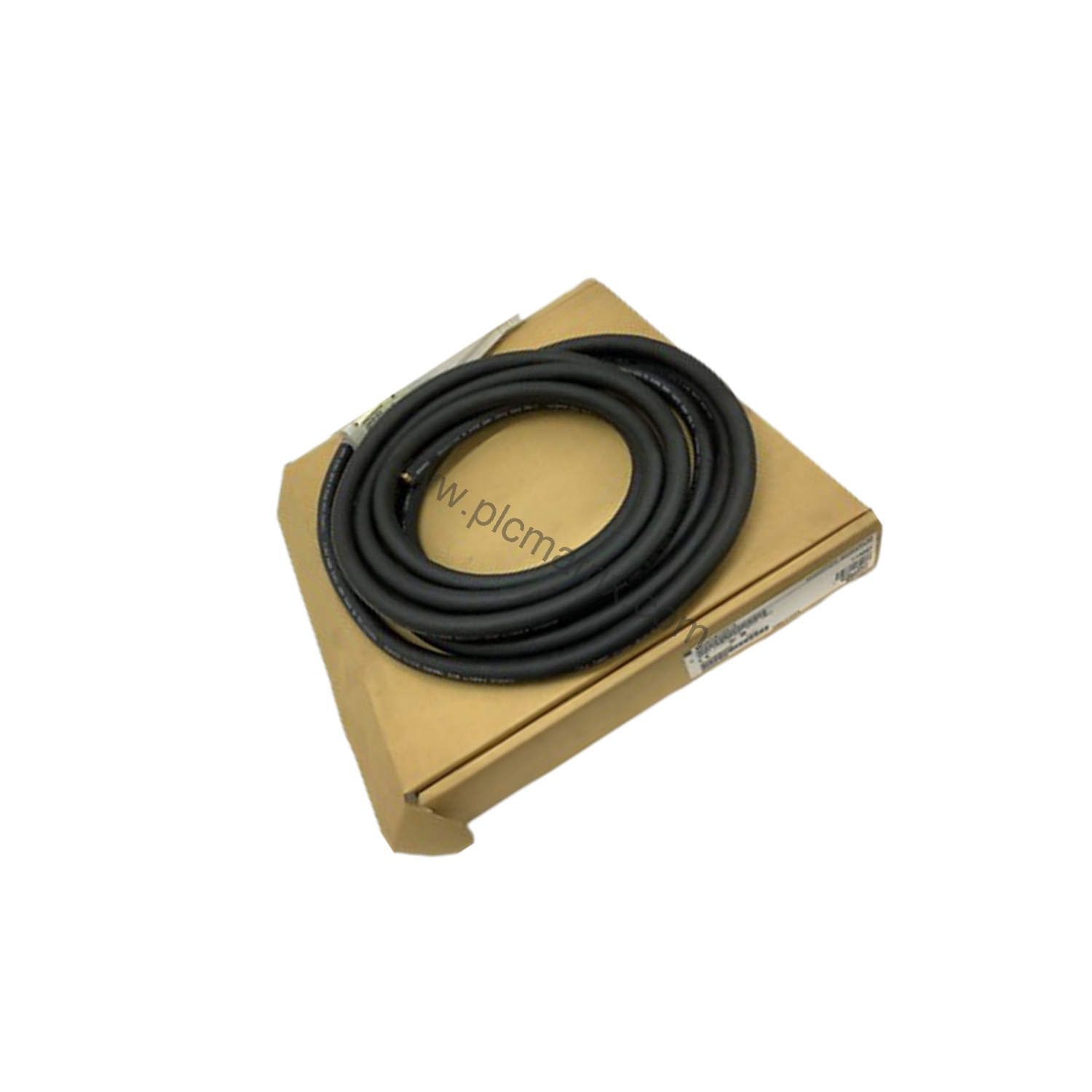

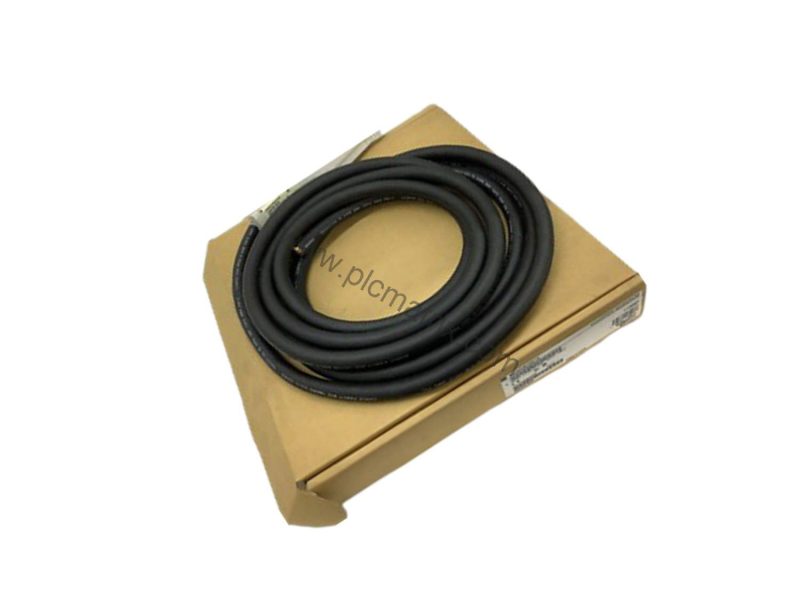

Schneider 140XTS10215 Modicon Quantum System Cable 4.6m Pigtail

Product Overview

As industrial automation evolved from hardwired relay panels to distributed control systems, the need for reliable, high-power signal transmission became paramount. The Schneider 140XTS10215 system cable from the Modicon Quantum series addresses this need directly. Designed for high-power applications, this 4.6-meter pigtail cable features 40 color-coded leads, simplifying complex wiring in modern factory environments. Whether upgrading legacy systems or building new installations, this cable ensures organized, dependable connections between Quantum I/O modules and field devices.

Technical Specifications

The 140XTS10215 is built to perform in demanding conditions. It operates within an ambient temperature range of 0 to 40 degrees Celsius, making it suitable for typical industrial enclosures. With a maximum operating humidity of 80% (non-condensing), it resists moisture-related issues in controlled environments. The cable also functions reliably at altitudes up to 1000 meters above sea level without derating, ensuring consistent performance in high-altitude facilities. Weighing 4.50 lbs (2.04 kg), it balances durability with manageable weight for installation.

Industry Applications

This cable excels in high-power I/O applications within manufacturing, process control, and material handling systems. For example, in a automotive assembly line, the 140XTS10215 connects Quantum discrete output modules to motor starters and solenoid valves, handling the current demands of heavy machinery. Its 40 color-coded pigtail leads reduce wiring errors and speed up commissioning. In a water treatment plant, the same cable links analog input modules to flow transmitters, maintaining signal integrity over the 4.6-meter length. The robust construction minimizes downtime in continuous-process environments.

Installation & Setup Guidance

When installing the 140XTS10215, ensure the Quantum I/O connector is securely seated and latched. Route the 40 pigtail leads to their respective terminal blocks, using the color coding to match each lead to its designated signal. Avoid sharp bends or kinks that could stress the cable jacket. For high-power circuits, verify that the connected load does not exceed the module's rated current. Keep the cable away from high-voltage power lines to prevent electromagnetic interference. Always follow Schneider's installation manual for torque specifications on terminal screws.

Maintenance & Reliability

Regular inspection of the 140XTS10215 cable and its connections is recommended. Check for signs of wear, such as cracked insulation or loose pigtail terminations, especially in high-vibration environments. The 80% non-condensing humidity limit means the cable should not be exposed to dripping water or steam. Cleaning should be limited to dry dusting; avoid solvents that could degrade the cable jacket. By following these simple practices, users can extend the service life of this cable and maintain system reliability, reducing total cost of ownership.

Compatible Systems & Integration

The 140XTS10215 is specifically designed for the Modicon Quantum series from Schneider Electric. It connects directly to Quantum I/O modules via the dedicated 1-connector interface. The 40 color-coded pigtail leads terminate to field devices such as sensors, actuators, and transmitters. This cable is ideal for new Quantum installations or as a replacement in existing high-power I/O racks. Before ordering, verify that your Quantum module and backplane support the cable's connector type and power rating.

Selection Guide & Purchasing Advice

Before purchasing the 140XTS10215, confirm your system's cable length requirements and connector compatibility. This 4.6-meter cable suits most cabinet-to-field wiring distances. BluePLC Industrial stocks this genuine Schneider cable, ensuring fast delivery and factory warranty. For large projects, consider ordering multiple units to maintain consistency across I/O racks. Contact BluePLC Industrial for current availability and lifecycle status, as some Modicon Quantum components may be transitioning to newer platforms.
