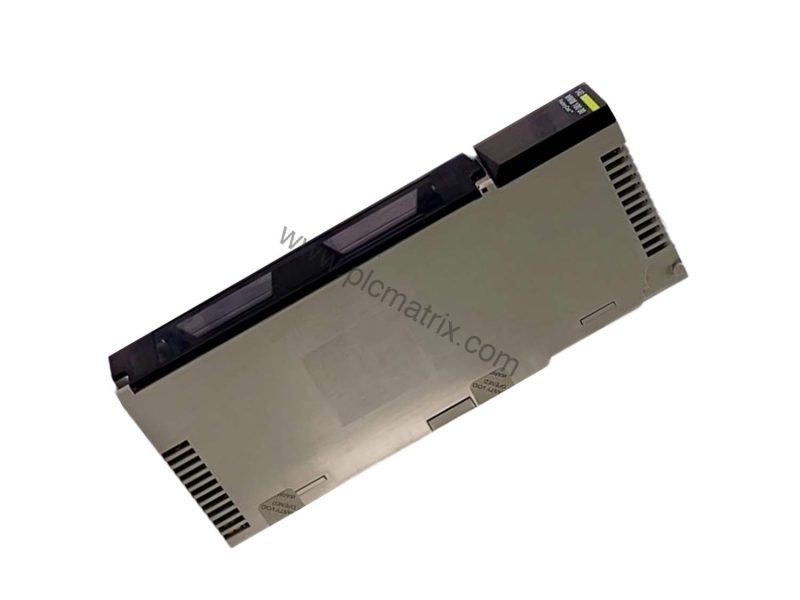

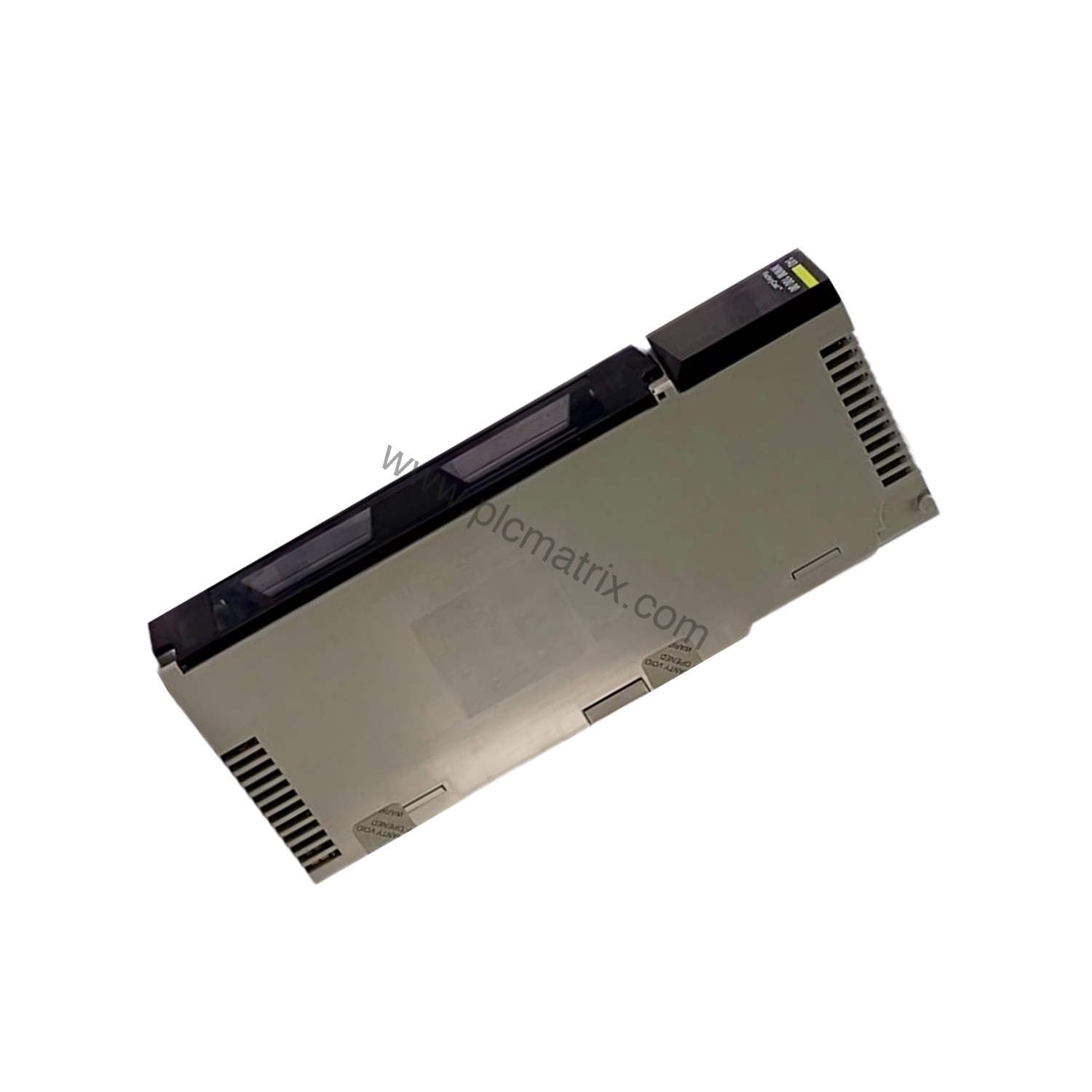

Schneider 140NWM05000 Modicon Quantum DIO Head-End Adaptor Overview

Product Introduction

When network integration demands reliable distributed I/O, the 140NWM05000 from Schneider Electric serves as a DIO head-end adaptor within the Modicon Quantum series. This module requires an assigned IP address for proper network communication and includes a removable door that simplifies installation and maintenance access. Designed for industrial environments, it provides essential connectivity for automation systems.

Technical Specifications Breakdown

The 140NWM05000 offers multiple communication interfaces: RS-232, 100 Base-Fx, and 10/100 Base-T, enabling flexible networking options. It delivers a bus current of 900 mA and a serial port bus current of 750 mA, supporting efficient power distribution to connected devices. Total power dissipation is 4.5 W, with 3.8 W specifically for the serial port. Diagnostic LEDs assist in troubleshooting and monitoring system status. Firmware is upgradable, extending the module's adaptability over time.

Industry Applications

In manufacturing plants, the 140NWM05000 acts as a head-end adaptor for remote I/O racks, reducing wiring complexity and improving system modularity. For process control systems, its 100 Base-Fx interface supports long-distance fiber optic connections, ensuring reliable data transmission in electrically noisy environments. The removable door feature allows maintenance engineers to quickly access configuration ports without removing the module, minimizing downtime during troubleshooting.

Installation & Setup Guidance

Mount the 140NWM05000 securely in a Quantum backplane. Assign a unique IP address via the configuration software before connecting to the network. Use the RS-232 port for initial setup or diagnostics. The removable door provides easy access to the IP address label and serial port. Ensure the operating temperature stays between 0 and 40 degrees Celsius and relative humidity below 80% RH non-condensing for reliable performance.

Maintenance & Reliability

From a maintenance engineer's perspective, the 140NWM05000 offers straightforward serviceability. The diagnostic LEDs immediately indicate communication status, reducing guesswork. Firmware upgradability allows updates without hardware replacement, extending service life. Regular inspection of the fiber and copper connections helps maintain signal integrity. The module's 4.5 W power dissipation minimizes heat buildup, contributing to long-term reliability in control cabinets.

Compatibility & Integration

The 140NWM05000 integrates seamlessly with Modicon Quantum controllers and I/O modules. It supports 10/100 Base-T Ethernet networks and 100 Base-Fx fiber optic links, making it suitable for both local and remote installations. The RS-232 interface enables connection to legacy devices or configuration tools. Ensure the bus current draw does not exceed 900 mA and serial port current stays within 750 mA to maintain stable operation.

Selection Guide & Purchasing Advice

Before purchasing the 140NWM05000, verify your system's IP addressing requirements and available backplane slots. Confirm that your network infrastructure supports the chosen interface (copper or fiber). BluePLC Industrial offers this module with detailed support to ensure correct integration. Please verify current lifecycle status and availability with BluePLC Industrial before ordering.
