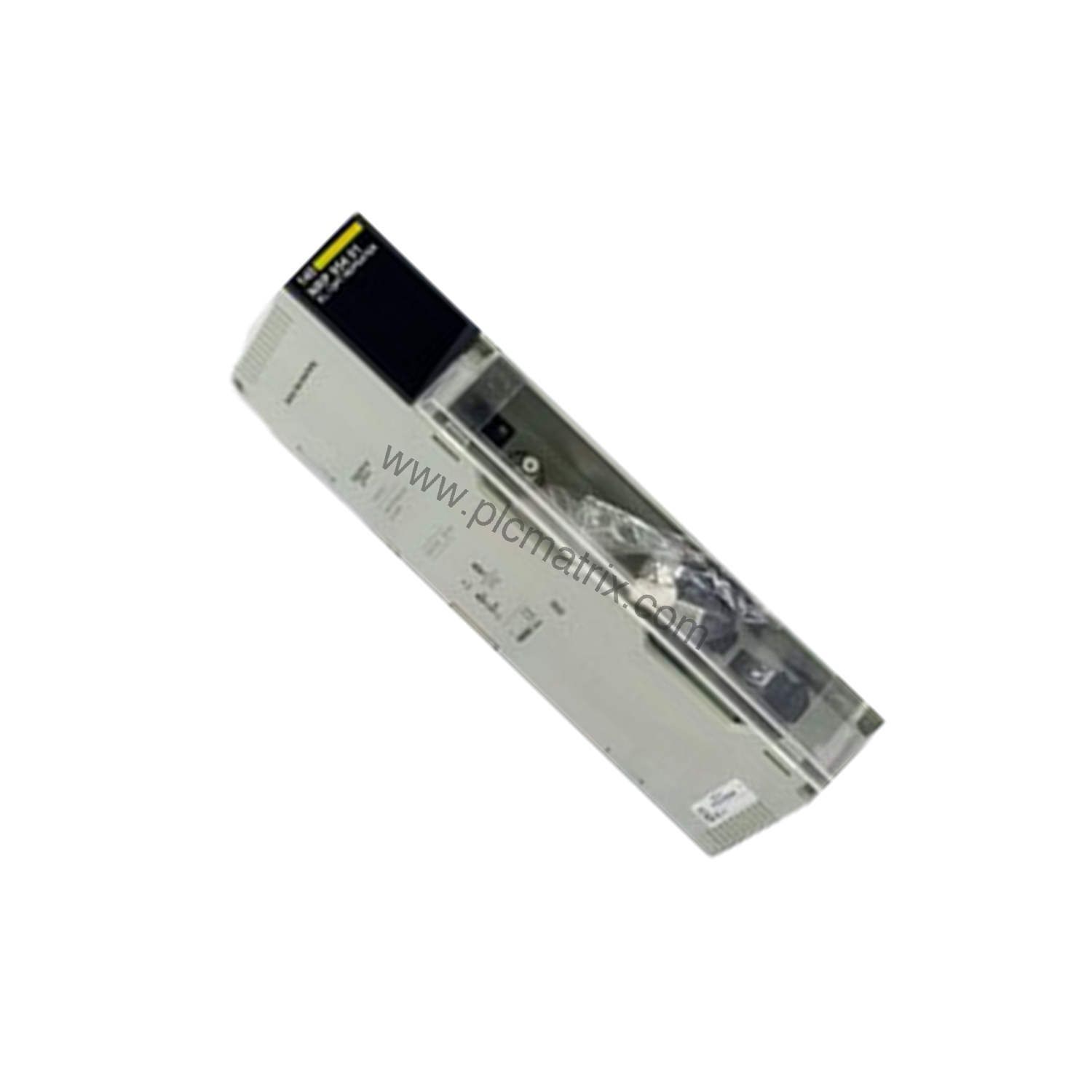

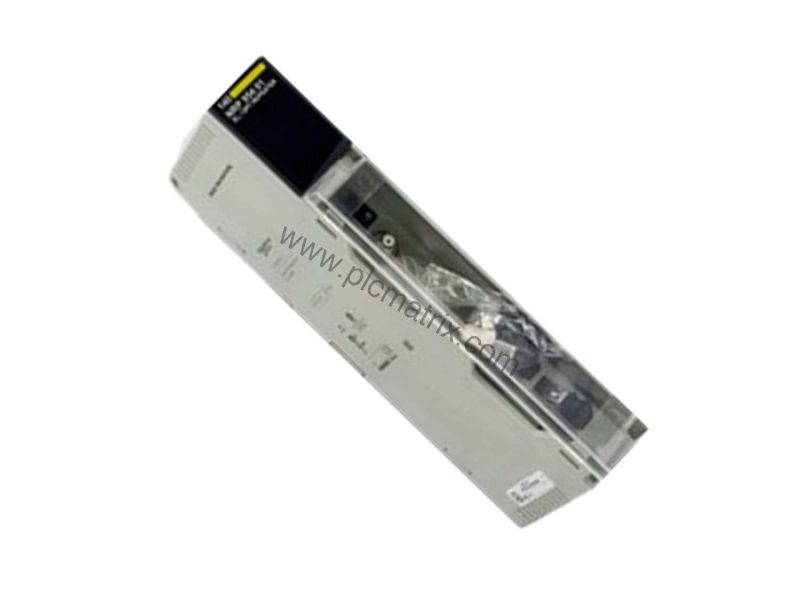

Schneider 140NRP95401 Modicon Quantum Fiber-Optic Repeater Module

Product Introduction

When signal integrity degrades over long distances in industrial communication networks, the Schneider 140NRP95401 provides a robust solution. As a repeater module from the Modicon Quantum series, it enhances data transmission reliability. This module supports both fiber-optic and coaxial connections, optimized for single-mode operations. The CE mark confirms compliance with essential regulatory standards, making it suitable for controlled industrial environments.

Technical Specifications Breakdown

The 140NRP95401 operates within a temperature range of 0 to 40 degrees Celsius, ensuring stable performance in typical industrial settings. Humidity tolerance reaches up to 80% without condensation, critical for maintaining signal quality in varying conditions. The module functions at altitudes up to 1000 meters above sea level, allowing deployment in elevated locations. Storage conditions extend from 0 to 50 degrees Celsius with similar humidity limits, preserving the unit during downtime. These parameters define a device engineered for clean indoor environments free from corrosive chemicals.

Industry Applications

In manufacturing plants, the 140NRP95401 extends communication networks between control rooms and remote field devices. Its fiber-optic repeater capability supports single-mode links, ideal for long-distance data transfer without electromagnetic interference. For process automation in chemical-free indoor settings, the coaxial connector option provides flexible integration with existing infrastructure. This module ensures reliable signal regeneration, reducing data loss and improving overall network uptime.

Installation & Setup Guidance

Install the 140NRP95401 in a clean indoor location within the specified temperature and humidity ranges. Ensure the mounting area is free from corrosive chemicals and provides adequate ventilation. Connect the fiber-optic cable for single-mode operations or use the coaxial connector as needed. Verify all connections are secure before powering the module. Follow Schneider Electric's guidelines for proper integration into your Modicon Quantum network.

Maintenance & Reliability

Regularly inspect the 140NRP95401 for dust accumulation on connectors and ensure the operating environment stays within 0 to 40 degrees Celsius and below 80% humidity. Avoid exposure to condensation or corrosive substances. Periodic checks of cable connections help maintain signal integrity. By adhering to these simple practices, you extend the module's service life and reduce unexpected downtime, maximizing your investment.

Selection Guide & Purchasing Advice

Before ordering, verify that your network requires a single-mode fiber-optic repeater with coaxial compatibility. The 140NRP95401 is designed for clean indoor environments only. For current availability and lifecycle status, contact BluePLC Industrial. Our team can confirm stock levels and help you select the right Modicon Quantum components for your automation system.
