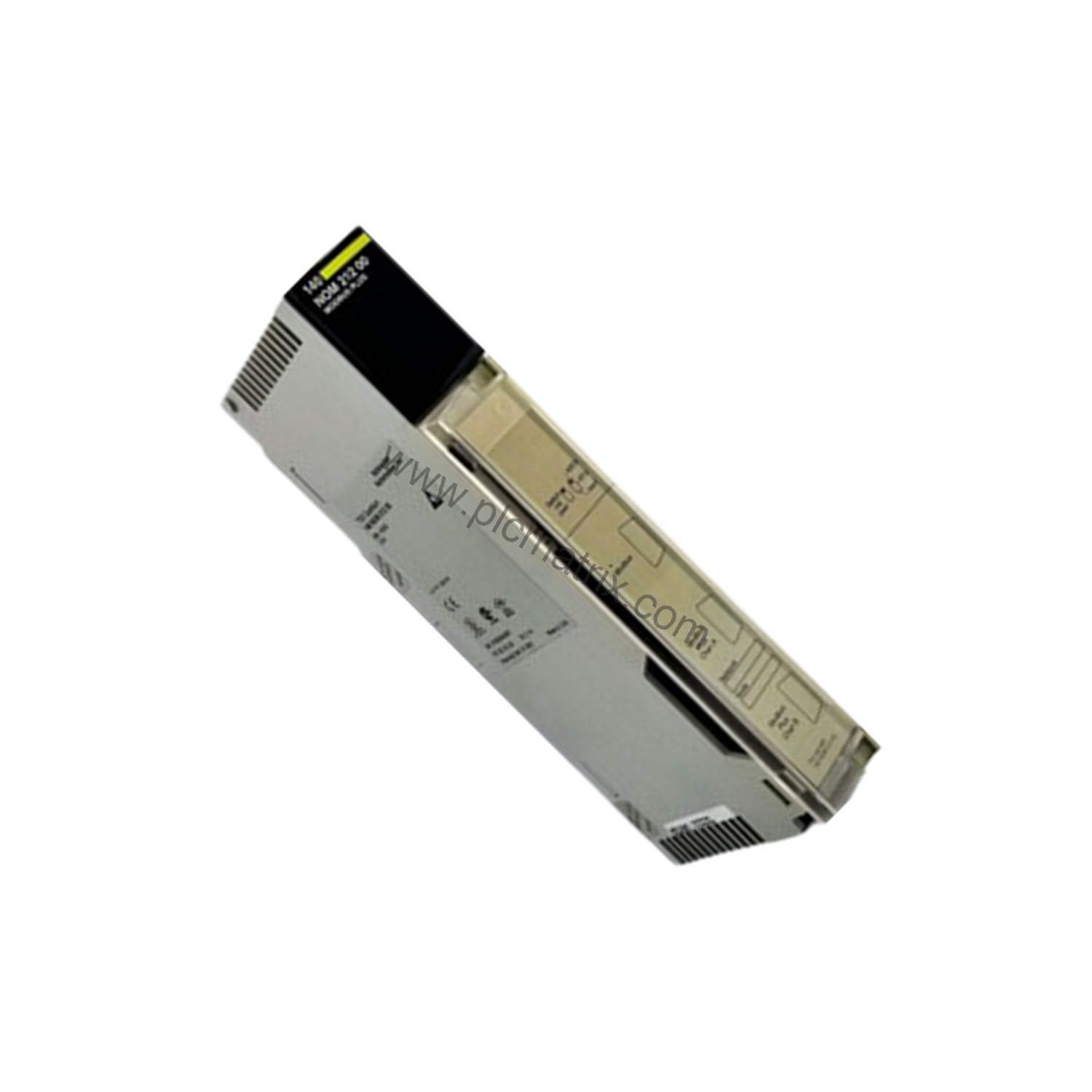

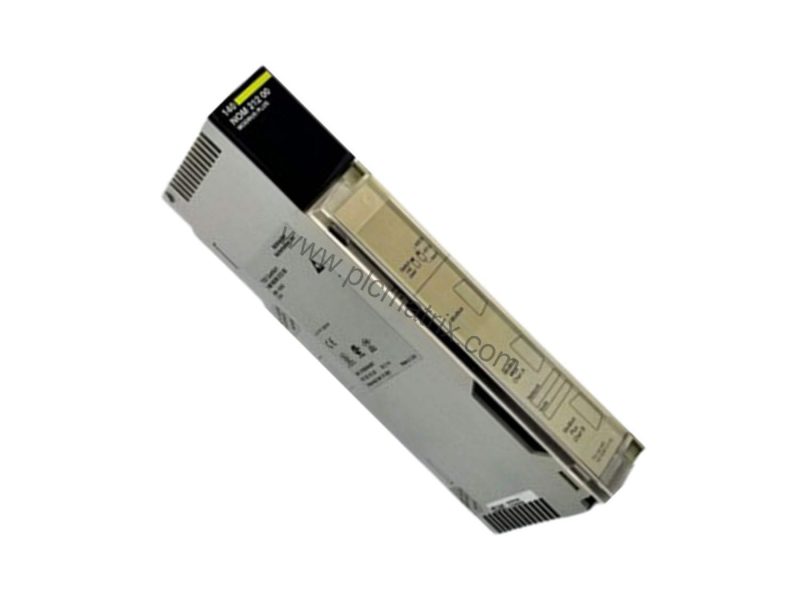

Schneider 140NOM21200C Modicon Quantum DIO Head-End Adapter

Product Introduction

When industrial automation systems require reliable remote I/O communication, the Schneider Electric 140NOM21200C from the Modicon Quantum series delivers a robust solution. This DIO head-end adapter acts as a central interface between controllers and distributed I/O modules, supporting two Modbus RS-485 interfaces and one Modbus RS-232 interface with a maximum transmission rate of 1 Mbps. Designed for demanding environments, it ensures stable data exchange for critical processes.

Technical Specifications Breakdown

The 140NOM21200C offers key specifications that define its performance. It handles 30 input and 32 output words, enabling substantial data management. Power dissipation is only 4 W, contributing to energy efficiency. The module requires a bus current of 780 mA and operates within an ambient temperature range of 0 to 60 °C. It withstands humidity up to 95% without condensation and operates at altitudes up to 5000 m. For electrical robustness, it resists electrostatic discharge at 4 kV contact and 8 kV on air, conforming to IEC 801-2. Protective conformal coating (Humiseal 1A33) guards against moisture and contaminants.

Industry Applications

This adapter excels in manufacturing plants, water treatment facilities, and energy management systems where Modbus communication is standard. For example, in a distributed control system for a chemical processing plant, the 140NOM21200C connects remote I/O racks to a central PLC, ensuring real-time monitoring and control. Its high immunity to electromagnetic fields (10 V/m, 80-2000 MHz) makes it suitable for electrically noisy environments.

Installation & Setup Guidance

Mount the 140NOM21200C in a Modicon Quantum backplane. Connect the Modbus RS-485 ports using twisted-pair copper cables with proper termination resistors. For the RS-232 port, use a standard serial cable. Ensure the bus current requirement of 780 mA is met by the power supply. Verify ambient temperature stays within 0-60 °C and humidity below 95% without condensation. No special tools are needed beyond standard industrial wiring practices.

Maintenance & Reliability

Routine inspection of the 140NOM21200C should focus on verifying LED status indicators, checking cable connections for wear, and ensuring the conformal coating remains intact. The module's robust design, including resistance to electrostatic discharge and conformal coating, minimizes downtime. For long-term reliability, keep the operating environment within specified limits and avoid exposure to condensation.

Compatibility & Integration

The 140NOM21200C integrates seamlessly with Modicon Quantum automation platform. It is compatible with remote I/O adapters 140CRA21210 and 140CRA21220. The two Modbus RS-485 ports support daisy-chain or redundant topologies, while the RS-232 port enables direct connection to programming tools or HMIs. This flexibility simplifies system expansion and upgrades.

Selection Guide & Purchasing Advice

Before purchasing, verify that your system requires a DIO head-end adapter with Modbus RS-485/232 interfaces. Confirm that the bus current requirement of 780 mA and power dissipation of 4 W align with your power supply capacity. The 140NOM21200C is available at BluePLC Industrial, a trusted supplier of industrial automation parts. Contact our team for current stock and lifecycle status.

Troubleshooting & Common Issues

If communication fails, check that the transmission rate is set to 1 Mbps on all devices. Verify that the RS-485 network has proper termination and biasing. For RS-232 connections, ensure cable length does not exceed 15 meters. If the module does not power on, confirm the bus current supply meets 780 mA. For persistent issues, inspect the conformal coating for damage and test electrostatic discharge resistance.
