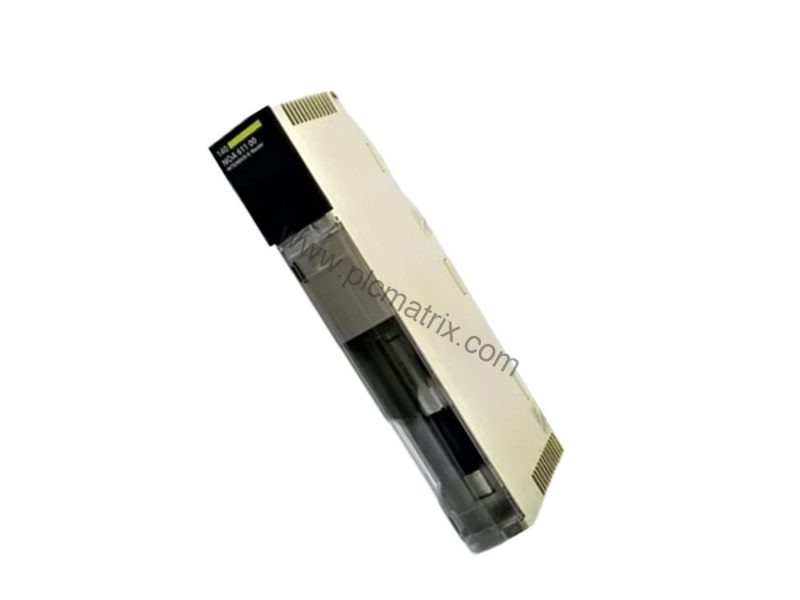

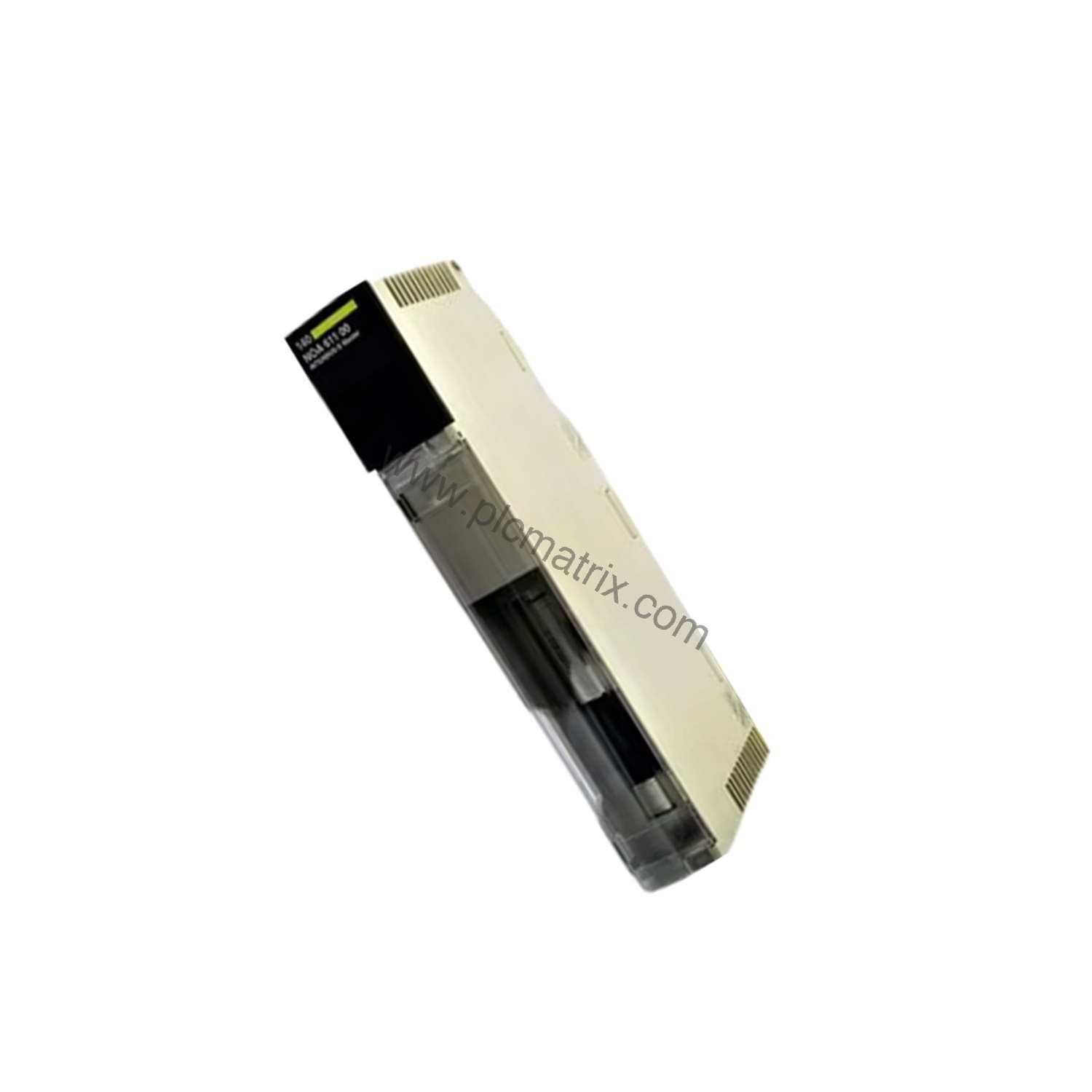

Schneider 140NOA61110C Modicon Quantum Interbus Communications Module

Solving Communication Gaps in Industrial Networks

When production lines face communication bottlenecks, the Schneider 140NOA61110C provides a reliable Interbus link for Modicon Quantum systems. This communications module ensures seamless data exchange in demanding environments like material handling, packaging, and textile machinery. By integrating directly into your existing Quantum rack, it eliminates protocol mismatches and reduces downtime.

Technical Specifications Breakdown

The 140NOA61110C operates within a temperature range of 0 to 40 degrees Celsius, making it suitable for typical indoor industrial settings. It can be stored safely between 0 and 50 degrees Celsius. The module handles a maximum operating humidity of 80% RH (non-condensing) and a maximum storage humidity of 80% RH (non-condensing). It is designed for altitudes up to 1000 meters above sea level for both operation and storage. These parameters ensure stable performance in clean indoor environments free from corrosive chemicals.

Industry Applications

In material handling systems, the 140NOA61110C coordinates conveyor controls and sorting equipment through Interbus, reducing wiring complexity. For packaging lines, it synchronizes multiple machines, improving throughput. Textile machinery benefits from its reliable communication, minimizing thread breaks and production stops. Each application leverages the module's robust environmental ratings to maintain uptime.

Installation & Setup Guidance

Mount the 140NOA61110C into any standard Modicon Quantum rack slot. Ensure the backplane connector aligns properly before securing. Connect the Interbus cable to the designated port, following the pinout in your system manual. Verify that the operating environment stays within 0 to 40 degrees Celsius and below 80% RH non-condensing. Avoid exposure to corrosive chemicals or altitudes above 1000 meters. After installation, power up the rack and check the module's status LEDs for normal operation.

Maintenance & Reliability

Regularly inspect the 140NOA61110C for dust accumulation on its ventilation slots. Clean the surrounding area to maintain airflow and prevent overheating. Verify that humidity levels remain below 80% RH non-condensing. Periodically check cable connections for tightness and signs of wear. Following these steps extends the module's service life and reduces unexpected failures, directly lowering total cost of ownership.

Compatibility & Integration

The 140NOA61110C integrates with Modicon Quantum automation platforms via the backplane. It communicates using the Interbus protocol, connecting to remote I/O devices, drives, and sensors. No additional protocol converters are needed for Interbus networks. For systems using other fieldbuses, verify compatibility with your existing network architecture before purchase.

Selection Guide & Purchasing Advice

Before ordering, confirm that your system requires an Interbus communications module and that the 140NOA61110C matches your rack configuration. Check that your operating environment meets the specified temperature, humidity, and altitude limits. For current availability and lifecycle status, contact BluePLC Industrial. Our team can help verify compatibility and provide replacement options if needed.
