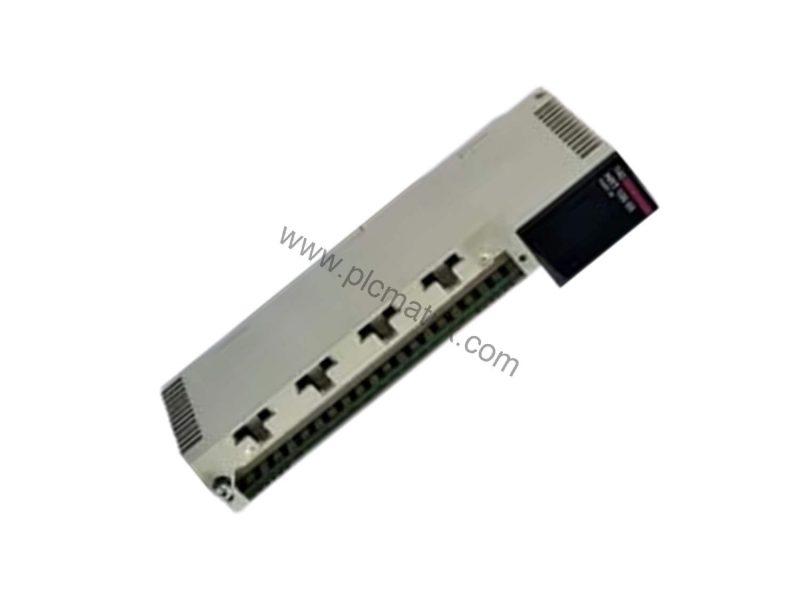

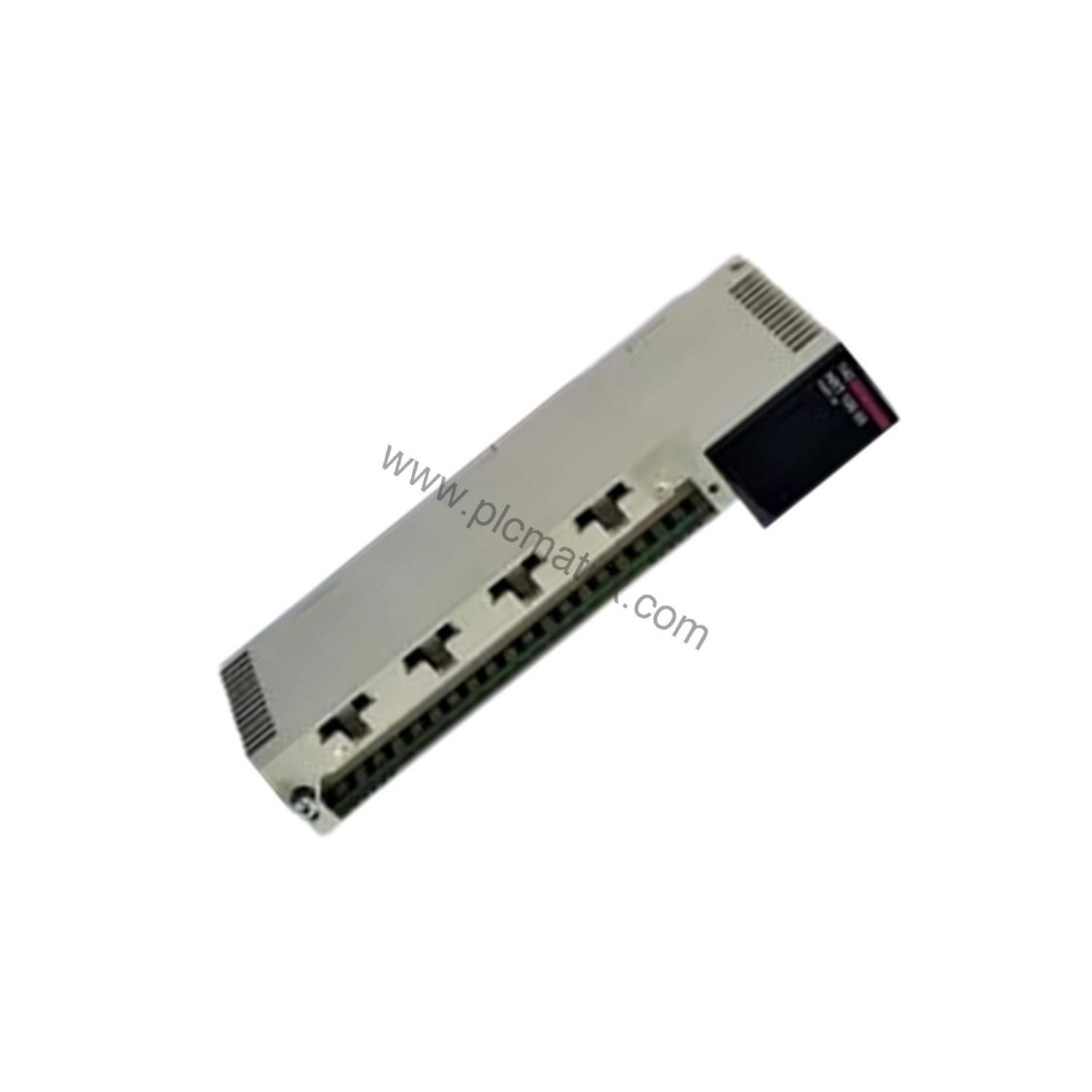

Schneider 140HRT10000 Modicon Quantum Interface Module for Communication

Product Introduction

When communication bottlenecks disrupt industrial data flow, the Schneider 140HRT10000 interface module provides a robust solution. Part of the Modicon Quantum series, this module is designed specifically for communication and data integration tasks. Its metal housing and natural cooling ensure durability and reliable performance in demanding environments.

Technical Specifications Breakdown

The 140HRT10000 operates within an ambient temperature range of 0 to 60 degrees Celsius, making it suitable for typical industrial settings. It handles humidity up to 80% non-condensing during both operation and storage. The module functions at altitudes up to 1000 meters without derating, ensuring consistent performance. Compliance with CE standards and an IP20 protection class confirm its suitability for dry indoor areas with minimal dust exposure. The metal construction and through-screw mounting provide secure installation.

Industry Applications

This interface module excels in manufacturing environments where reliable data exchange between controllers and field devices is critical. For example, in a packaging line, the 140HRT10000 integrates seamlessly with Modicon Quantum PLCs to transmit sensor data and control signals. Its natural cooling eliminates the need for additional fans, reducing maintenance in dusty settings. The IP20 rating protects against accidental tool contact, making it ideal for enclosed control cabinets.

Installation & Setup Guidance

Mount the 140HRT10000 using the provided through screw and holes onto a flat panel inside an enclosure. Ensure the ambient temperature stays between 0 and 60 degrees Celsius and humidity remains below 80% non-condensing. Avoid locations near heat sources or in direct airflow from cooling fans to maintain natural cooling efficiency. Verify that the mounting surface is grounded properly for optimal performance.

Maintenance & Reliability

Regularly inspect the module for dust accumulation on the metal housing, which can impede natural cooling. Check that all mounting screws remain tight to prevent vibration-induced loosening. The natural cooling design reduces moving parts, enhancing long-term reliability. Periodic verification of the operating environment's temperature and humidity ensures the module stays within its 0 to 60 degrees Celsius and 80% humidity limits.

Compatibility & Integration

The 140HRT10000 integrates directly with Schneider Electric Modicon Quantum automation platforms. It supports communication and data integration tasks without requiring additional interface cards. For systems using other Modicon Quantum modules, this interface module provides a straightforward connection point for data exchange. Always verify compatibility with your specific Quantum backplane and power supply before installation.

Selection Guide & Purchasing Advice

Before purchasing the 140HRT10000, confirm that your application requires an interface module for communication and data integration. Check that your enclosure offers adequate space for through-screw mounting and maintains the required temperature and humidity ranges. BluePLC Industrial stocks this module and can provide current lifecycle status and availability. Contact their team to ensure the 140HRT10000 meets your system requirements.
