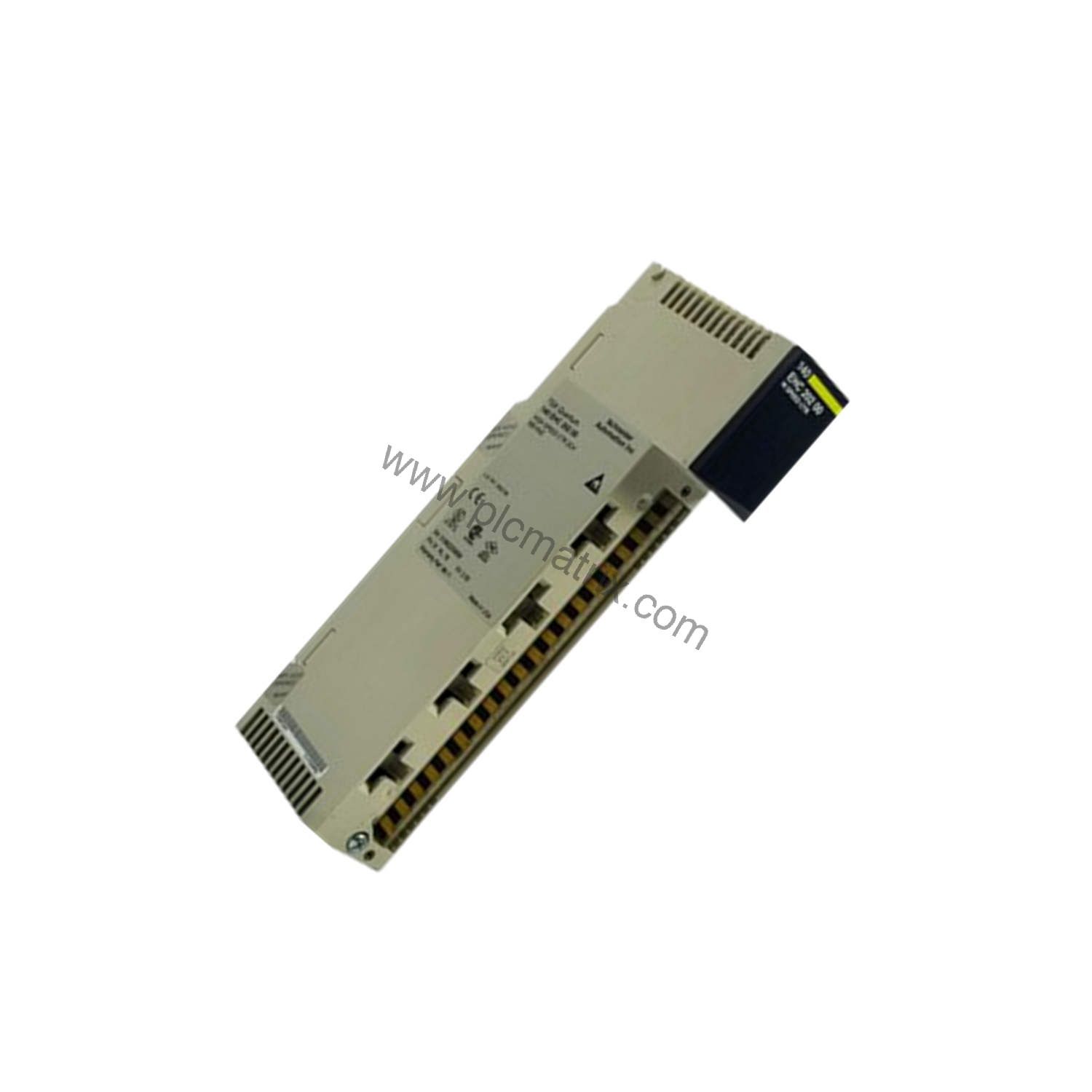

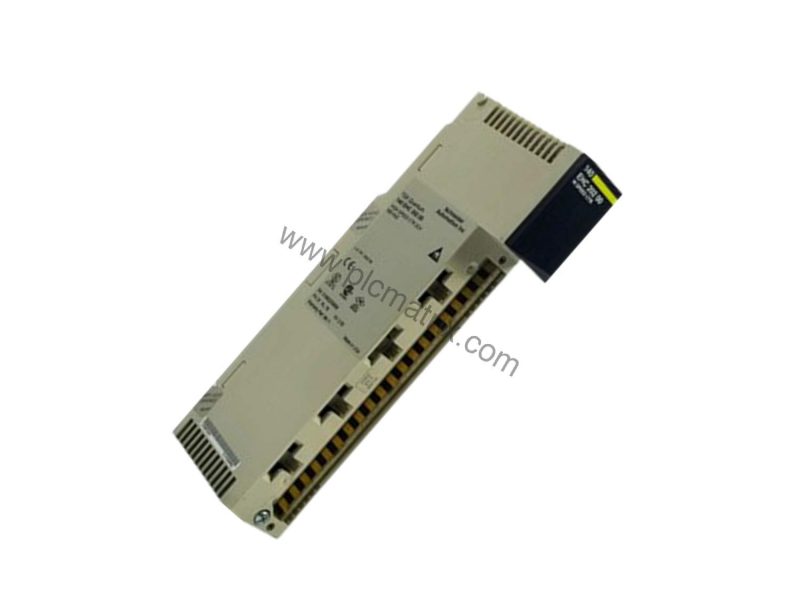

Schneider 140EHC20800SC High Speed Counter Module for Modicon Quantum

Product Overview

When precision counting tasks demand reliability and speed, the Schneider Electric 140EHC20800SC high-speed counter module delivers. Part of the Modicon Quantum family, this module handles incremental or quadrature input types at a counting frequency of up to 500,000 Hz. Maintenance engineers appreciate its straightforward design and robust protection features, which minimize downtime in production environments.

Technical Specifications

The 140EHC20800SC offers four discrete outputs using Field Effect Transistor (FET) technology, each rated for a load current of 0.5 A. Off-state leakage current is limited to a maximum of 0.4 mA, ensuring clean signal transitions. Input resistance for discrete inputs is 10 kOhm, making integration with various sensors simple. For output protection, the module includes a 36 V transorb and a blown fuse rated at 2.5 A for short-circuit protection. External power requirement ranges from 19.2 to 30 V, and the module withstands electromagnetic fields up to 9.1 V/m. It operates reliably at altitudes up to 5000 m.

Industry Applications

This counter module excels in high-speed packaging lines, where counting products at rates exceeding 500,000 events per hour is common. It also suits material handling systems that use quadrature encoders for precise position feedback. In both cases, the 140EHC20800SC reduces the risk of miscounts and equipment jams, directly improving overall equipment effectiveness (OEE).

Installation & Setup Guidance

Mount the module securely in a Modicon Quantum backplane. Connect the external power supply within 19.2 to 30 V DC. For discrete inputs, ensure the source impedance matches the 10 kOhm input resistance to avoid signal degradation. Wire FET outputs to loads not exceeding 0.5 A per channel. Verify the blown fuse indicator after any short-circuit event before resuming operation.

Maintenance & Reliability

Routine inspection of the module's fuse status and output connections helps maintain uptime. The 36 V transorb protection guards against voltage spikes, reducing component stress. Given its resistance to electromagnetic fields up to 9.1 V/m, the module performs consistently in electrically noisy environments. For installations above sea level, the 5000 m altitude rating ensures reliable operation even in high-altitude facilities.

Compatibility & Integration

The 140EHC20800SC integrates seamlessly with Modicon Quantum automation platforms. It accepts both incremental and quadrature encoder signals, making it versatile for retrofit or new installations. No special communication protocols are required—the module directly interfaces with the Quantum backplane for data exchange.

Selection Guide & Purchasing Advice

Before ordering, verify that your system's backplane has an available slot and that the external power supply meets the 19.2 to 30 V requirement. Confirm the encoder type (incremental or quadrature) matches the module's input capabilities. BluePLC Industrial stocks the 140EHC20800SC and can advise on compatibility with your existing Modicon Quantum system.
