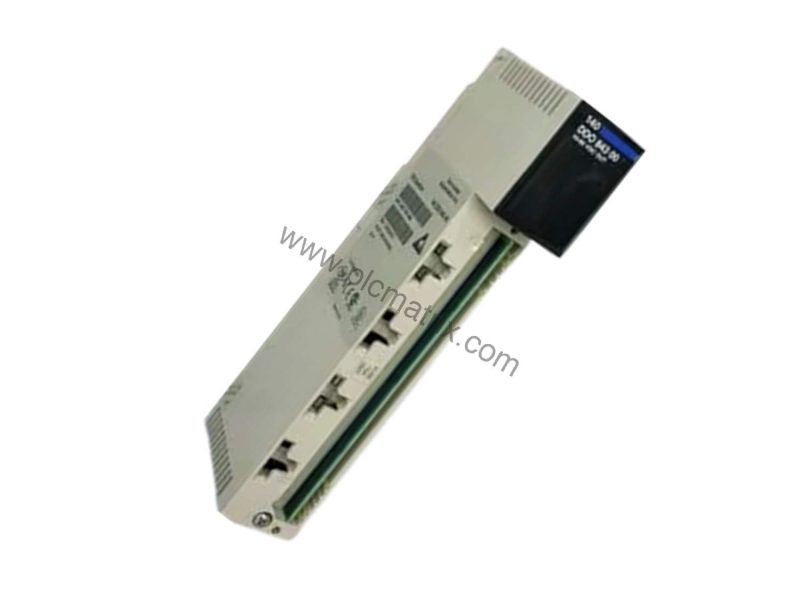

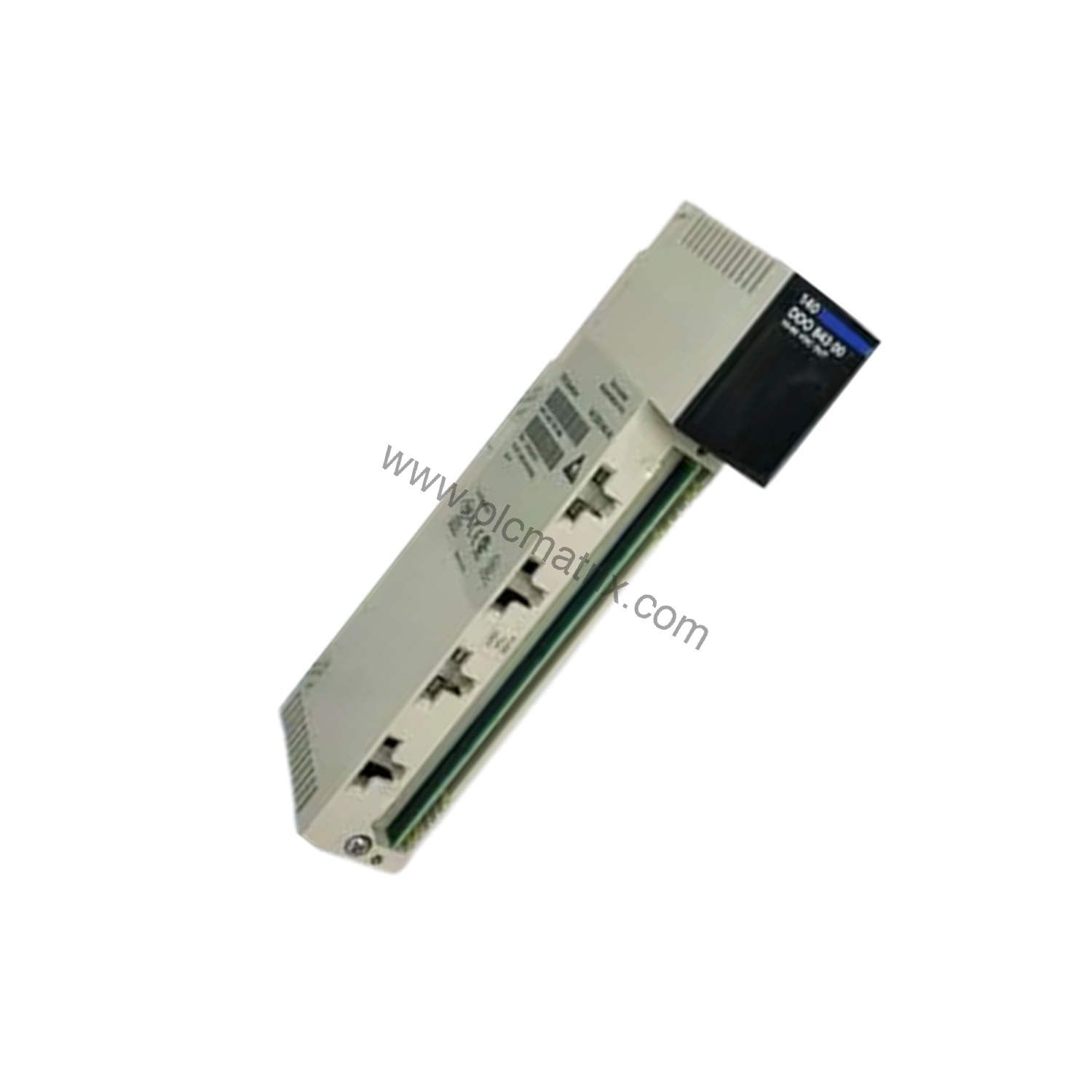

Schneider 140DDO84300C Modicon Quantum 16-Point Discrete Output Module

Product Introduction

When output module failures cause unexpected downtime in your control system, the Schneider 140DDO84300C discrete output module provides a robust solution. Part of the Modicon Quantum automation platform, this module delivers 16 discrete outputs organized into two groups of 8 channels each. Designed for DC voltage applications, it offers reliable switching with positive logic (source) output configuration. The module's conformal coating with Humiseal 1A33 protects against harsh environments, making it a trusted choice for industrial automation engineers seeking long-term dependability.

Technical Specifications Breakdown

Understanding the key parameters of the 140DDO84300C helps maintenance engineers plan for reliable operation. The module supports a discrete output voltage range of 10 to 60 V DC, with output voltage limits from 10.2 to 72 V DC. Its absolute maximum output is 72 V permanent, ensuring safe operation within specified boundaries. The maximum load current reaches 12 A per module and 6 A per group, while each point is protected by a 2 A fuse and each group by an 8 A fuse. Response time is ≤1 ms for both state transitions (0 to 1 and 1 to 0), critical for time-sensitive processes. Power dissipation is 1 W plus 1 V times total module load current, and the module draws 160 mA from the bus.

Industry Applications

The 140DDO84300C excels in manufacturing environments where reliable discrete output control is essential. In material handling systems, its 16 outputs can control solenoid valves, motor starters, and indicator lights across two independent groups, each fused separately for fault isolation. For packaging machinery, the module's fast ≤1 ms response time ensures precise timing for actuators and reject mechanisms. The conformal coating makes it suitable for applications with humidity up to 95% without condensation, such as food processing or chemical plants. From a maintenance perspective, the local signaling with 17 green LEDs and 1 red LED provides immediate visual status of each output and fault conditions, reducing troubleshooting time.

Installation & Setup Guidance

Installing the 140DDO84300C requires careful attention to voltage limits and wiring. The module operates on 10 to 60 V DC outputs, with absolute maximum 72 V permanent—never exceed these values. Each of the two groups of 8 outputs has its own 8 A fuse, and each individual point is protected by a 2 A fuse. Use appropriate wire gauges for the load current, up to 6 A per group. Ensure the bus current requirement of 160 mA is accounted for in your power supply sizing. The module requires 1 output word for addressing. Mount in a standard Modicon Quantum rack and verify proper grounding per the system manual.

Maintenance & Reliability

From a reliability standpoint, the 140DDO84300C offers several features that reduce maintenance burden. The conformal coating protects against moisture and contaminants, extending service life in challenging environments. The internal 8 A fuses per group and 2 A fuses per point provide overcurrent protection without requiring external fusing. Leakage current is less than 1 mA at 60 V, minimizing false triggering of downstream devices. For preventive maintenance, periodically inspect the green and red LEDs to verify output status and fault conditions. The module operates in ambient temperatures from 0 to 60 °C and stores from -40 to 85 °C. When replacing, ensure the replacement module matches the exact part number 140DDO84300C to maintain system integrity.

Compatibility & Integration

The 140DDO84300C integrates seamlessly with the Modicon Quantum automation platform. It uses positive logic (source) output configuration and requires 1 output word for addressing. The module provides isolation between channels and bus at 2500 Vrms DC for 1 minute, and isolation between groups at 700 Vrms DC for 1 minute, ensuring safe operation in mixed-voltage environments. It carries CE marking and certifications including C-Tick, FM Class 1 Division 2, RMRS, and GOST, complying with standards CSA C22.2 No 142 and UL 508. For system integration, verify compatibility with your Quantum backplane and power supply.

Selection Guide & Purchasing Advice

Before purchasing the 140DDO84300C, verify your system requirements: the module provides 16 discrete outputs at 10-60 V DC, with 2 groups of 8 outputs. Ensure your application's load current does not exceed 12 A per module or 6 A per group. The module weight is 0.45 kg net, and package dimensions are 31.2 cm length, 16.3 cm height, and 4.5 cm width. For current availability and lifecycle status, contact BluePLC Industrial. We stock genuine Schneider parts and can assist with replacement or upgrade options for your Modicon Quantum system.
