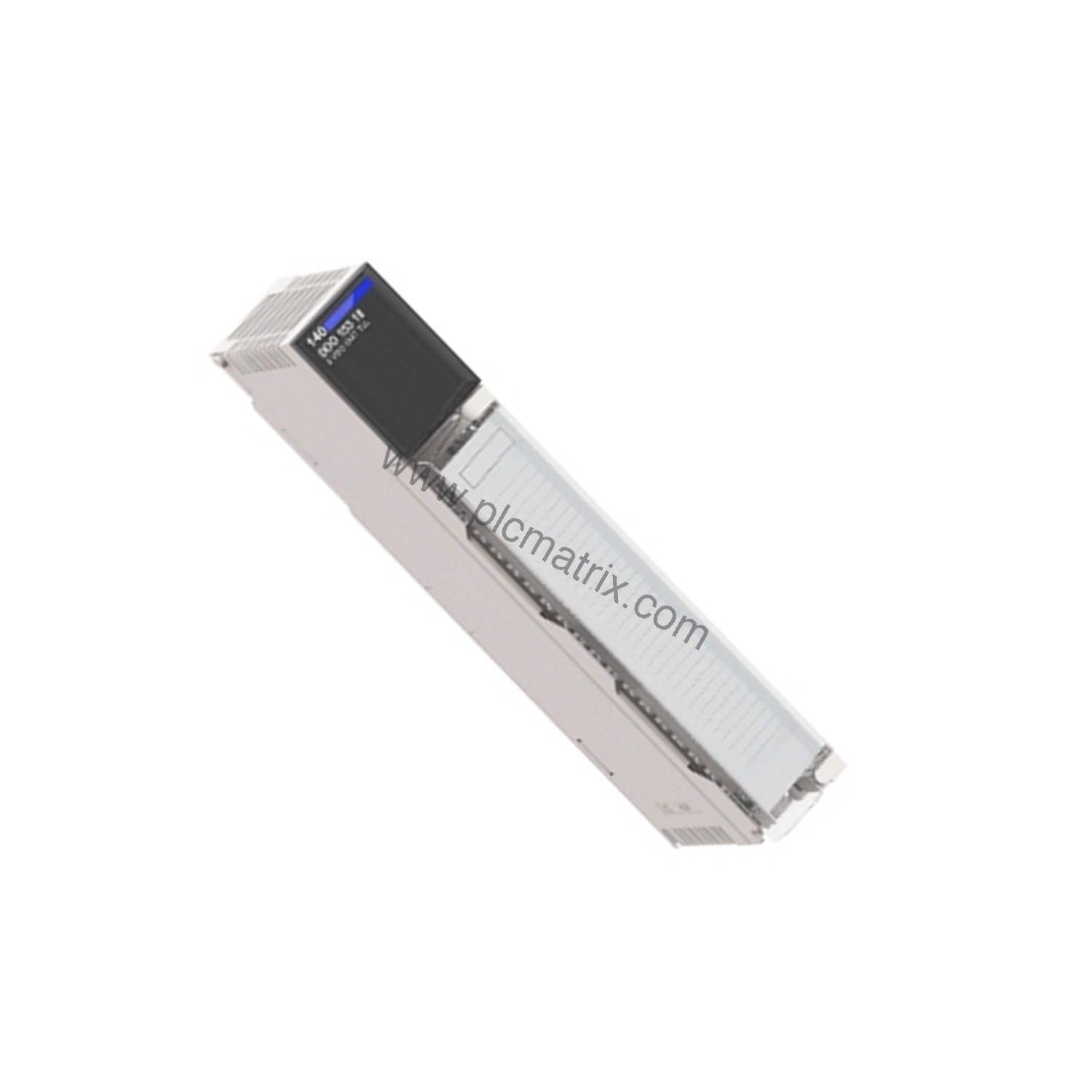

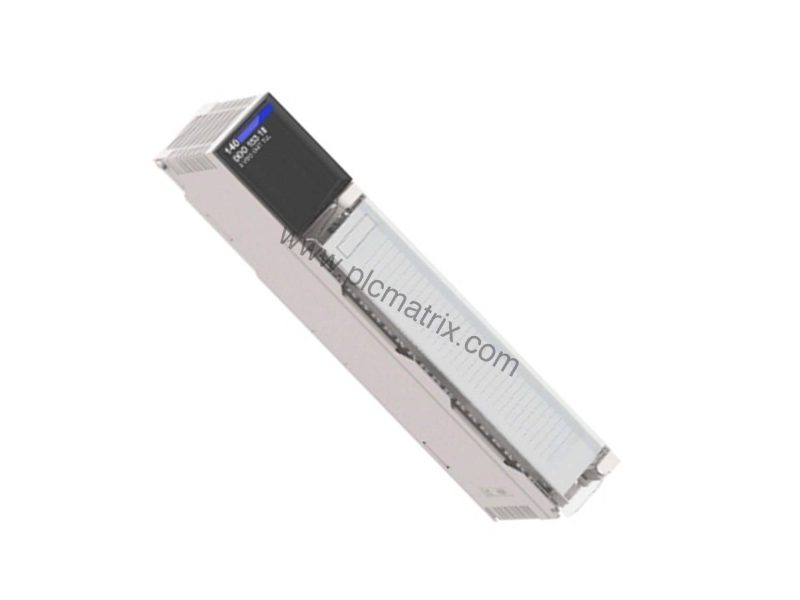

Schneider 140DDO36400C Modicon Quantum 96-Point DC Discrete Output Module

What Is the 140DDO36400C and Why Does It Matter?

When your control system demands reliable switching of DC loads across numerous points, the Schneider 140DDO36400C delivers a proven solution. Part of the Modicon Quantum automation platform, this DC discrete output module provides 96 discrete outputs organized into 6 groups of 16. It operates at a nominal 24 V DC with an output voltage range of 19.2 to 30 V, making it versatile for various industrial applications. The module uses negative logic (sink) and includes short-circuit and overload protection, ensuring robust performance in demanding environments.

Technical Specifications Breakdown

Understanding the key parameters of the 140DDO36400C helps you assess its fit for your system. Each of the 96 points can handle a maximum load current of 0.5 A, with a per-group limit of 3.2 A and a per-module limit of 19.2 A. The surge current capability is 2 A, providing tolerance for temporary spikes. Response time is ≤0.1 ms for both state transitions, enabling fast switching. Maximum leakage current is just 1 mA at 24 V, minimizing power waste. The module dissipates 7 W and requires 250 mA from the bus. Isolation between channels and bus is rated at 500 Vrms DC for 1 minute, enhancing system safety.

Industry Applications

In manufacturing lines where precise control of actuators, valves, or indicator lights is needed, the 140DDO36400C excels. For example, in a packaging facility, its 96 outputs can manage multiple solenoids and motors simultaneously, while the short-circuit protection prevents downtime from wiring faults. In material handling systems, the module's fast response time (≤0.1 ms) ensures synchronized operation of conveyor sections. The wide operating temperature range (0 to 60 °C) and high altitude rating (≤5000 m) make it suitable for both indoor and high-elevation installations.

Installation Guidance

Mount the 140DDO36400C in a standard Modicon Quantum rack, ensuring proper bus connection. The module requires 6 output words for addressing. Use appropriate DC power supply within the 19.2 to 30 V range. For wiring, follow the negative logic (sink) configuration: connect the common of each group to the DC return, and each output to the load. Verify that the total load current per group does not exceed 3.2 A and per module does not exceed 19.2 A. The module includes fault sensing and reporting for loss of field power and point-level faults, simplifying diagnostics.

Maintenance and Reliability

To maximize uptime, periodically inspect the module for dust accumulation and ensure adequate ventilation, as ambient air temperature should stay between 0 and 60 °C. The conformal coating (Humiseal 1A33) protects against moisture and contaminants. With resistance to electrostatic discharge (4 kV contact, 8 kV air) and electromagnetic fields (10 V/m, 80–2000 MHz), the module maintains reliable operation in electrically noisy environments. Regular inspection of wiring and load conditions helps prevent overloads. The module's short-circuit and overload protection reduce the risk of damage from faults.

Compatibility and Integration

The 140DDO36400C integrates seamlessly with the Modicon Quantum automation platform. It communicates via the backplane bus, requiring 250 mA from the bus. The module supports standard Quantum addressing and works with Quantum CPUs and I/O modules. It carries multiple certifications including CSA C22.2 No 142, UL 508, FM Class 1 Division 2, and CE marking, ensuring compliance with international standards. For system integration, confirm that your Quantum rack has an available slot and that the power supply can accommodate the additional bus current.

Selection and Purchasing Advice

Before ordering the 140DDO36400C, verify your system's voltage requirements (19.2 to 30 V DC) and load current limits per point and per group. Ensure your Quantum rack has a free slot and that the addressing scheme (6 output words) aligns with your CPU configuration. BluePLC Industrial offers this module with expert support to help match it to your application. Please verify current lifecycle status and availability with BluePLC Industrial before ordering, as product status may change.
