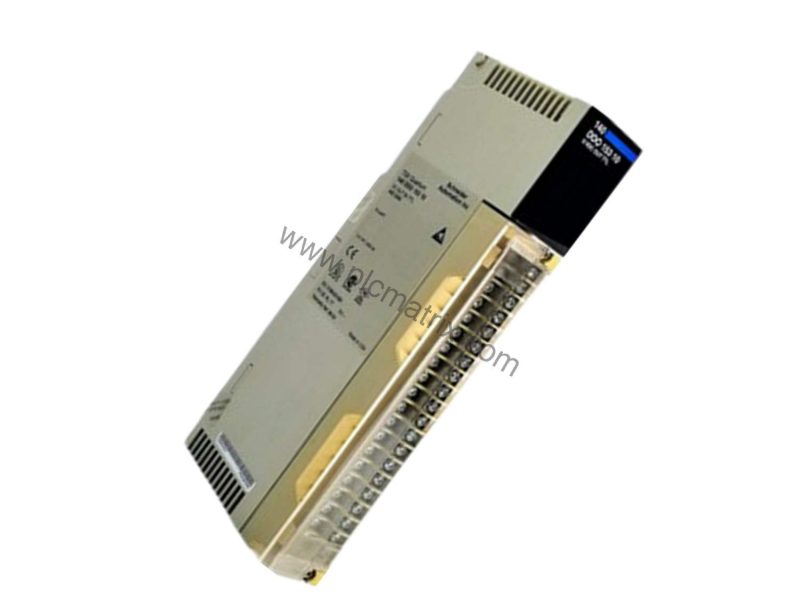

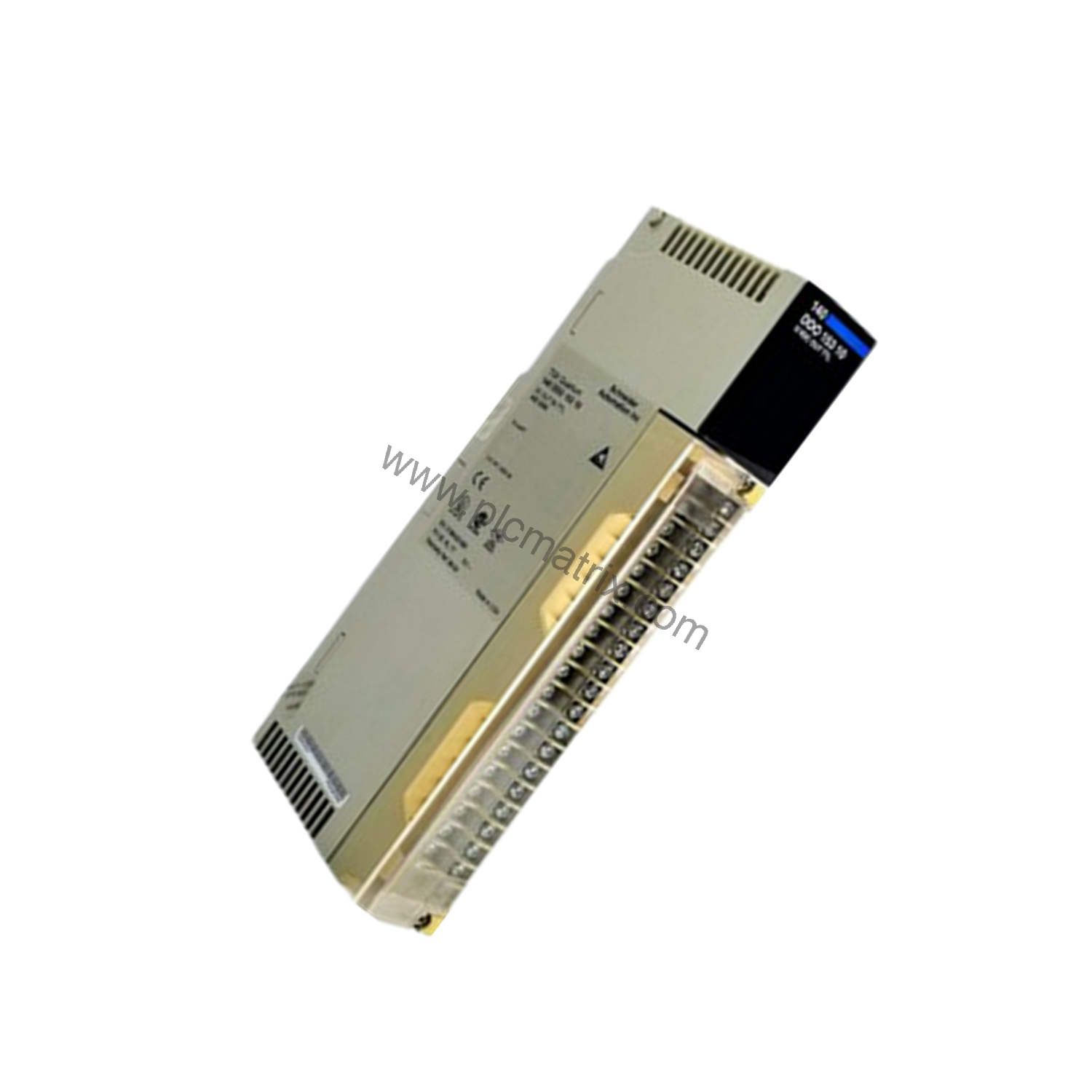

Schneider 140DDO15310C Modicon Quantum TTL Discrete Output Module 32-Channel

Product Overview

When signal integrity and precise low-voltage control are critical in industrial automation, the Schneider 140DDO15310C provides a reliable solution. This TTL discrete output module from the Modicon Quantum series delivers 32 channels of positive (sink) signals at 5 V DC, making it ideal for high-speed digital control in compact systems.

Technical Specifications Breakdown

The 140DDO15310C operates with a rated supply voltage of 4 to 5.5 V DC, ensuring compatibility with standard TTL logic levels. Each of the 32 outputs is organized into four groups of eight channels, with a maximum load current of 75 mA per point and 600 mA per group. The module features an internal pullup resistor of 440 ohms to maintain signal integrity. Surge current capability reaches 750 A for 0.5 ms between points, protecting against electrical spikes. Power dissipation is only 4 W, contributing to energy efficiency. Response time is ≤250 µs for both state transitions, enabling fast switching in demanding applications.

Industry Applications

In high-speed packaging lines, the 140DDO15310C drives TTL-level actuators and indicators with precise timing, reducing cycle delays. For semiconductor manufacturing equipment, its low-voltage output and surge protection ensure reliable operation near sensitive electronics. The conformal coating (Humiseal 1A33) protects against moisture and contaminants, making it suitable for harsh environments like automotive assembly.

Installation & Setup Guidance

When installing the 140DDO15310C, ensure the bus current requirement of 350 mA is accounted for in the power supply design. The module requires two output words for addressing, simplifying integration into Quantum backplanes. Use the 32 green LEDs for real-time output status monitoring and the red LED for fault detection (blown fuse or loss of field power). Mount in a clean, dry location within the ambient temperature range of 0 to 60 °C.

Maintenance & Reliability

To maximize uptime, inspect the module periodically for environmental stress. The conformal coating provides robust protection, but verify that the operating altitude does not exceed 5000 m. The internal fuse and transient voltage suppression reduce downtime from electrical faults. Regular checks of the bus communication LED (green) ensure proper integration.

Compatibility & Integration

The 140DDO15310C integrates seamlessly with the Modicon Quantum automation platform. It supports standard Quantum backplanes and is certified with UL 508 and CSA C22.2 No 142. The module is also approved for FM Class 1 Division 2 hazardous locations, expanding its use in oil and gas or chemical processing.

Selection Guide & Purchasing Advice

Before ordering, verify that your system requires a TTL positive (sink) output module with 32 channels at 5 V DC. Confirm the bus current capacity and addressing scheme. For current availability and lifecycle status, contact BluePLC Industrial. They offer expert support and reliable sourcing for this and other Modicon Quantum components.
