Schneider 140DAO84010 Modicon Quantum AC Discrete Output Module

Product Introduction

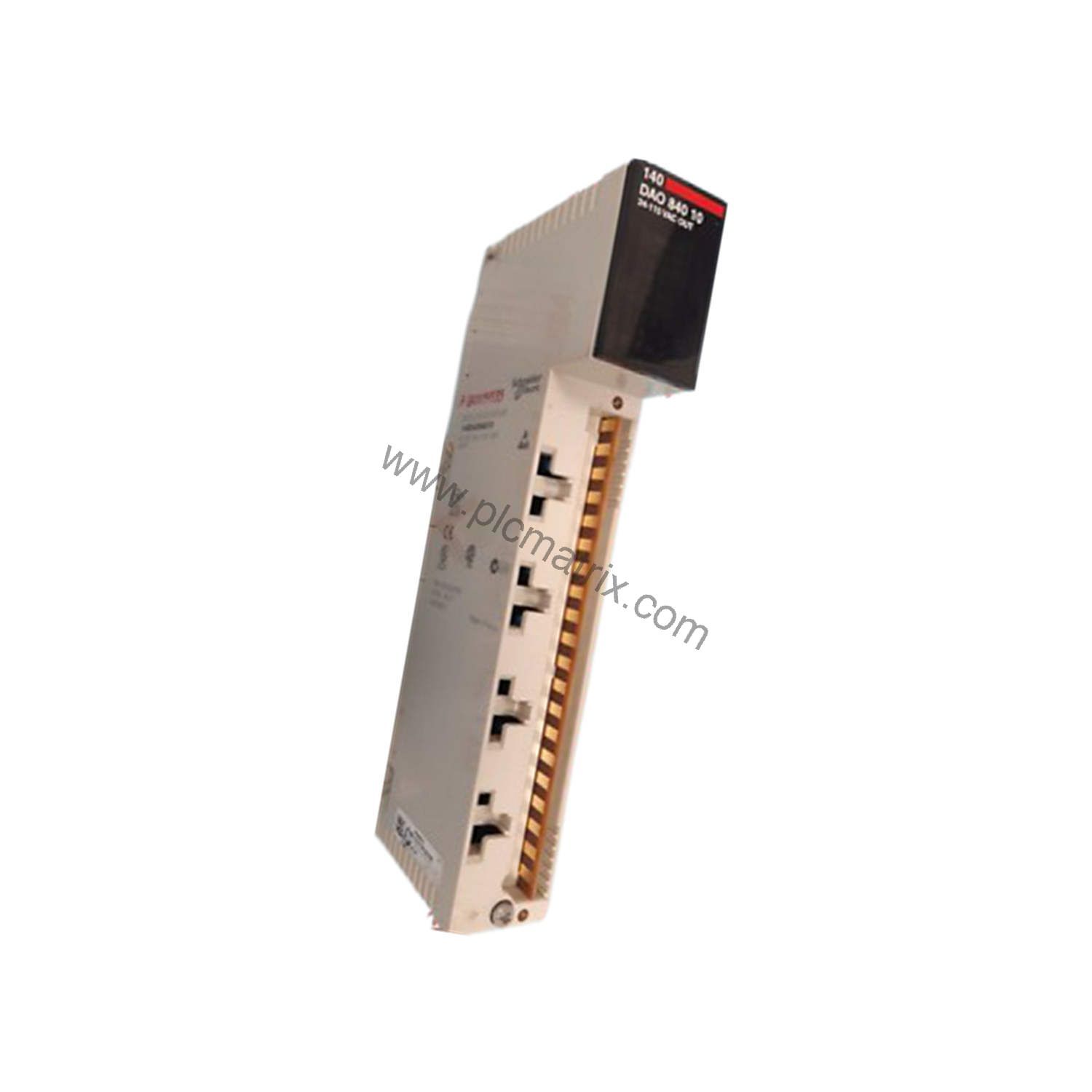

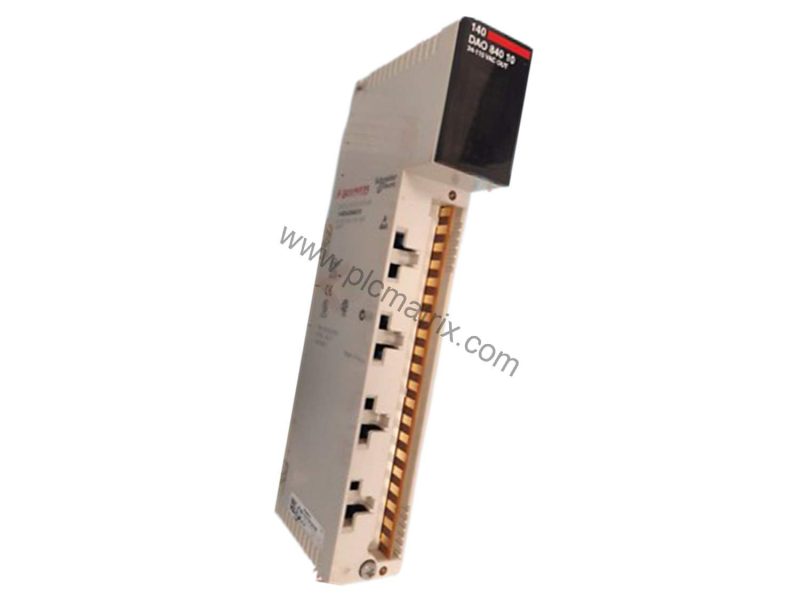

When industrial automation systems require reliable discrete output control, the Schneider Electric 140DAO84010 delivers a robust solution. This module is part of the Modicon Quantum automation platform, designed as an AC discrete output module with 16 isolated channels. Each channel operates independently, providing enhanced protection for connected devices and simplifying troubleshooting in complex installations. The 140DAO84010 is CE marked, ensuring compliance with European standards for industrial equipment.

Technical Specifications Breakdown

The 140DAO84010 offers a discrete output voltage range of 20 to 132V AC, making it suitable for a variety of AC loads. It operates at a supply frequency of 47-63 Hz and features a maximum voltage drop of only 1.5V, minimizing power loss. The module is organized into 16 groups of 1 channel each, providing full isolation per point. Key performance metrics include an absolute maximum output of 156V for 10 seconds AC and 200V for one cycle AC, with a dv/dt rating of 400 V/ms. Response time is ≤0.5 ms for both state transitions, ensuring fast switching. The module requires 1 output word for addressing and draws 350 mA from the bus. Power dissipation is calculated as 1.85 + (1.1 V x total module load current). An internal RC filter provides protection, and an associated fuse rating of 5 A is recommended.

Industry Applications

This module excels in applications requiring isolated AC output control, such as motor starters, solenoid valves, and indicator lights in manufacturing lines. For example, in a packaging facility, the 140DAO84010 can independently control 16 AC-powered actuators, with each channel isolated to prevent fault propagation. The isolated design also simplifies system integration by allowing mixed voltage levels within the same module, reducing the need for additional components. Its wide operating temperature range of 0°C to 60°C and storage range of -40°C to 85°C make it suitable for demanding environments.

Installation & Setup Guidance

Mount the 140DAO84010 on a standard Quantum rack using the rack-mountable format. Ensure the bus current requirement of 350 mA is accounted for in the power supply sizing. Connect AC loads to the output terminals, respecting the maximum load current of 4 A rms per point (20-132V AC) and 16 A rms per module. For continuous operation, limit the sum of four points to 4 A rms. Verify that the supply frequency matches the 47-63 Hz range. The module provides local signaling with one green LED for bus communication (Active), one red LED for external fault (F), and 16 green LEDs for input status, aiding in quick diagnostics during commissioning.

Maintenance & Reliability

Regular inspection of the module's LEDs and connections helps ensure reliable operation. The isolated output design reduces stress on adjacent channels, extending overall module life. Operating within the specified temperature and humidity limits (95% without condensation) prevents premature failure. The internal RC filter protection minimizes electrical noise, contributing to long-term stability. For cost-effective maintenance, verify that the associated fuse rating of 5 A is used to protect against overcurrent conditions.

Selection Guide & Purchasing Advice

Before purchasing the 140DAO84010, confirm compatibility with your Quantum backplane and power supply. Verify that your application requires 16 isolated AC outputs within the 20-132V AC range. BluePLC Industrial offers this module with reliable availability and expert support to help you integrate it into your automation system. Contact us to confirm current lifecycle status and ensure the module meets your project requirements.
