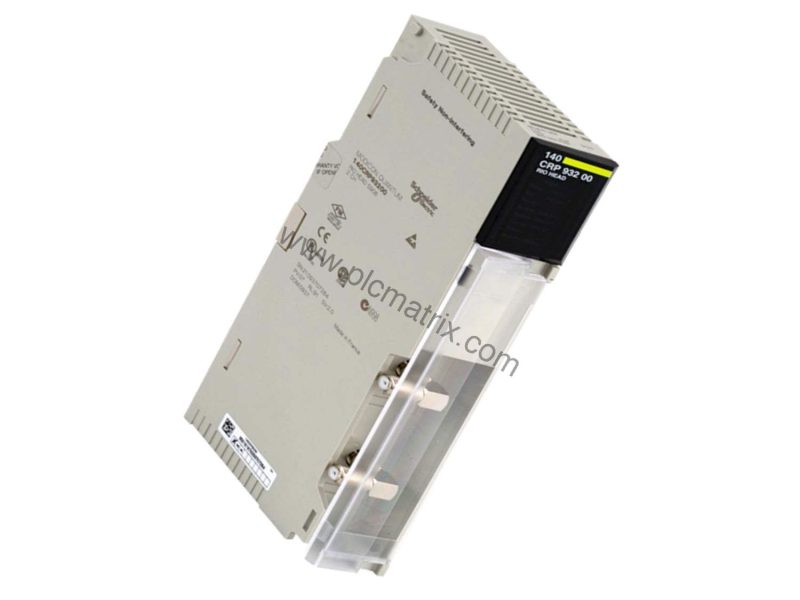

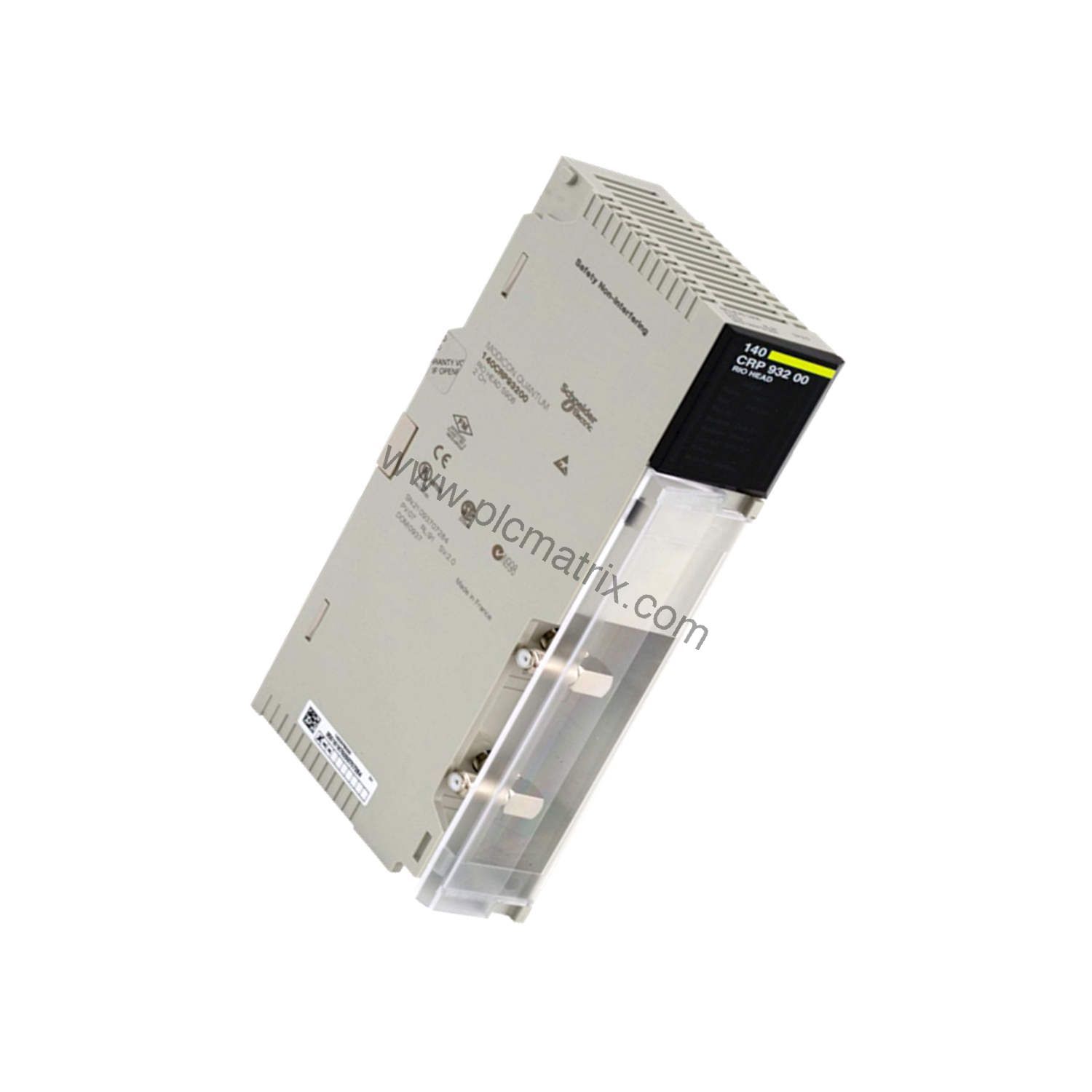

Schneider 140CRP93200C Modicon Quantum RIO Head-End Adaptor Module

Product Introduction

As industrial networks evolved from point-to-point wiring to distributed control, the need for reliable remote I/O communication became critical. The Schneider 140CRP93200C RIO head-end adaptor module meets this demand within the Modicon Quantum automation platform. It serves as the central link between a controller and up to 31 remote drops, ensuring deterministic data exchange for real-time processes.

Technical Specifications Breakdown

The 140CRP93200C delivers a transmission rate of 1544 Mbit/s over 75 Ohm coaxial cable, providing high-speed communication for time-sensitive applications. Its dynamic range of 35 dB ensures robust signal integrity even in electrically noisy environments. Each drop supports 64 input and 64 output words, offering substantial I/O capacity for complex systems. The module dissipates only 3 W of power, minimizing heat buildup in crowded cabinets. With an isolation voltage of 500 V DC between coaxial center and ground, it protects against ground loops and transient voltages. Operating temperature spans 0 to 60 °C, making it suitable for typical industrial floor conditions.

Industry Applications

In manufacturing plants, the 140CRP93200C connects remote sensor arrays and actuator banks to a central Quantum PLC, reducing wiring costs and simplifying maintenance. For material handling systems, its 31-drop capacity allows coordination of multiple conveyor zones from a single head-end module. The high transmission rate supports fast logic updates in packaging or sorting lines where cycle times are critical.

Installation & Setup Guidance

Mount the 140CRP93200C in a standard Quantum rack using the provided format. Connect the 75 Ohm coaxial cable to the two female F connectors (elbowed, with redundant cable). Ensure proper termination at both ends to maintain signal quality. The module performs diagnostic checks at power-up, including LAN controller and memory tests, simplifying initial commissioning. Verify bus current requirement of 750 mA for two channels to avoid overloading the backplane.

Maintenance & Reliability

The conformal coating (Humiseal 1A33) protects the module against moisture and contaminants, extending service life in harsh environments. Storage temperature range of -40 to 85 °C allows safe spare part storage. Regular inspection of coaxial connections and cable integrity helps prevent intermittent faults. With only 3 W dissipation, the module runs cool, reducing thermal stress on adjacent components.

Compatibility & Integration

The 140CRP93200C integrates seamlessly with Quantum 200/500/800 series controllers and Symax systems. It supports any mix of remote drops, offering flexibility in system design. The module carries certifications including UL 508, CUL, CSA C22.2 No 142, and FM Class 1 Division 2, ensuring compliance with North American and international standards. CE marking confirms conformity with European directives.

Selection Guide & Purchasing Advice

Before ordering, verify that your system requires a RIO head-end adaptor and that the 1544 Mbit/s transmission rate matches your network topology. Confirm compatibility with existing Quantum controllers and cable infrastructure. BluePLC Industrial stocks the 140CRP93200C and can advise on availability and lifecycle status. Contact our team for current pricing and lead times.
