Schneider 140CRA31908 Ethernet RIO Drop Adaptor for Modicon Quantum

Product Overview

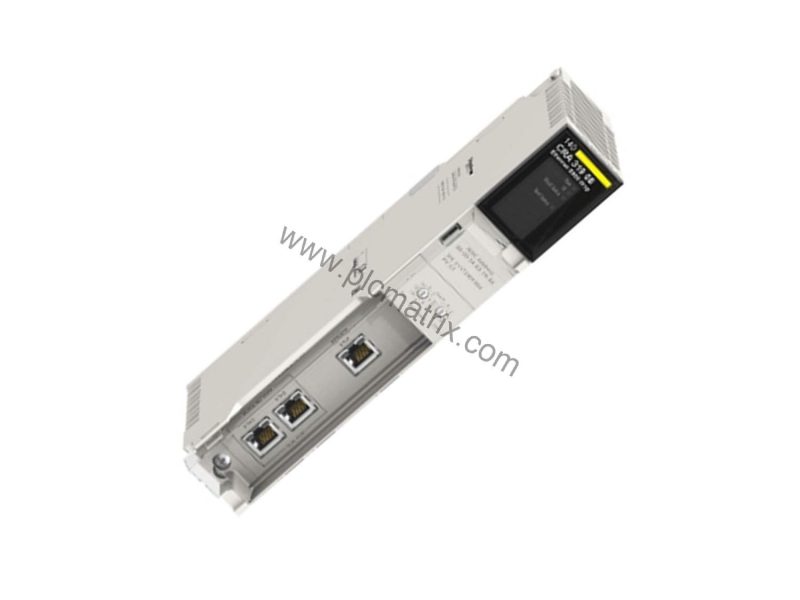

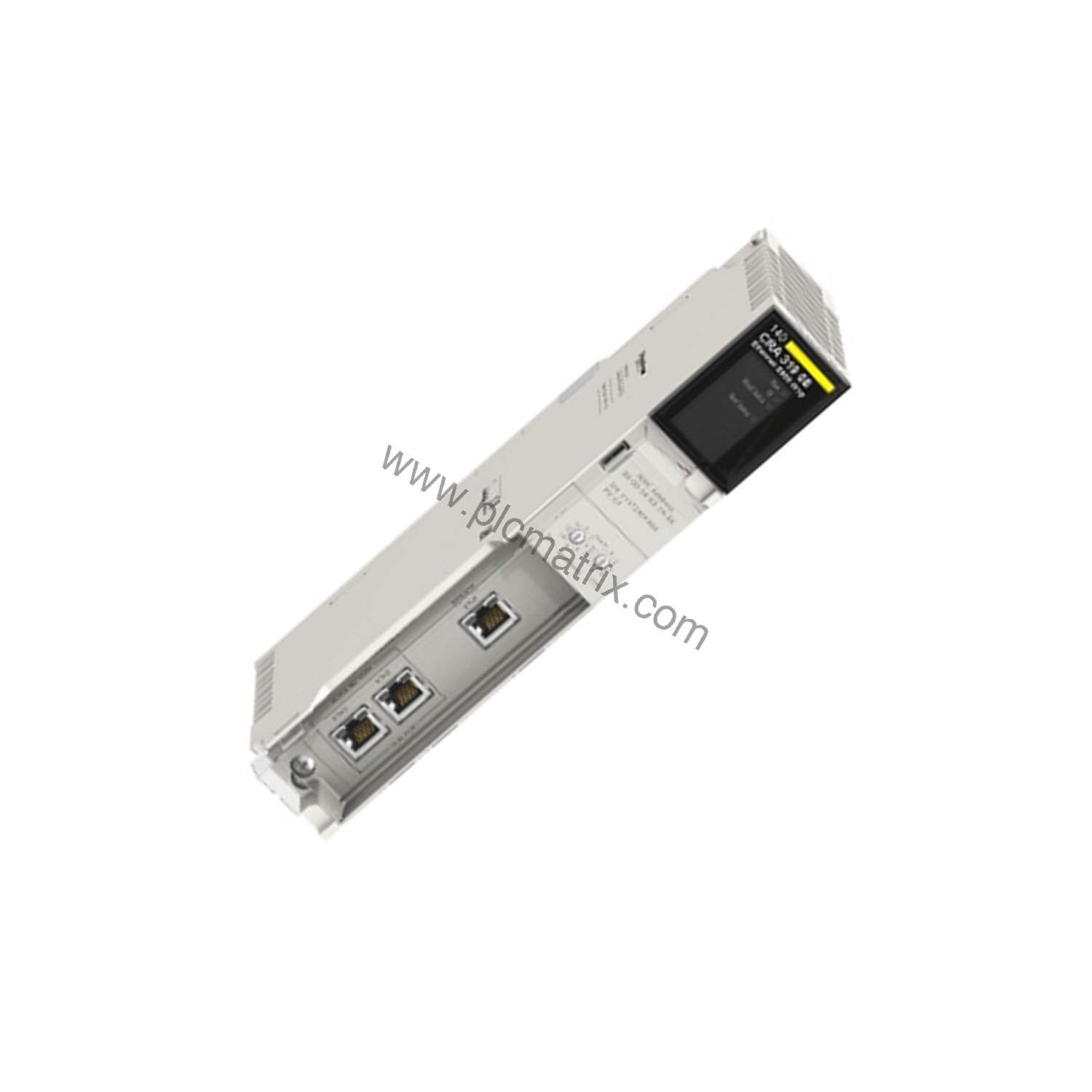

When integrating Modicon Quantum I/O into a modern M580 control system, the Schneider 140CRA31908 Ethernet RIO Drop Adaptor provides a direct and reliable bridge. Designed for the Modicon Quantum series, this adaptor collects input data and publishes it to the remote I/O head adaptor, while updating output modules with received data. It operates on a rated voltage of 5 VDC and draws 1.2 A, with a maximum power rating of 6 W. The compact unit measures 6.6 inches wide and 2.0 inches high, weighing just 1.221 lb (0.554 kg), making it easy to install in crowded cabinets.

Technical Specifications Breakdown

Key parameters from the datasheet define the 140CRA31908's capabilities. It features three Ethernet ports, each supporting both EtherNet/IP and Modbus TCP protocols, enabling flexible network topologies like daisy chain loop or S908 bus. Four LEDs provide clear local signaling: one green/red for module status, one green/red for network communication status, one green for RUN, and one red for I/O status. The adaptor is rated for operation in ambient temperatures from 0 to 60 °C and humidity up to 80% non-condensing. Its IP20 protection rating suits typical industrial environments, and it can be installed at altitudes up to 2000 m.

Industry Applications

In a typical manufacturing plant, the 140CRA31908 enables a M580 controller to manage remote I/O racks over a standard Ethernet network, eliminating the need for legacy coaxial cabling. For example, in a conveyor system with distributed sensors and actuators, this adaptor collects input data from the remote I/O and sends output commands, all while the four LEDs allow maintenance engineers to quickly verify module and network status. This reduces troubleshooting time and improves system uptime.

Installation & Setup Guidance

Before installation, confirm that the host controller (such as BMEP586040 or BMEH584040) is compatible. Mount the adaptor in a dry, ventilated enclosure with sufficient clearance for cable connections. Connect the three Ethernet ports using shielded CAT5e or better cables, ensuring proper termination for daisy chain or star topologies. Apply 5 VDC power from the Quantum backplane or an external supply rated for 1.2 A. After power-up, check the four LEDs: the green RUN LED should illuminate steady, and the Net Status LED should indicate network connectivity. Refer to the Modicon Quantum user manual for detailed configuration of EtherNet/IP and Modbus TCP parameters.

Maintenance & Reliability

From a maintenance engineer's perspective, the 140CRA31908 offers straightforward reliability. The absence of moving parts and the IP20 enclosure reduce wear. Periodically inspect the unit for dust accumulation on the ventilation slots and clean with a dry, low-pressure air stream. Verify that the ambient temperature stays within 0 to 60 °C and humidity below 80% non-condensing. The four LEDs provide immediate visual feedback; if the I/O LED turns red, check the remote I/O connections and power supply. Regular inspection of Ethernet cable integrity and connector seating helps prevent intermittent faults. Following these simple steps maximizes the adaptor's service life and minimizes unplanned downtime.

Compatibility & Integration

The 140CRA31908 is designed for the Modicon Quantum product line and is compatible with controllers such as BMEP586040, BMEH584040, BMEP585040, BMEH586040, and BMEP584040. It supports two communication protocols—EtherNet/IP and Modbus TCP—allowing integration with a wide range of PLCs and SCADA systems. The three Ethernet ports enable flexible topologies including daisy chain loop and S908 bus configurations. This adaptor is specifically intended to provide the ability for an M580 system to control Modicon S908 coaxial bus I/O, making it a key component for system upgrades without replacing existing field wiring.

Selection Guide & Purchasing Advice

When ordering the 140CRA31908, verify that your system voltage matches the 5 VDC requirement and that your controller is among the compatible models listed above. The adaptor is not returnable, so confirm your application needs before purchase. BluePLC Industrial stocks this Schneider Ethernet RIO Drop Adaptor and can provide current lifecycle status and availability. Contact our team to ensure the 140CRA31908 fits your upgrade or new installation project.
