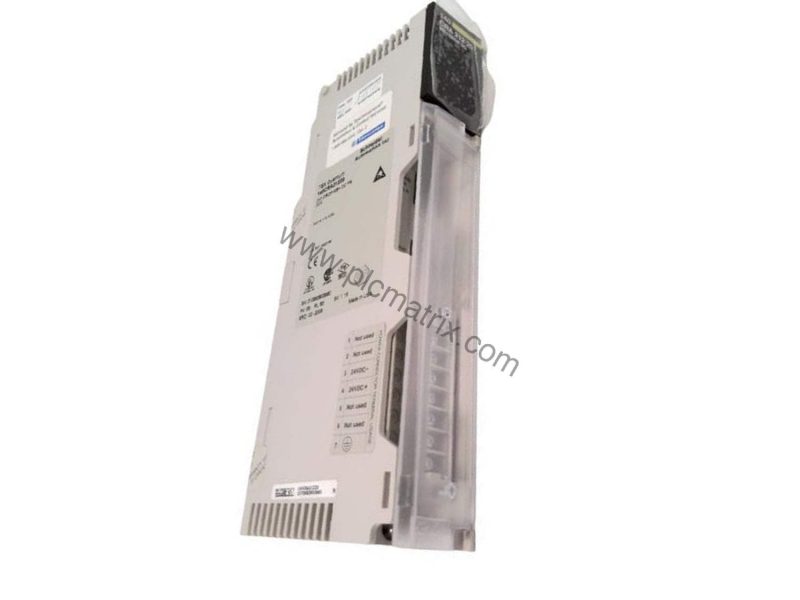

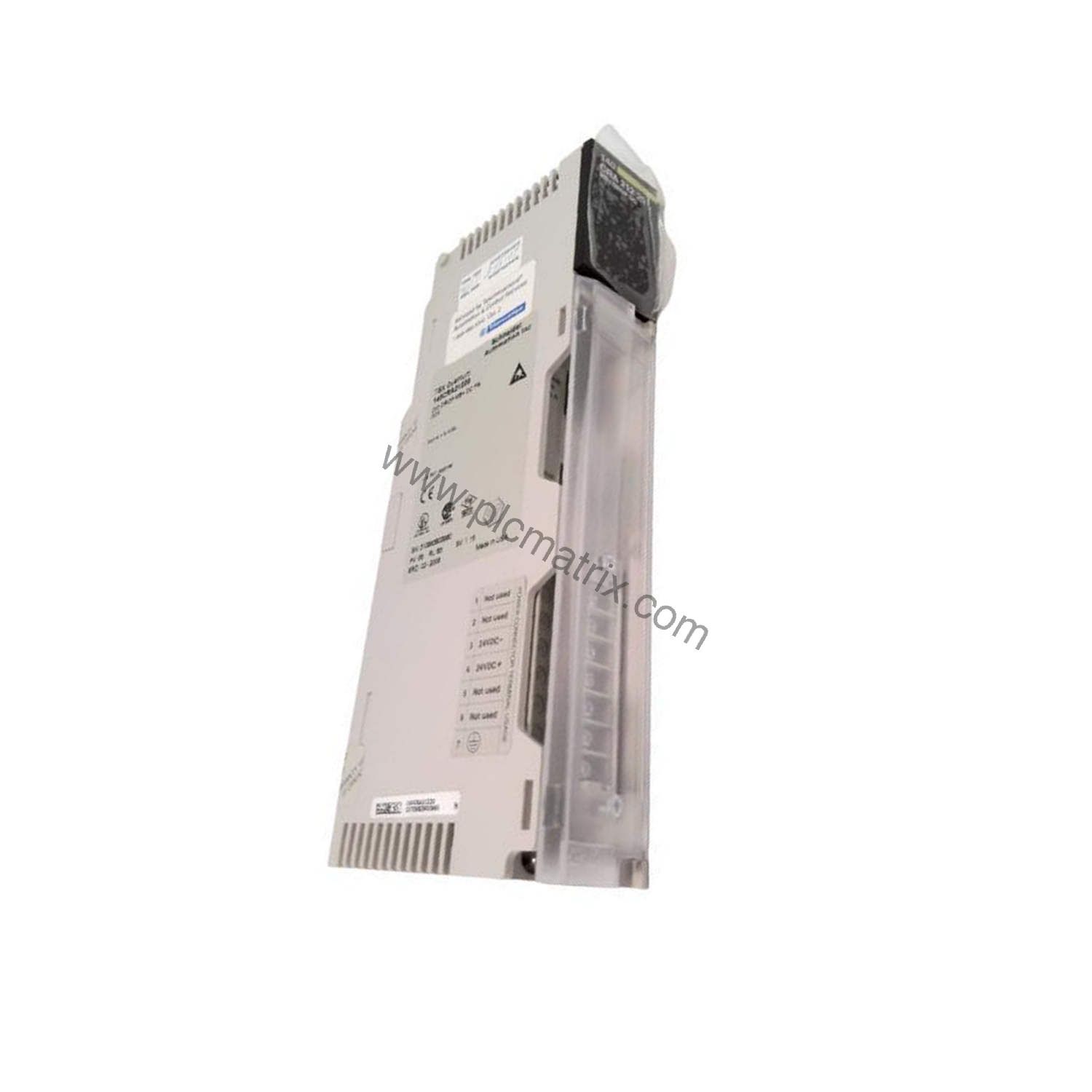

Schneider 140CRA21220C DIO Drop Interface for Modicon Quantum

Product Overview

When system reliability is critical in distributed I/O architectures, the Schneider Electric 140CRA21220C provides a robust DIO drop interface solution. Part of the Modicon Quantum product line, this interface is engineered to handle demanding industrial environments with two redundant ports that ensure continuous communication even if one path fails. Operating on a 24 VDC supply voltage with a tolerance from 20 to 30 V, it adapts to fluctuating power conditions without compromising performance.

Technical Specifications Breakdown

The 140CRA21220C delivers key specifications that matter for real-world automation. It manages inrush currents up to 30 A, preventing nuisance tripping during startup. The interface provides a regulated output voltage of 5.1 V and can supply up to 3 A to connected devices. Power dissipation is rated at 11 W, ensuring efficient thermal management. Built-in short-circuit and overvoltage protection safeguard both the module and downstream equipment from electrical faults. The device also features a maximum buffer time of 1 ms and a fuse rating of 2.5 A for additional circuit protection.

Industry Applications

In manufacturing plants where remote I/O racks are distributed across long distances, the 140CRA21220C acts as a reliable communication bridge. For example, in a conveyor system with multiple zones, this DIO drop interface collects sensor and actuator signals and transmits them to the central controller via its redundant ports. The conformal coating protects against humidity up to 95% without condensation, making it suitable for food processing or chemical facilities. Its altitude tolerance up to 5000 m also supports installations in high-altitude regions.

Installation & Setup Guidance

Mount the 140CRA21220C on a standard DIN rail within the Quantum backplane. Connect the 24 VDC power supply to the designated terminals, ensuring the voltage stays within the 20 to 30 V limits. Use twisted-pair cables for the redundant port connections to minimize electromagnetic interference. Verify that the total inrush current of connected devices does not exceed 30 A. The module's LED indicators help confirm proper power and communication status after installation.

Maintenance & Reliability

To maximize uptime, inspect the 140CRA21220C periodically for signs of moisture or contamination, especially in high-humidity environments. The conformal coating provides a first line of defense, but routine visual checks are recommended. Ensure the ambient temperature stays within the module's operating range and that airflow around the unit is not obstructed. Given the short-circuit and overvoltage protection, the interface is designed to withstand minor electrical disturbances, reducing the need for frequent replacements.

Compatibility & Integration

The 140CRA21220C integrates seamlessly with Modicon Quantum automation platforms. It communicates with the main controller via the backplane bus, supporting both discrete and analog I/O modules in the same rack. The two redundant ports allow connection to redundant control networks, enhancing system availability. For systems requiring high reliability, pair this interface with a redundant power supply module to eliminate single points of failure.

Selection Guide & Purchasing Advice

Before ordering the 140CRA21220C, verify that your system uses a 24 VDC power source within the specified limits. Confirm the required number of redundant ports and ensure your backplane has an available slot. BluePLC Industrial offers this DIO drop interface with fast shipping and expert support to help you select the right components for your automation project.
