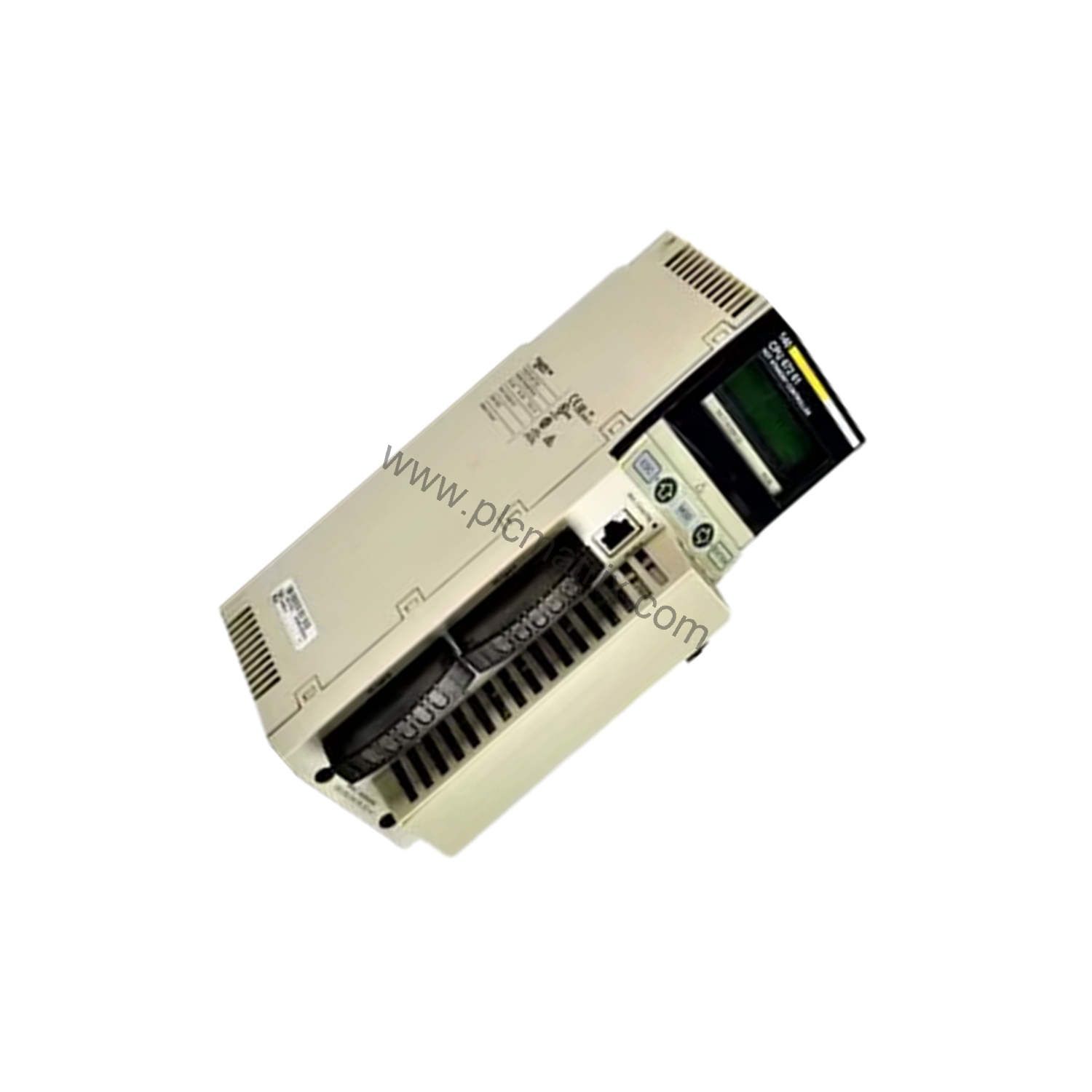

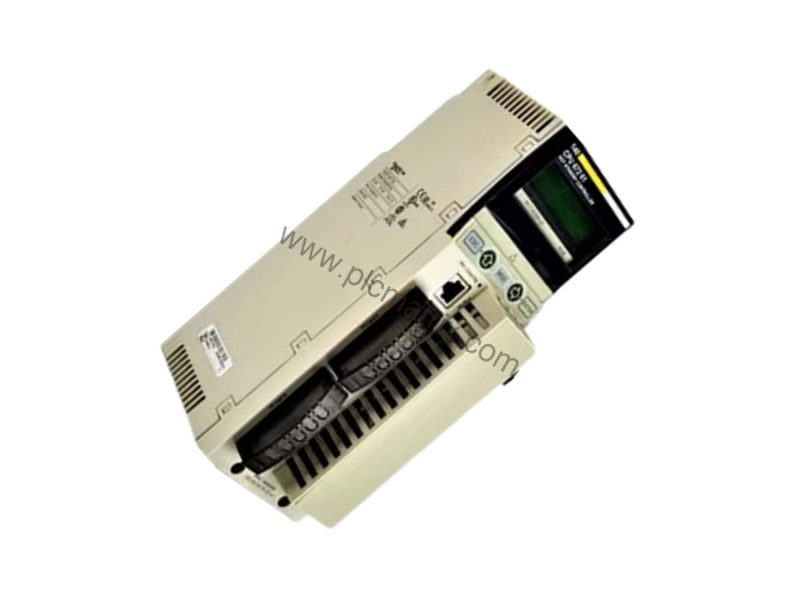

Schneider 140CPU67261 Unity Processor for Modicon Quantum PLC

Product Introduction

When your automation system demands unwavering reliability and high-speed processing, the Schneider Electric 140CPU67261 delivers. This Unity Processor, part of the Modicon Quantum series, operates at a clock frequency of 266 MHz, ensuring robust performance for complex control tasks. Designed for critical applications, it includes a hot standby processor feature to maintain system availability during failures, minimizing costly downtime. With support for Ethernet, Modbus, and Modbus Plus communication protocols, this module integrates seamlessly into diverse network architectures, making it a versatile choice for modern industrial environments.

Technical Specifications Breakdown

The 140CPU67261 offers 3072 KB of RAM, providing ample memory for data handling and processing in demanding control systems. Its bus current requirement of 2760 mA ensures stable operation within the Quantum backplane. The processor supports single mode transmission, enabling reliable long-distance communication. For environmental resilience, the operating temperature range spans 0°C to 60°C, while storage tolerance extends from -40°C to 85°C, safeguarding the module in harsh conditions. Additionally, it accommodates up to two local racks, allowing for scalable system configurations.

Industry Applications

This processor excels in sectors where uptime is paramount, such as manufacturing, energy, and water treatment. In a production line, the hot standby redundancy ensures seamless operation even if the primary processor fails, preventing production halts. The accurate time stamping I/O capability enhances diagnostics and data logging, critical for quality control and regulatory compliance. The support for high-speed interrupt inputs and counter I/O makes it ideal for high-speed packaging or material handling applications where precise event handling is required.

Installation & Setup Guidance

Mount the 140CPU67261 directly into a Modicon Quantum rack using the rack mountable design, which simplifies installation in control cabinets. Ensure the backplane provides sufficient bus current (2760 mA) to power the module. Connect the Ethernet, Modbus, and Modbus Plus ports according to your network topology, verifying cable types and distances for optimal signal integrity. For hot standby configurations, follow the manufacturer's guidelines to pair two processors correctly, ensuring seamless failover.

Maintenance & Reliability

To maximize the lifespan of the 140CPU67261, perform periodic inspections of the rack connections and communication cables. Keep the operating environment within the specified temperature range (0°C to 60°C) to prevent thermal stress. The hot standby feature reduces maintenance impact by allowing one processor to be serviced while the other maintains control. Regularly review system logs for any timestamp anomalies, which can indicate potential issues before they escalate.

Compatibility & Integration

The 140CPU67261 integrates with the Modicon Quantum automation platform, supporting Unity Pro software for configuration and programming. Its communication ports—Ethernet, Modbus, and Modbus Plus—enable connectivity with a wide range of devices, including drives, HMIs, and other PLCs. The processor also supports serial link I/O and counter I/O modules, expanding its application scope. For larger systems, it can manage up to two local racks, coordinating with remote I/O via the supported protocols.

Selection Guide & Purchasing Advice

Before purchasing the 140CPU67261, verify that your existing Quantum backplane and power supply can meet the bus current requirement of 2760 mA. Confirm that your system software supports Unity Processor firmware for seamless integration. For redundancy applications, order two units to implement hot standby. BluePLC Industrial offers this module with reliable availability and expert support to help you select the right configuration for your automation needs. Contact our team to confirm lifecycle status and ensure compatibility with your current setup.
