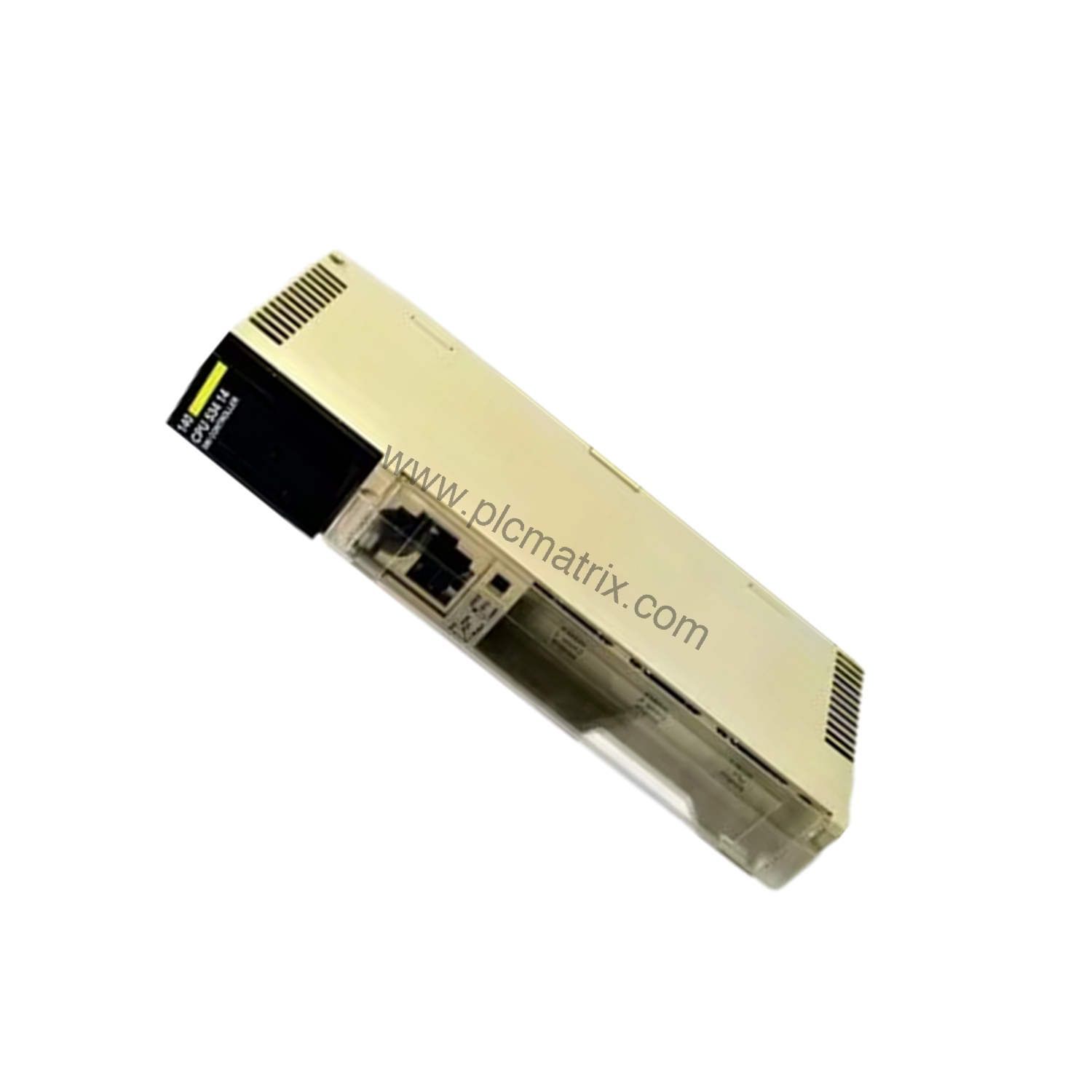

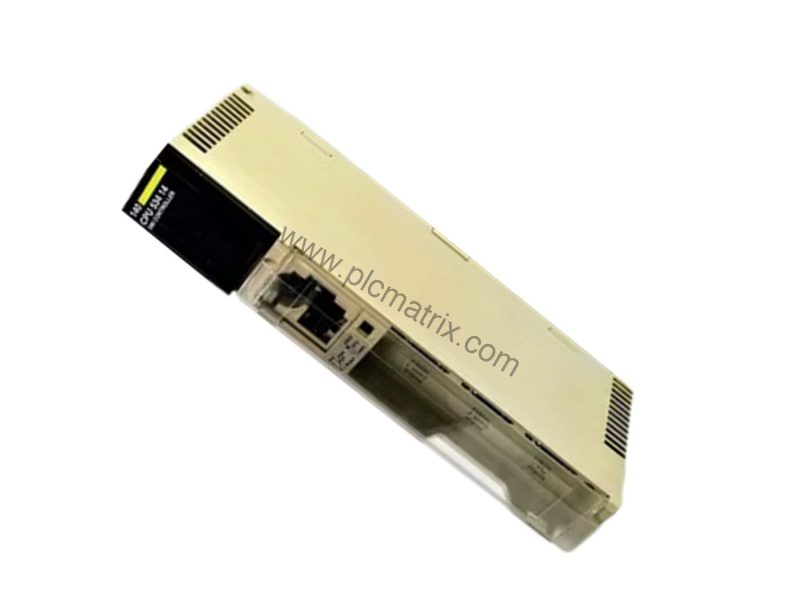

Schneider 140CPU53414UC Modicon Quantum Unity Processor Module

Product Introduction

When a manufacturing line requires precise control and rapid logic execution under harsh conditions, the Schneider 140CPU53414UC Modicon Quantum Unity processor module delivers reliable performance. This CPU module supports two local racks, allowing system expansion without compromising speed. With 586 KB of RAM and 4 MB of program memory, it handles complex automation tasks efficiently. The integrated Modbus RS232/Plus ports ensure seamless communication with field devices, making it a robust choice for demanding industrial environments.

Technical Specifications Breakdown

The 140CPU53414UC features a Quantum Unity processor with a clock frequency of 100 MHz, ensuring fast processing. Its Boolean execution time ranges from 0.1 to 0.27 microseconds, enabling rapid response in control loops. The module includes 586 KB of internal RAM and 2972 kB of additional memory for programming, providing ample space for large applications. Communication memory exceeds 1 MB plus CC, supporting extensive data exchange. The instruction rate of 1.86–2.49 Kinst/ms guarantees efficient program execution. A watchdog timer of 250 ms enhances system reliability by detecting faults. The module requires a 5 V DC power supply and draws 1250 mA from the bus. It operates within an ambient temperature range of 32 to 140 °F (0 to 60 °C) and can be stored from -40 to 185 °F (-40 to 85 °C). The unit weighs 0.85 kg (1.87 lb) and carries CE, cUL, and FM Class 1 Division 2 certifications.

Industry Applications

In discrete manufacturing, the 140CPU53414UC excels at controlling assembly lines with high-speed logic. Its fast Boolean execution minimizes cycle times, boosting throughput. In process industries, the Modbus RS232/Plus ports enable integration with sensors and actuators, ensuring precise monitoring and control. The module's protective coating (CC) guards against dust and moisture, extending service life in harsh environments. For example, a packaging plant can use this processor to coordinate multiple conveyors and robots, reducing downtime and improving efficiency.

Installation & Setup Guidance

To install the 140CPU53414UC, mount it in a standard Modicon Quantum rack. Ensure the backplane supplies 5 V DC and does not exceed the 1250 mA bus current requirement. Connect the Modbus RS232/Plus ports to compatible devices using shielded cables to minimize interference. Configure the processor using ProWORX 32 or Concept software. Set the key switch to the desired operating mode (run, stop, or program). Verify that the ambient temperature stays within 32 to 140 °F (0 to 60 °C) and that relative humidity remains below 95% without condensation. Perform a power-on test and check the LED indicators for status and errors.

Maintenance & Reliability

Regular inspection of the 140CPU53414UC ensures long-term reliability. Periodically check the LED indicators for error signals. The lithium battery (1.2 Ah) maintains memory for up to 10 years; replace it when the low-battery alarm activates. Keep the module free from dust and moisture to preserve the protective coating. The watchdog timer (250 ms) automatically resets the processor if a fault occurs, minimizing downtime. Following these practices reduces unexpected failures and extends the product's service life, delivering a strong return on investment.

Compatibility & Integration

The 140CPU53414UC integrates seamlessly with the Modicon Quantum automation platform. It supports two local racks and up to 31 remote drops, with 64 I/O words for local and remote configurations. The Modbus RS232/Plus ports enable communication with distributed I/O and other Modbus devices. The processor is compatible with ProWORX 32 and Concept programming software. For network expansion, it can manage up to two remote networks and three distributed networks, each supporting 500 I/O words. This flexibility makes it suitable for both centralized and distributed control architectures.

Selection Guide & Purchasing Advice

Before purchasing the 140CPU53414UC, verify that your system requires a Quantum Unity processor with 586 KB RAM and 4 MB program memory. Confirm the power supply provides 5 V DC and sufficient current. Check compatibility with existing racks and I/O modules. For current availability and lifecycle status, contact BluePLC Industrial. They can provide pricing, stock information, and replacement options if needed. Ordering from BluePLC Industrial ensures genuine Schneider parts and expert support.
