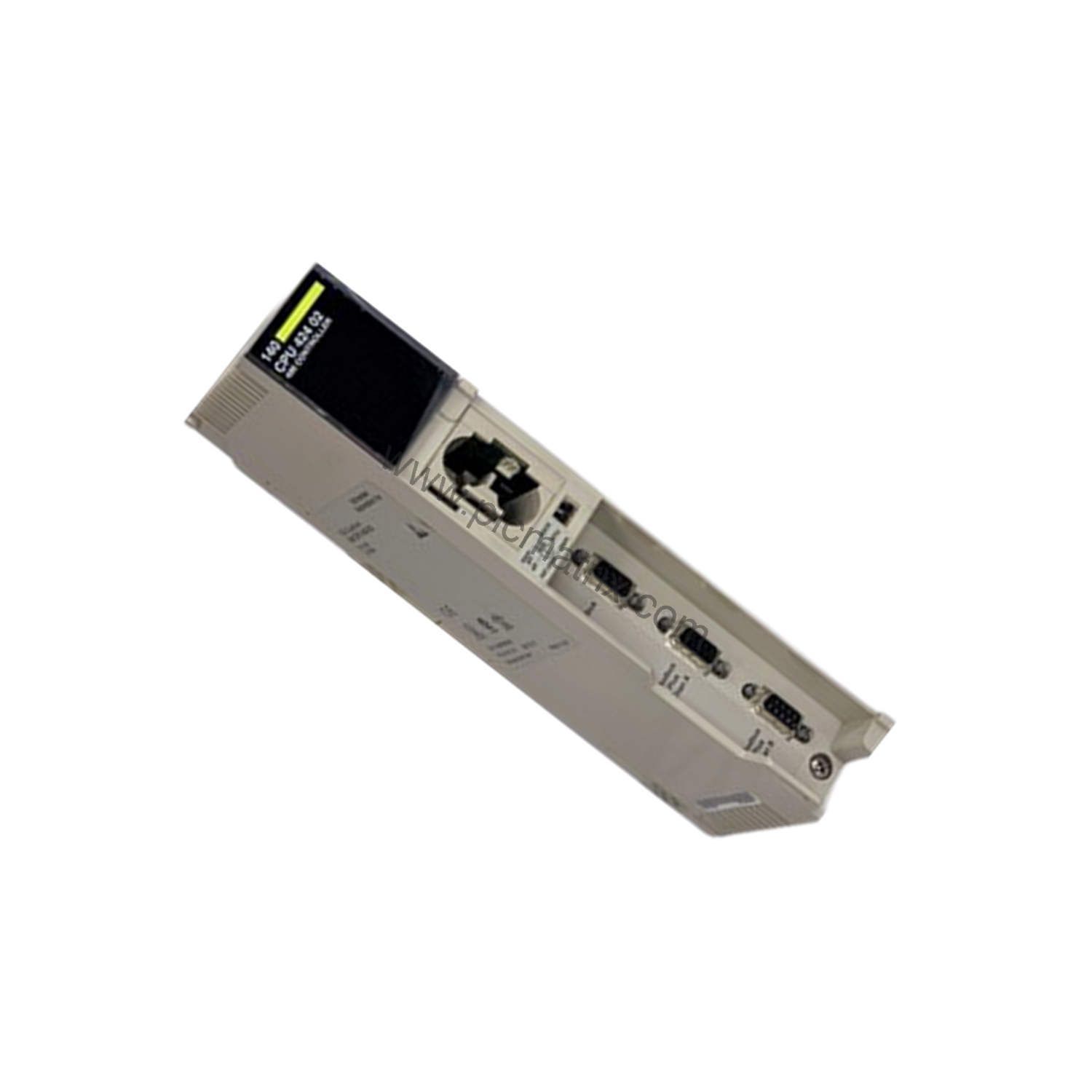

Schneider 140CPU42401C Modicon Quantum High-Performance CPU Module

Product Overview

When your control system demands reliable and rapid processing for complex automation tasks, the Schneider 140CPU42401C delivers. This high-performance CPU module from the Modicon Quantum series provides 1 MB of RAM and an integrated watchdog timer to ensure system integrity. It operates on a stable 5 V DC power supply and mounts directly into a rack for straightforward integration into existing setups. With both RS232 and Modbus Plus ports, it offers versatile communication options for diverse network architectures.

Technical Specifications Breakdown

The 140CPU42401C excels in several key areas. Its 1 MB RAM supports efficient data processing for medium to large control programs. The integrated watchdog timer continuously monitors system health, automatically triggering a safe state if the processor hangs, which minimizes downtime. An execution time of approximately 0.3 microseconds for Boolean instructions enables fast logic scanning, critical for time-sensitive applications. The module supports the full IEC 61131-3 instruction set, allowing programmers to use any of the five standard languages (Ladder Diagram, Function Block Diagram, Structured Text, Instruction List, and Sequential Function Chart). Built-in flash memory retains the program even without power, simplifying firmware updates and backup.

Industry Applications

This CPU module suits a wide range of industries. In manufacturing, it controls assembly lines and packaging machines where rapid Boolean processing and reliable communication are essential. In water and wastewater treatment plants, it manages pump sequencing and valve control, benefiting from its conformal coating that protects against humidity and corrosive gases. For material handling systems, the 140CPU42401C coordinates conveyor belts and sorters, leveraging its local and remote I/O compatibility to distribute control across large facilities.

Installation & Setup Guidance

Mount the 140CPU42401C into a Quantum rack by aligning it with the backplane connector and securing it with the locking screws. Ensure the rack provides a stable 5 V DC supply to the module. Connect the RS232 port to programming devices or HMIs, and the Modbus Plus port to other Modbus Plus nodes for peer-to-peer communication. Configure the CPU using Schneider Electric's Unity Pro or Concept software, selecting the appropriate IEC 61131-3 language for your application. Verify that the operating environment stays within 0…60°C to maintain reliable performance.

Maintenance & Reliability

The conformal coating on the 140CPU42401C protects against dust, moisture, and chemical vapors, extending service life in harsh environments. Periodically inspect the module for signs of overheating or physical damage. Check that the rack's power supply remains stable at 5 V DC. The integrated watchdog timer provides automatic fault detection, but regularly review system logs to catch intermittent issues early. Following these practices helps maximize uptime and reduce total cost of ownership.

Compatibility & Integration

The 140CPU42401C works seamlessly with local and remote I/O modules in the Modicon Quantum family. It communicates via the built-in RS232 port for direct programming and HMI connections, and the Modbus Plus port for networking with other controllers, drives, and SCADA systems. This flexibility allows integration into both new installations and legacy upgrades without major rewiring.

Selection Guide & Purchasing Advice

Before ordering the 140CPU42401C, confirm that your rack has an available slot and that your power supply can deliver 5 V DC. Verify that your programming software version supports this CPU revision. For current lifecycle status and availability, contact BluePLC Industrial. We stock this module and can advise on compatible accessories to ensure a smooth deployment.
