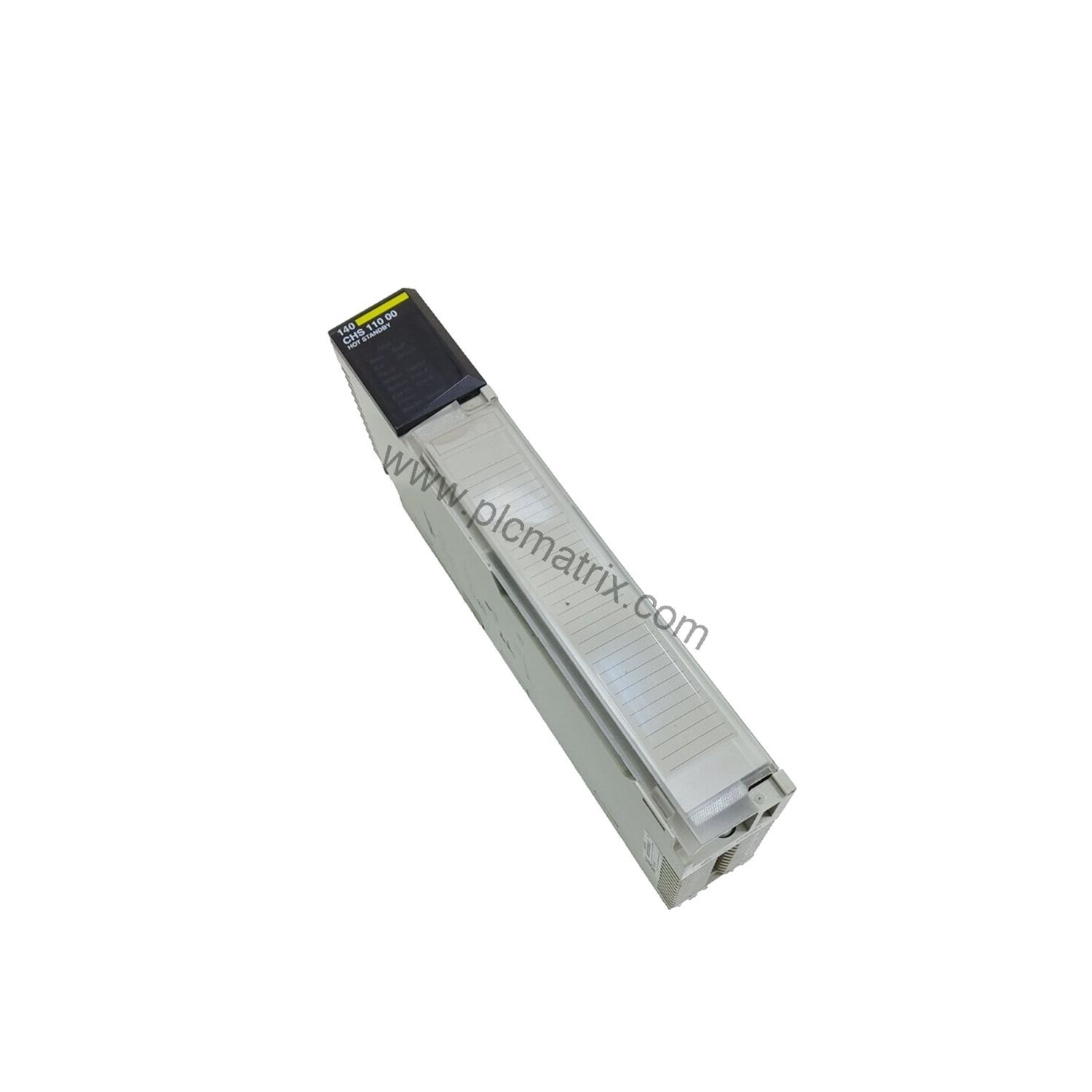

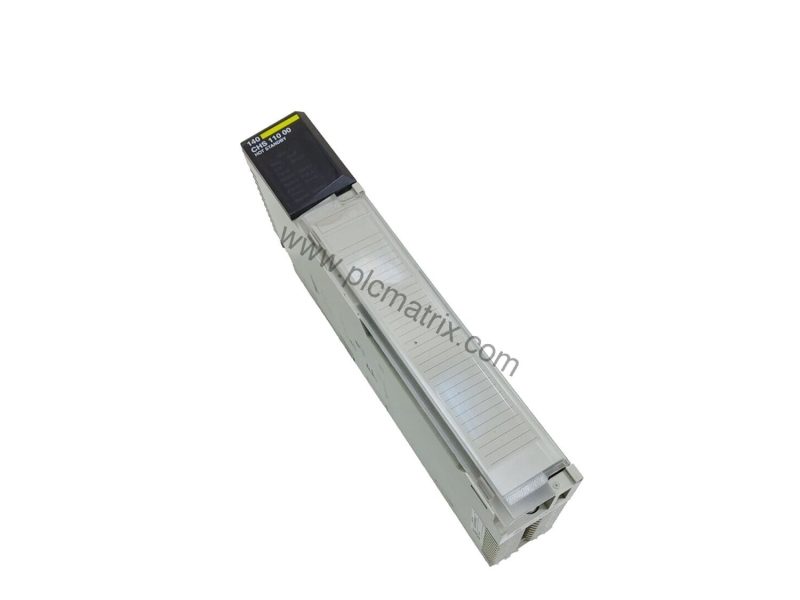

Schneider 140CHS41010 Modicon Quantum Hot Standby Kit for Redundancy

Product Overview

When system downtime is unacceptable, the Schneider Electric 140CHS41010 provides a complete hot standby solution for Modicon Quantum automation platforms. This kit includes all essential components to build a redundant control system that ensures seamless operation in critical applications. Designed for high availability, the 140CHS41010 minimizes production interruptions and protects against single-point failures.

Technical Specifications Breakdown

The kit includes two 140CPU11302 Quantum CPUs for processing tasks, ensuring that if one processor fails, the other takes over without data loss. Two 140CRP93101 Remote I/O Processors manage input and output functions, maintaining communication with remote racks. The package also contains two 140XBP00600 backplanes for module connectivity and two 140CPS11100 power supplies for redundant power delivery. A 3-meter fiber optic hot standby cable connects the primary and standby systems, while the S908 terminator kit ensures reliable network termination. Operating temperature ranges from 0 to 40 degrees Celsius, with storage from 0 to 50 degrees Celsius. Maximum humidity is 80% RH non-condensing for both operating and storage conditions.

Industry Applications

In manufacturing plants where continuous production is critical, the 140CHS41010 provides automatic failover to prevent costly shutdowns. For water treatment facilities, the redundant architecture ensures that control systems remain operational during maintenance or unexpected failures. The kit's robust environmental specifications make it suitable for industrial environments with moderate temperature and humidity variations.

Installation & Setup Guidance

Install the backplanes in a standard Quantum rack enclosure. Mount the CPUs, remote I/O processors, and power supplies onto the backplanes according to the included installation manual. Connect the fiber optic hot standby cable between the primary and standby systems to enable synchronization. Terminate the network using the S908 terminator kit. Ensure proper ventilation to maintain operating temperature within 0 to 40 degrees Celsius. Verify all connections before powering up the system.

Maintenance & Reliability

Regularly inspect the fiber optic cable for damage or kinks that could affect signal integrity. Check power supply LEDs to confirm redundancy is active. Monitor ambient temperature and humidity to stay within 0 to 40 degrees Celsius and 80% RH non-condensing. Periodically test failover functionality by simulating a primary CPU shutdown. Keeping spare components on hand can further reduce downtime.

Compatibility & Integration

The 140CHS41010 is designed for the Modicon Quantum series from Schneider Electric. It integrates with Quantum backplanes, remote I/O processors, and power supplies included in the kit. The hot standby processors (140CHS11000) enable seamless transition between primary and standby units. The fiber optic cable supports reliable high-speed communication between redundant systems. The kit is compatible with other Quantum modules and accessories for expanded functionality.

Selection Guide & Purchasing Advice

Before purchasing, verify that your existing system uses Modicon Quantum components and that the included 140CPU11302 CPUs meet your processing requirements. Confirm that the operating environment stays within 0 to 40 degrees Celsius and 80% RH. The kit includes all necessary components for a basic redundant setup, but additional I/O modules may be required for your specific application. BluePLC Industrial offers the 140CHS41010 as a reliable source for building or upgrading redundant control systems. Please verify current lifecycle status and availability with BluePLC Industrial before ordering.
